499-91-216-10-003: Descriptionpcb connectors 2.54 mm single row / double row solder tail; File Size42KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

499-91-216-10-003 Overview

pcb connectors 2.54 mm single row / double row solder tail

Preview

Download Datasheet

View All

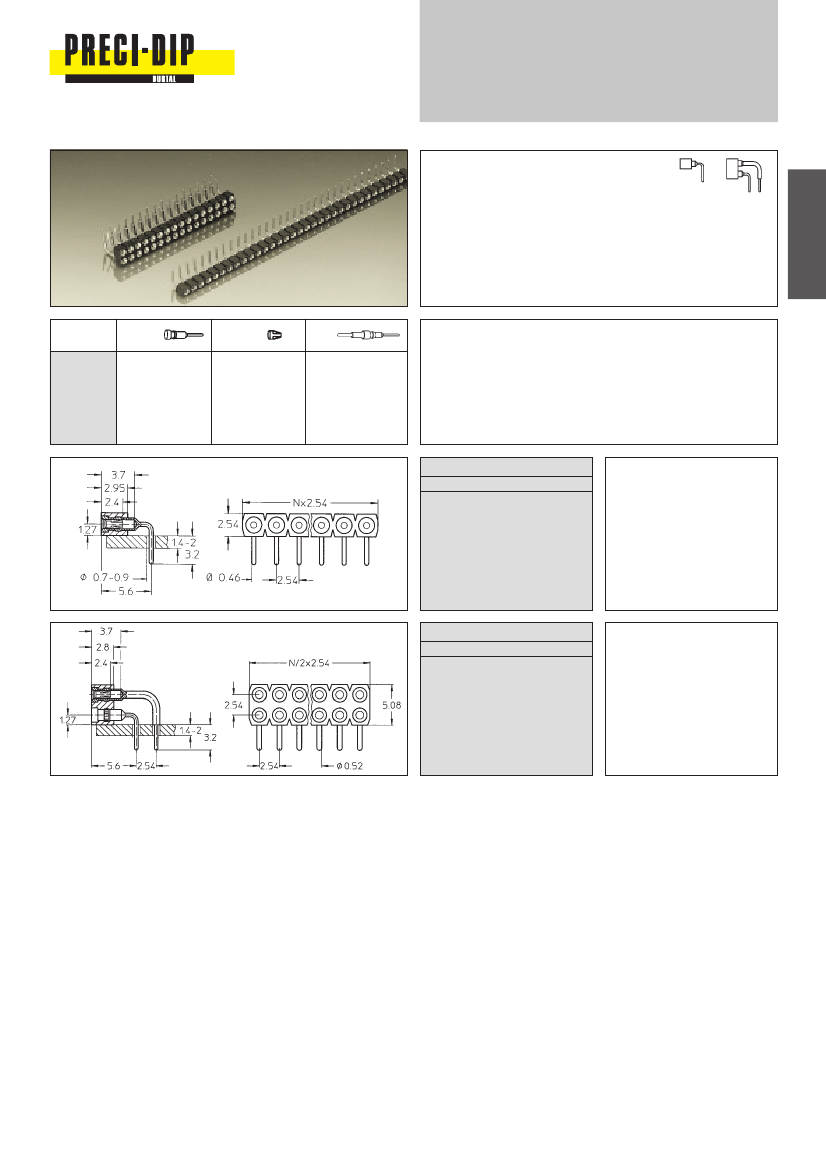

Series 399 / 499

PCB connectors 2.54 mm

Single row / double row

Solder tail

39

Right angle receptacles, solder tail

Receptacles accept pins

∅

0.40–0.56 mm

For corresponding connectors see pages 43 to 46

Platings

91

93

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0,25

µm

Au

0,75

µm

Au

Ordering information

Replace

xx

with the number of poles, e.g. 499-93-2xx-10-003

for a double row version with 8 pins per row becomes:

499-93-216-10-003

399-91-1xx-10-003

399-93-1xx-10-003

Right angle receptacle: single row

Availability from: 1 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

499-91-2xx-10-003

499-93-2xx-10-003

Right angle receptacle: double

row

Availability from: 4 to 72 contacts

Standard number of contacts 40,

44, 56, 64, 72

499-91-216-10-003 Related Products

	499-91-216-10-003	399-91-116-10-003	399-93-116-10-003	499-93-216-10-003
Description	pcb connectors 2.54 mm single row / double row solder tail	pcb connectors 2.54 mm single row / double row solder tail	pcb connectors 2.54 mm single row / double row solder tail	pcb connectors 2.54 mm single row / double row solder tail
