SD-500024-018 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > SD-500024-018

Preview

SD-500024-018: Description0.40mm (.016") pitch board-to-board slimstack receptacle, surface mount, dual row; File Size363KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

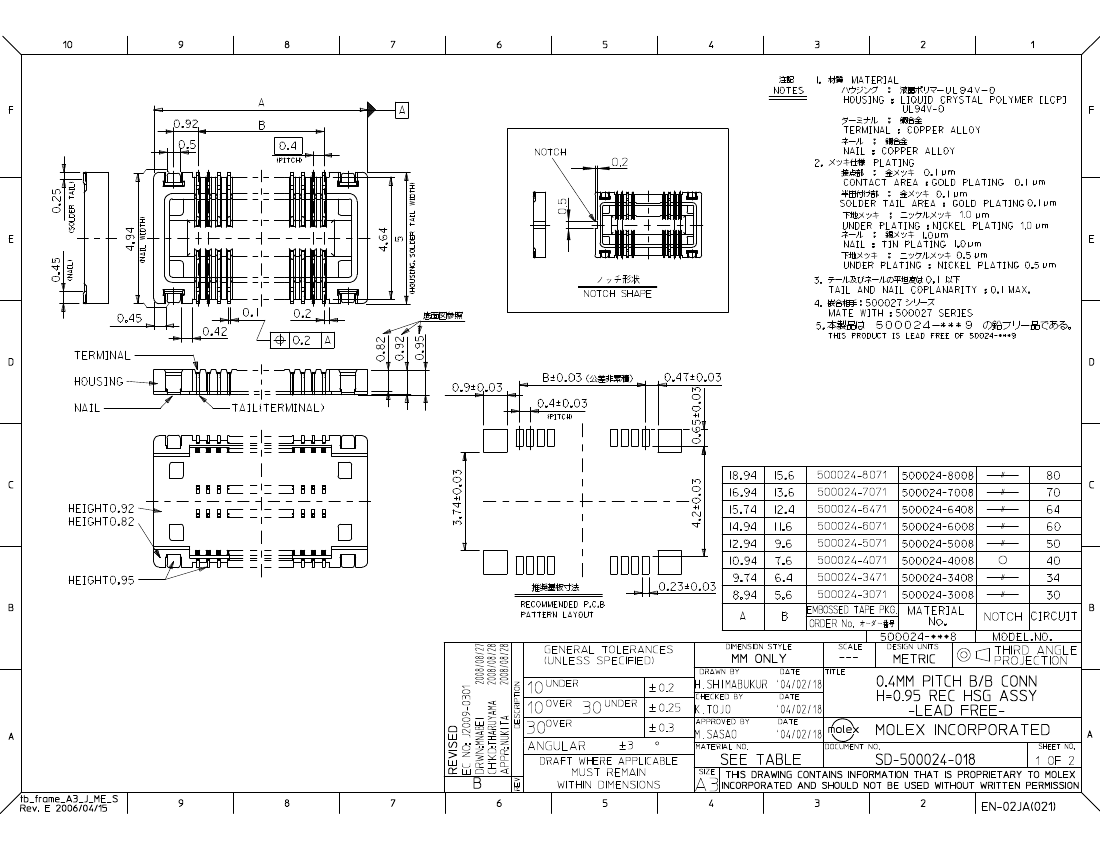

SD-500024-018 Overview

0.40mm (.016") pitch board-to-board slimstack receptacle, surface mount, dual row

Preview

Download Datasheet

View All

This document was generated on 04/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5000246471

Active

0.40mm (.016") Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual

Row, Vertical, 0.95mm (.037") Mated Height, without Friction Lock, 64 Circuits, Lead-

free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-500024-008 (PDF)

Product Specification PS-500024-011 (PDF)

RoHS Certificate of Compliance (PDF)

Series

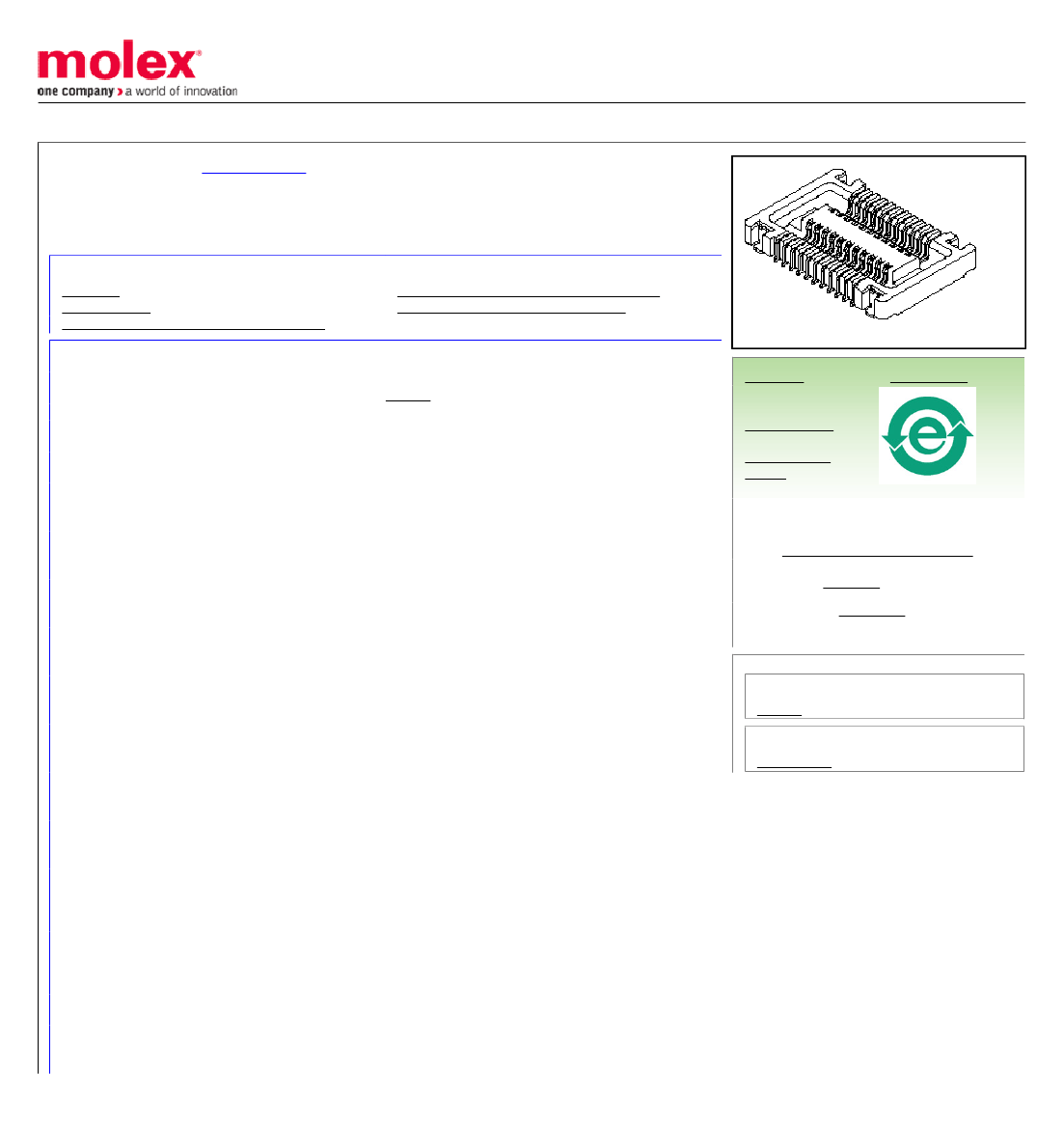

image - Reference only

General

Product Family

Series

Application

Comments

Product Name

PCB Receptacles

500024

Board-to-Board

Solder Tab Plating: Lead-Free, Tin

SlimStack™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

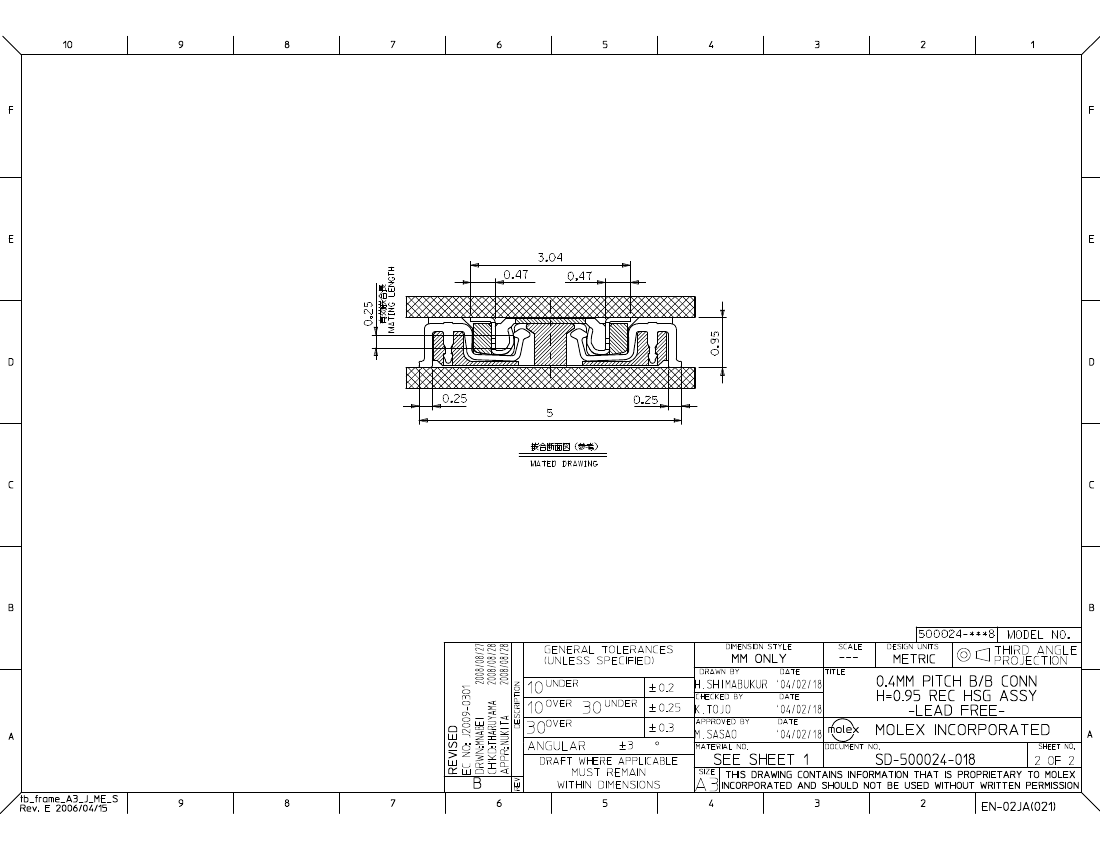

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

None

0.037 In

0.95 mm

Phosphor Bronze

Gold

High Temperature Thermoplastic

Vertical

Yes

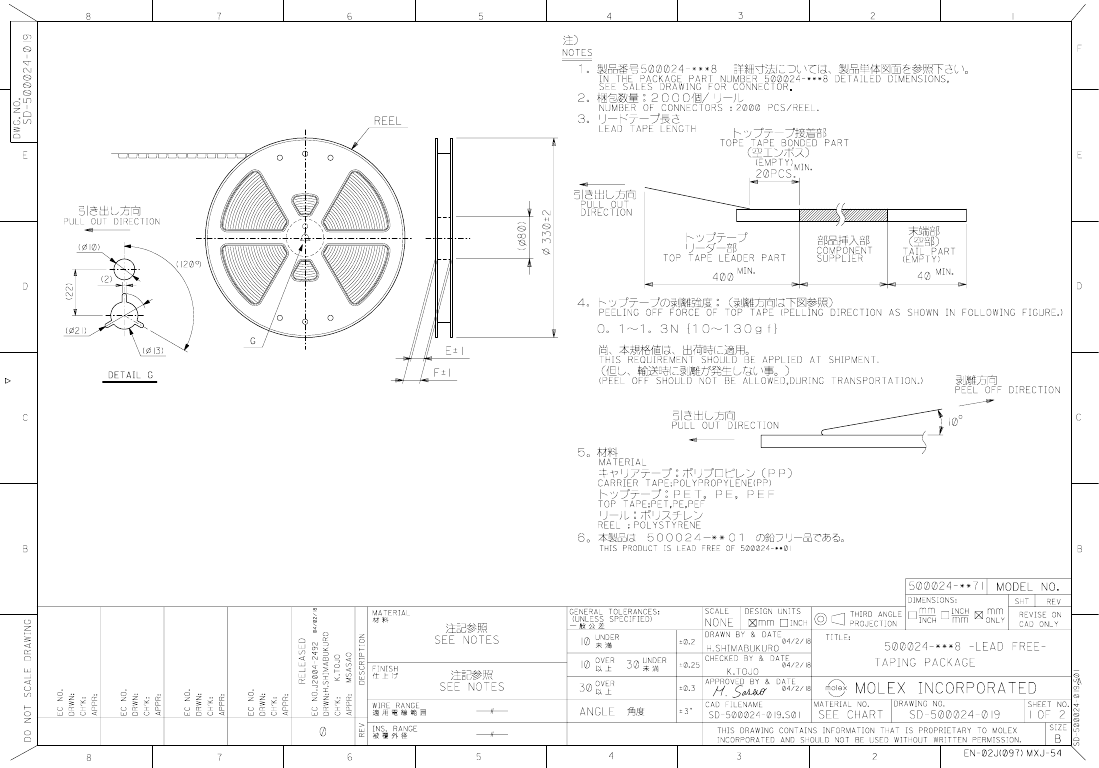

Embossed Tape on Reel

0.016 In

0.40 mm

0.1

0.05

N/A

-25°C to +85°C

Surface Mount

Search Parts in this Series

500024Series

Mates With

5000276442

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.1A

50V

Material Info

Reference - Drawing Numbers

Product Specification

PS-500024-008, PS-500024-011, RPS-500024-019,

RPS-500024-020, RPS-500024-023, RPS-500024-025,

RPS-500024-026, RPS-500024-030, RPS-500024-031,

SD-500024-018 Related Products

	SD-500024-018	SD-500024-019
Description	0.40mm (.016") pitch board-to-board slimstack receptacle, surface mount, dual row	0.40mm (.016") pitch board-to-board slimstack receptacle, surface mount, dual row
