51239-1205 Overview

Combination Line Connector,

Preview

Download Datasheet

View All

This document was generated on 04/06/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0512391203

Active

CRC™ Shielded Rectangular I/O Plug Housing, For Plug Assembly, Female Terminal,

Signal, 12 Circuits, Polarization Type B, Polarization Position B-3

Documents:

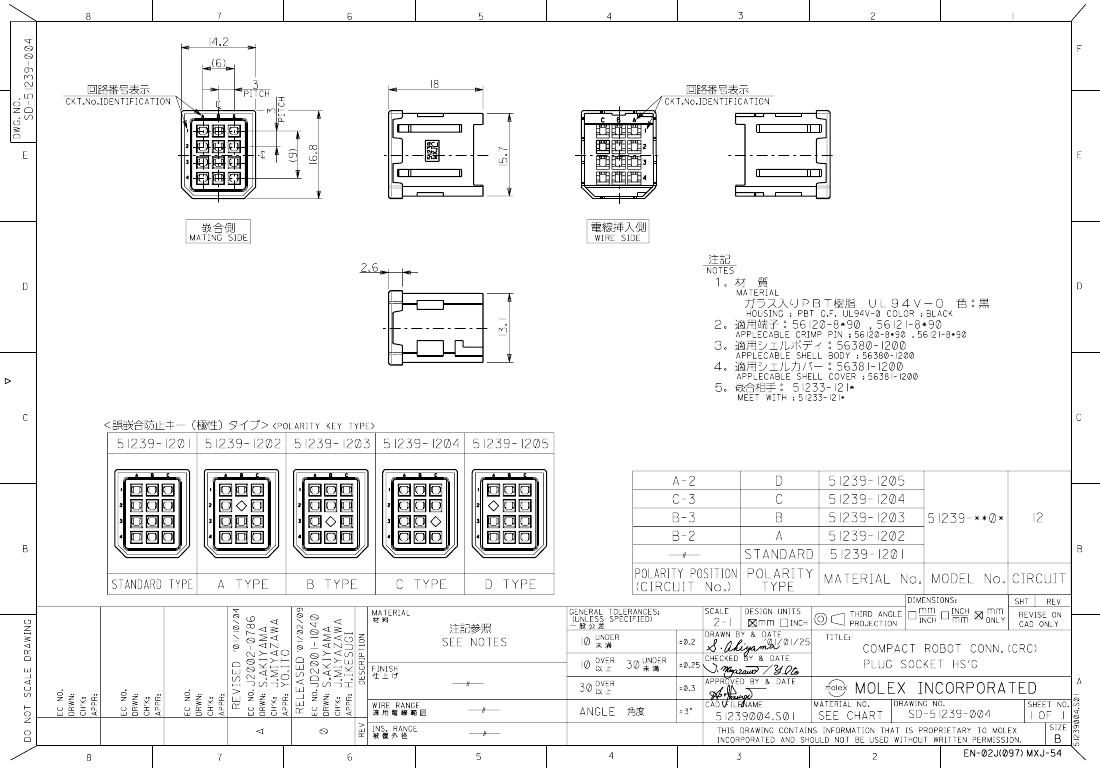

Drawing (PDF)

Product Specification PS-51238-010 (PDF)

Product Specification PS-51238-018 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

51239

N/A

Housing

CRC™

N/A

Physical

Boot Color

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PCB Locator

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Black

94V-0

Plug

Yes

n/a

Polyester

Vertical

Tray

N/A

0.118 In

3.00 mm

0.118 In

3.00 mm

Yes

N/A

-40°C to +105°C

N/A

Search Parts in this Series

51239Series

Mates With

51233

Use With

56380 plug shell body, 56120 and 56121

female terminal, 56381 plug shell cover

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

N/A

250V AC (RMS)/DC

Material Info

51239-1205 Related Products

	51239-1205	0512391203	51239-1203	51239-1202
Description	Combination Line Connector,	CRCâ¢ Shielded Rectangular I/O Plug Housing, For Plug Assembly, Female TerminalSignal, 12 Circuits, Polarization Type B, Polarization Position B-3	Combination Line Connector,	Combination Line Connector,
