5120643-1 datasheet, PDF - EEWORLD Datasheet

5120643-1: Description2mm HM hdr asy,12 row 072 R H; CategoryThe connector; File Size150KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5120643-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5120643-1	-	-	View	Buy Now

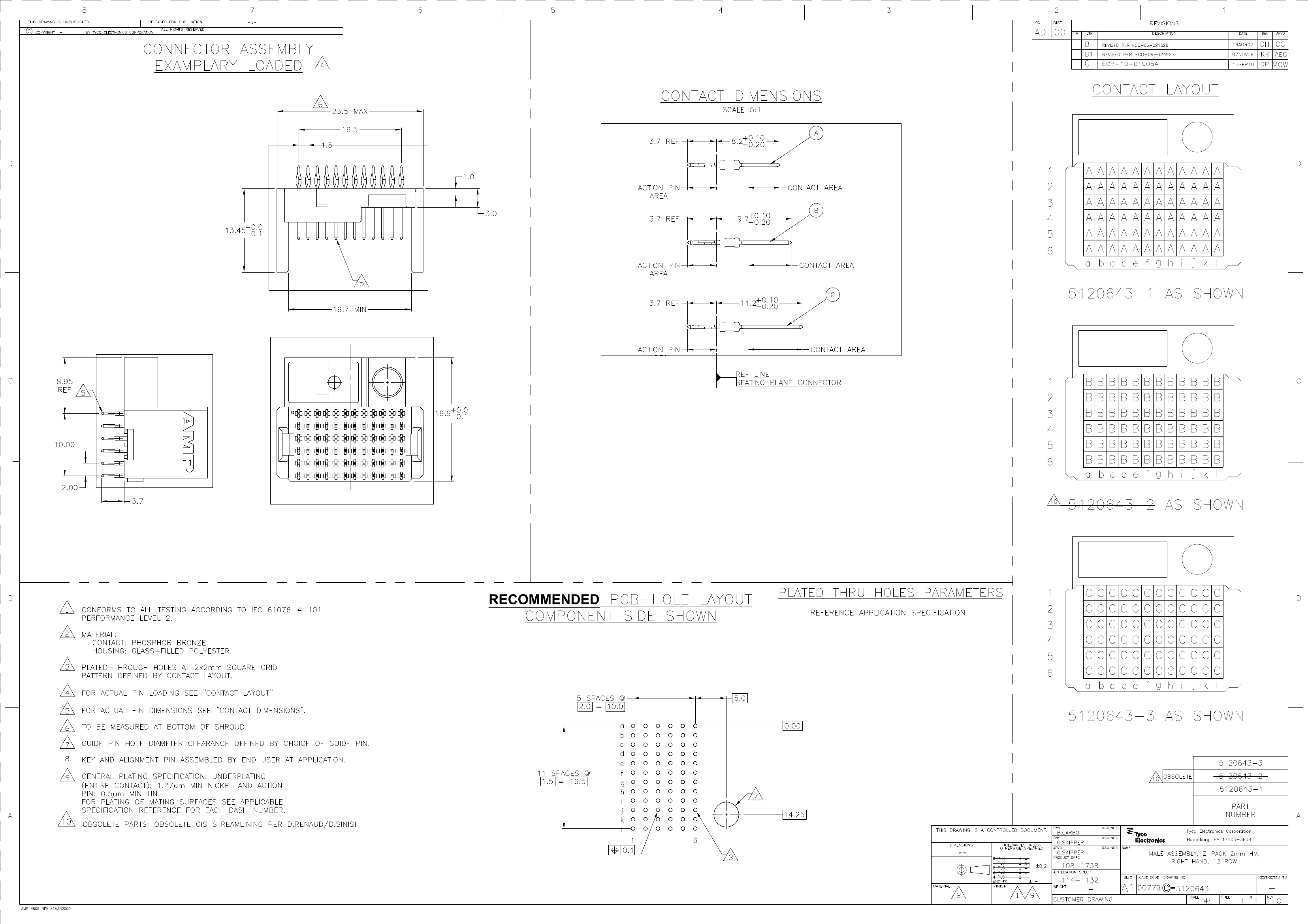

2mm HM hdr asy,12 row 072 R H

Parameter Name	Attribute value
Datasheets
5120643
RoHS Informati
5120643-1 Statement of Compliance
RoHS 2 Stateme
3D Model
5120643-1.pdf
Standard Package	243
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Plug, Male Pins
Connector Style	B 6
Number of Positions	72
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	12
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	-
Contact Finish	Gold
Contact Finish Thickness	-
Current Rating	-
Voltage Rating	-
Operating Temperature	-55°C ~ 105°C
Features	Mating Guide (Right)
Mating Products	5120641-1-ND - 12 ROW HM RA REC ASY 072P RGHT

	5120643-1	5120643-3
Description	2mm HM hdr asy,12 row 072 R H	2mm HM hdr asy,12 row 072 R H
Standard Package	243	225
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard
Packaging	Tube	Tube
Connector Type	Plug, Male Pins	Plug, Male Pins
Connector Style	B 6	B 6
Number of Positions	72	72
Number of Positions Loaded	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	12	12
Mounting Type	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi
Contact Finish	Gold	Gold
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Features	Mating Guide (Right)	Mating Guide (Right)
Mating Products	5120641-1-ND - 12 ROW HM RA REC ASY 072P RGHT	5120641-1-ND - 12 ROW HM RA REC ASY 072P RGHT
