511-97-108-12-051-001 datasheet, PDF

Datasheet> All Categories > 511-97-108-12-051-001

Preview

511-97-108-12-051-001: Descriptionpin grid array sockets solder tail; File Size34KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet View All

511-97-108-12-051-001 Overview

pin grid array sockets solder tail

Preview

Download Datasheet

View All

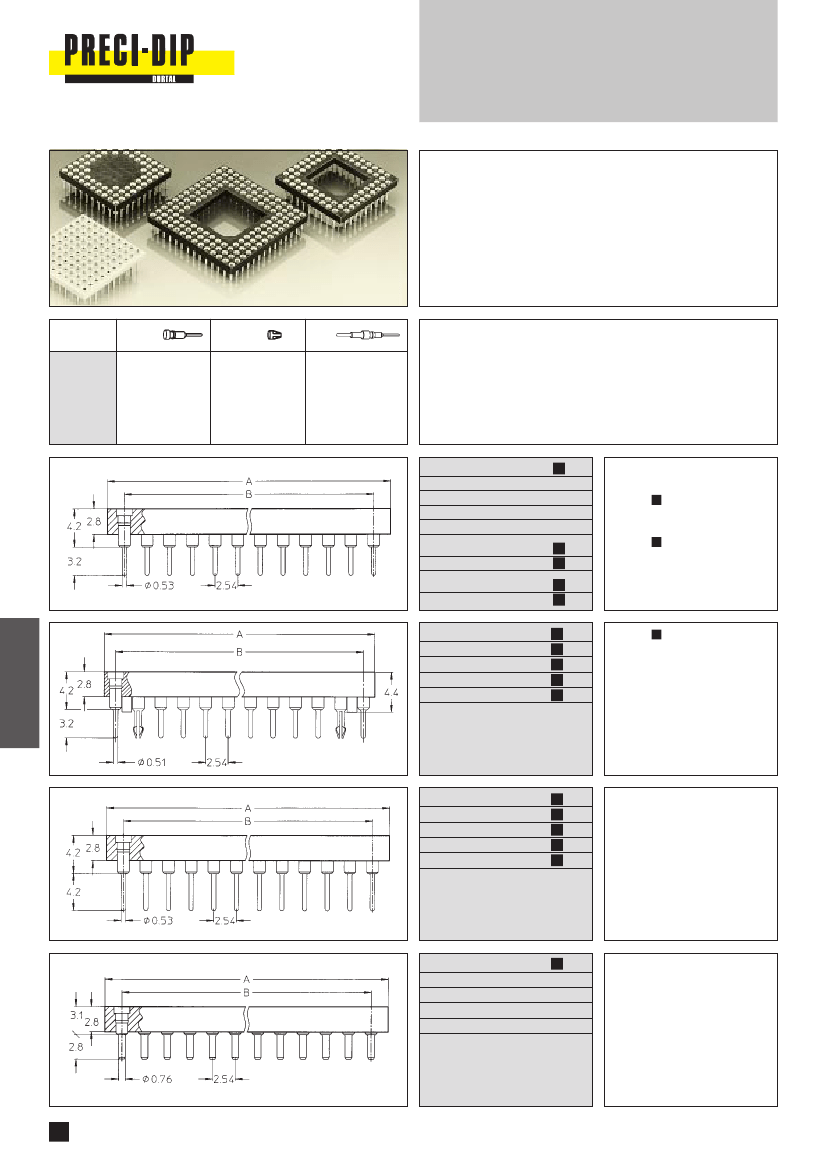

Series 510 / 511 / 515

Pin grid array sockets

Solder tail

Pin grid array sockets, standard solder version

PGA sockets are high density connecting devices equipped with

machined precision contacts with soft contact clips assuring low

insertion/withdrawal forces. Over 200 standard pinouts are

available; inquiries for custom varieties are welcome

Insertion characteristics: 6-finger low, very low or ultra low force

Platings

Sleeve

0.25

µm

5.0

µm

5.0

µm

5.0

µm

5.0

µm

Clip

0.75

µm

0.25

µm

0.75

µm

Goldflash

5.0

µm

Ordering information

Replace

xxx-xx-xxx

with the number of poles, body size and lay-

out numbers as indicated on pages 88 to 92. For example, a 12×12

pin configuration with window and 108 standard soldering

contacts as shown on page 88 becomes: 510-93-108-12-051-001

Machined epoxy insulator for extra sturdiness and low profile appli-

cations; solder and wire-wrap terminations only: please consult for

availability and specifications

510-13-xxx-xx-xxx-001

510-91-xxx-xx-xxx-001

510-93-xxx-xx-xxx-001

510-97-xxx-xx-xxx-001

510-99-xxx-xx-xxx-001

510-93Bxxx-xx-xxx-001

510-97Bxxx-xx-xxx-001

510-93Cxxx-xx-xxx-001

510-97Cxxx-xx-xxx-001

510-13-xxx-xx-xxx-001

510-91-xxx-xx-xxx-001

510-93-xxx-xx-xxx-001

510-97-xxx-xx-xxx-001

510-99-xxx-xx-xxx-001

PGA sockets with standard solder

tails, length 3.2 mm

Option:

PGA sockets with optional stand-

offs, please consult for availability

Option:

PGA sockets with standard solder

tail length 3.2 mm and very low

force (B) or ultra low force (C) clips

Option:

PGA sockets with standard solder

tails, length 3.2 mm, four optional

self clinching snap-in pins, and four

optional stand-offs.

Add

to fourth group of figures

in standard reference number, e.g.

510-93-108-12-051-001 becomes:

510-93-108-82-051-001

511-13-xxx-xx-xxx-001

511-91-xxx-xx-xxx-001

511-93-xxx-xx-xxx-001

511-97-xxx-xx-xxx-001

511-99-xxx-xx-xxx-001

PGA sockets with standard solder

tails, length 4.2 mm

515-13-xxx-xx-xxx-001

515-91-xxx-xx-xxx-001

515-93-xxx-xx-xxx-001

515-97-xxx-xx-xxx-001

515-99-xxx-xx-xxx-001

PGA sockets with low profile

contacts and solder tails of 2.8 mm

length

PGA sockets with ultra low profile

contacts please consult

Products not available from stock. Please consult PRECI-DIP.
