51112-0430 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51112-0430

51112-0430: Description2.50mm (.098") pitch wire-to-wire plug housing, with optional panel mount, panelmount, 4 circuits; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51112-0430 Overview

2.50mm (.098") pitch wire-to-wire plug housing, with optional panel mount, panelmount, 4 circuits

51112-0430 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	PANEL MOUNTABLE
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	51112
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

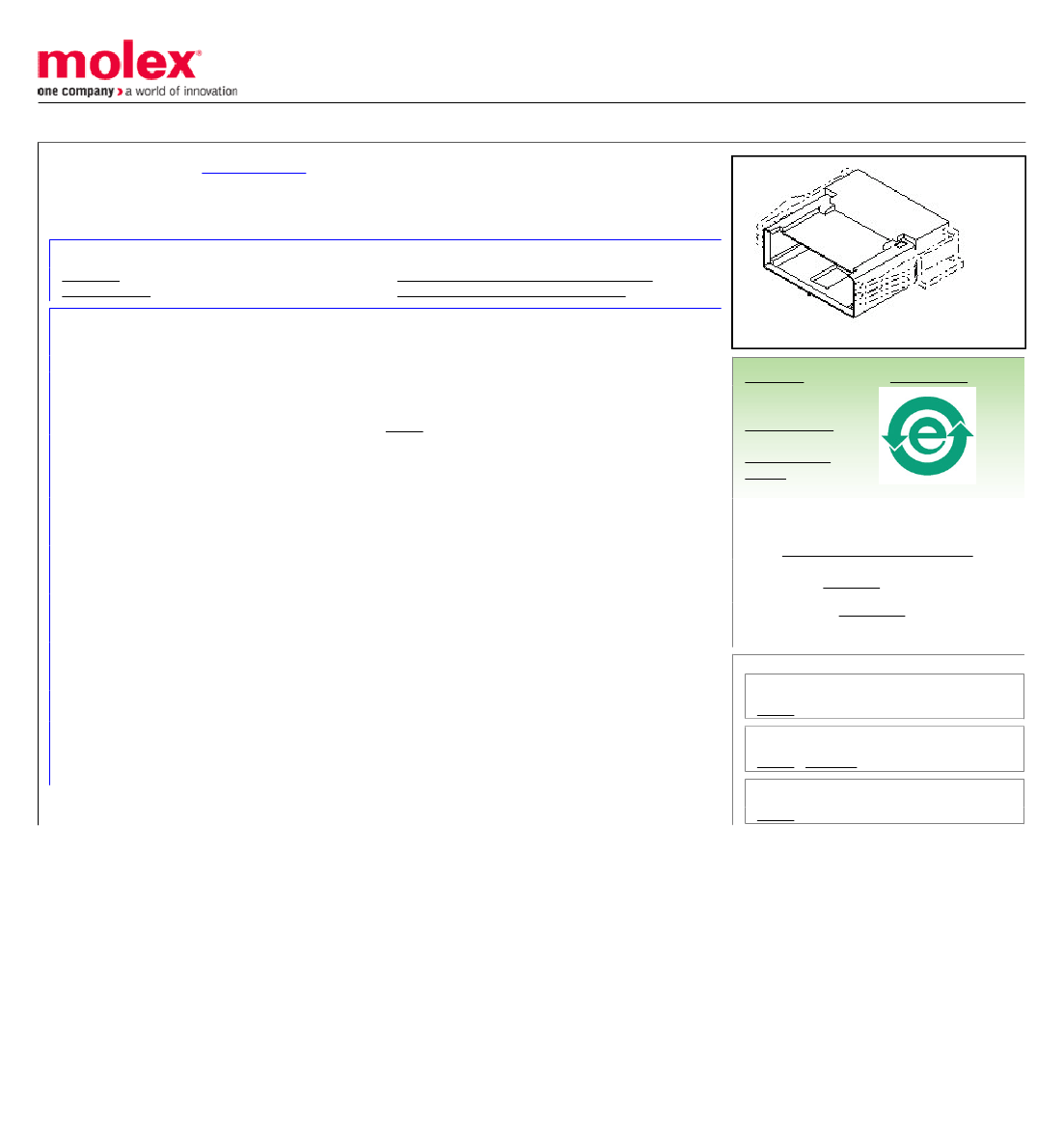

This document was generated on 03/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0511120230

Active

2.50mm (.098") Pitch Wire-to-Wire Plug Housing, With Optional Panel Mount, Panel

Mount, 2 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51111-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Product Name

Crimp Housings

51112

N/A

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Natural

94V-0

Male

Polyester

Bag

Yes

0.098 In

2.50 mm

-40°C to +105°C

Material Info

Reference - Drawing Numbers

Product Specification

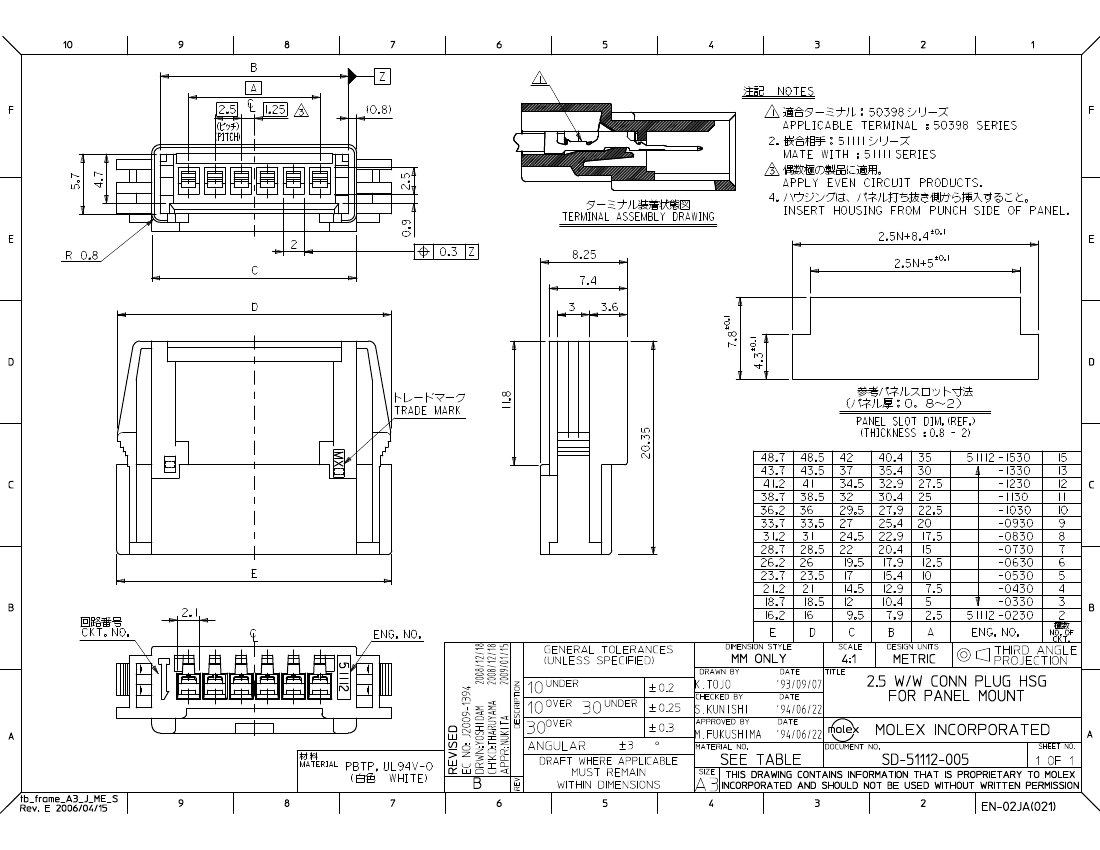

Sales Drawing

PS-51111-001

SD-51112-005

Search Parts in this Series

51112Series

Mates With

51111 , 51111wr

Use With

50398

This document was generated on 03/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

51112-0430 Related Products

	51112-0430	0511120230	51112-0230	51112-0330
Description	2.50mm (.098") pitch wire-to-wire plug housing, with optional panel mount, panelmount, 4 circuits	2 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP, PLUG	2.50mm (.098") pitch wire-to-wire plug housing, with optional panel mount, panel mount, 2 circuits	2.50mm (.098") pitch wire-to-wire plug housing, with optional panel mount, panelmount, 3 circuits
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	51112	51112	51112	51112
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	CRIMP	SOLDER	SOLDER
Total number of contacts	4	2	2	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
