51234-3004 datasheet, PDF - EEWORLD Datasheet

51234-3004: Descriptioncrc? shielded rectangular I/O plug housing, for plug assembly, male terminal, signal, 30 circuits, polarization type C, polarization position D-4; File Size151KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

51234-3004 Overview

crc? shielded rectangular I/O plug housing, for plug assembly, male terminal, signal, 30 circuits, polarization type C, polarization position D-4

Preview

Download Datasheet

View All

This document was generated on 04/06/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0512343003

Active

CRC™ Shielded Rectangular I/O Plug Housing, For Plug Assembly, Male Terminal,

Signal, 30 Circuits, Polarization Type B, Polarization Position C-4

Documents:

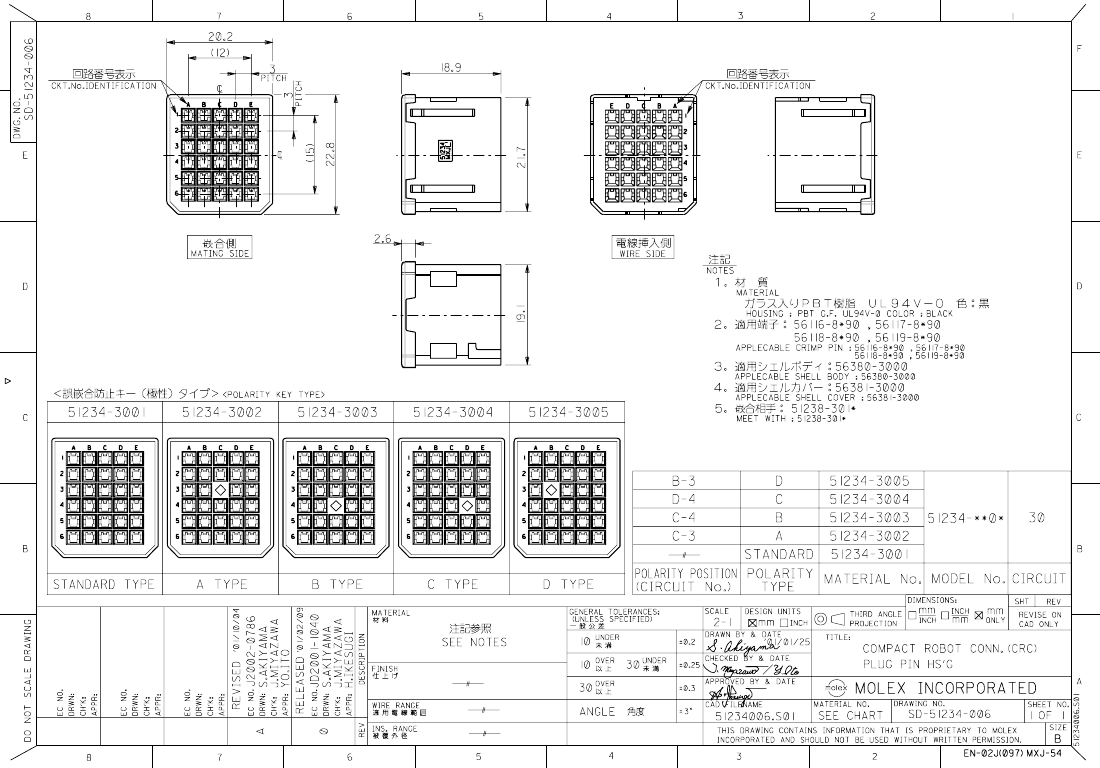

Drawing (PDF)

Product Specification PS-51238-010 (PDF)

Product Specification PS-51238-018 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

51234

N/A

Housing

CRC™

N/A

Physical

Boot Color

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Black

100

94V-0

Male

Yes

n/a

Polyester

Vertical

Tray

N/A

0.118 In

3.00 mm

0.118 In

3.00 mm

Yes

-40°C to +105°C

N/A

Search Parts in this Series

51234Series

Mates With

51238

Use With

56116, 56117, 56118 and 56119 male

terminal, 56380 plug shell body, 56381 plug

shell cover

Electrical

Current - Maximum per Contact

Shield Type

Shielded

Voltage - Maximum

1A, 2.5A, 2A, 3A

Full Shield

Yes

250V AC (RMS)/DC

Material Info
