Part Number

Search

51283-2016

Description
I/O connector 20ckt smt strt
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

51283-2016 Online Shopping

Suppliers Part Number Price MOQ In stock
51283-2016 - - View Buy Now

51283-2016 Overview

I/O connector 20ckt smt strt

51283-2016 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompli
ECCN codeEAR99
Samacsys DescriptiI/O Connectors 20CKT SMT STRT
Other featuresROHS COMPLIANT,TRAY PACKAGING
Board mount optionsPEG
body width0.276 inch
subject depth0.431 inch
body length0.492 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance50 mΩ
DIN complianceNO
Dielectric withstand voltage200VAC V
Durability5000 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force1.251 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED PLASTIC
MIL complianceNO
Manufacturer's serial number51283
Plug contact pitch0.02 inch
Plug information501014-2071
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature60 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.699 mm
Plating thickness4u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.75 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTAINLESS STEEL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts20
UL Flammability Code94V-0
Evacuation force-minimum value.139 N

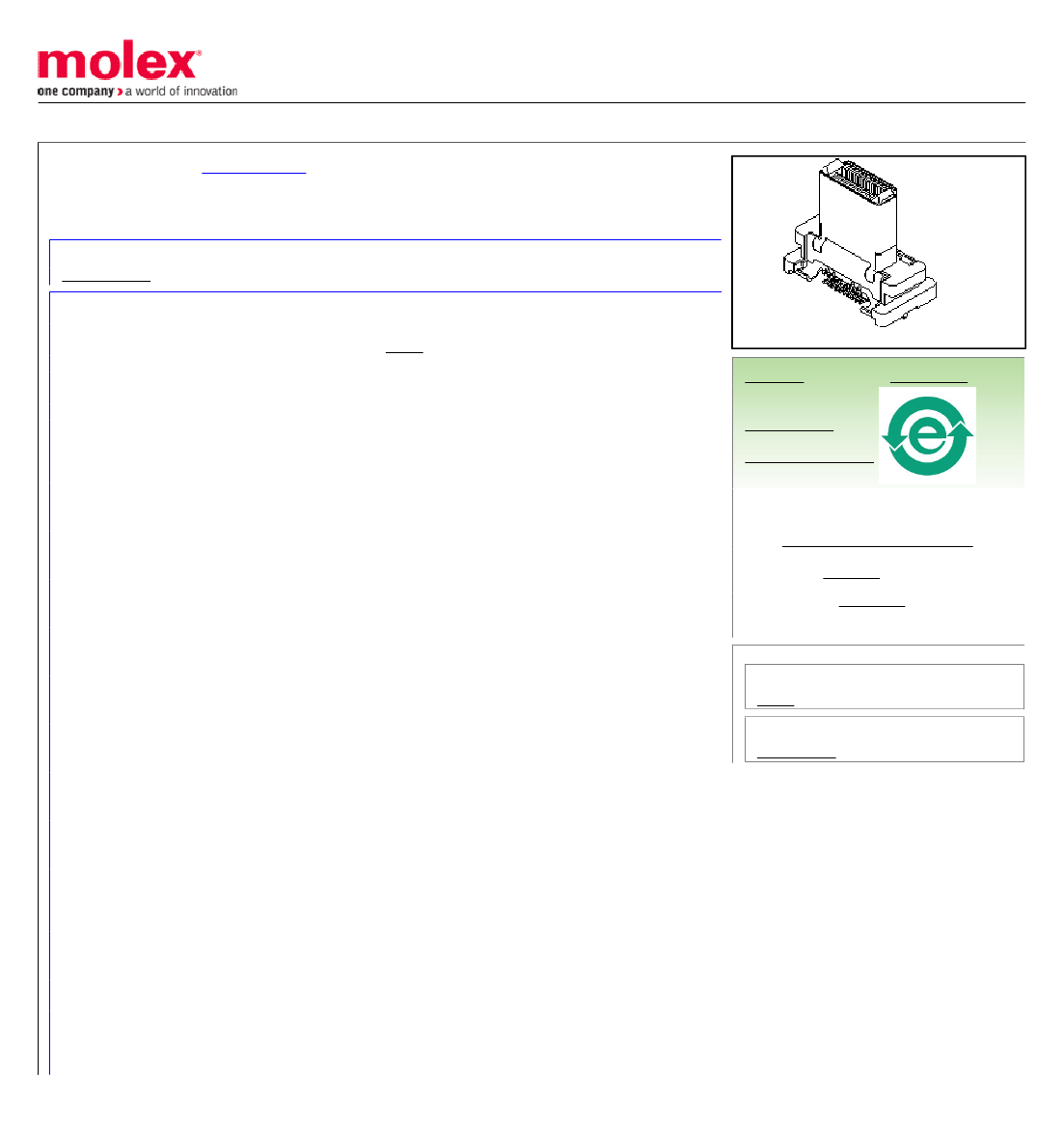

This document was generated on 11/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0512832016
Obsolete
0.50mm (.020") Pitch Cradlecon™ I/O Receptacle, SMT, Straight, 20 Circuits, without
Kapton Pick-and-Place tape, Soft Tray Type
Documents:
Drawing (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
I/O Connectors
51283
Board-to-Board
Receptacle
CradleCon™
N/A
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Gender
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
N/A
20
20
Black
Receptacle
Yes
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
2
Vertical
Yes
Yes
Tray
No
0.50mm (.020")
0.50mm (.020")
0.203µm (8µ")
0.508µm (20µ")
Yes
Yes
1
Yes
-20°C to +60°C
Surface Mount
No
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
51283Series
Mates With
501014-2071
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
0.75A
Full Shield
Yes
30V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-51283-001, RPS-51283-016
SD-51283-012
