52004-1710 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52004-1710

52004-1710: Description1.50mm (.059") pitch wire trap, push-cover style, vertical, 17 circuits; CategoryThe connector The connector; File Size182KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52004-1710 Overview

1.50mm (.059") pitch wire trap, push-cover style, vertical, 17 circuits

52004-1710 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	WIRE TRAP
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0520041710

Active

1.50mm (.059") Pitch Wire Trap, Push-Cover Style, Vertical, 17 Circuits

Documents:

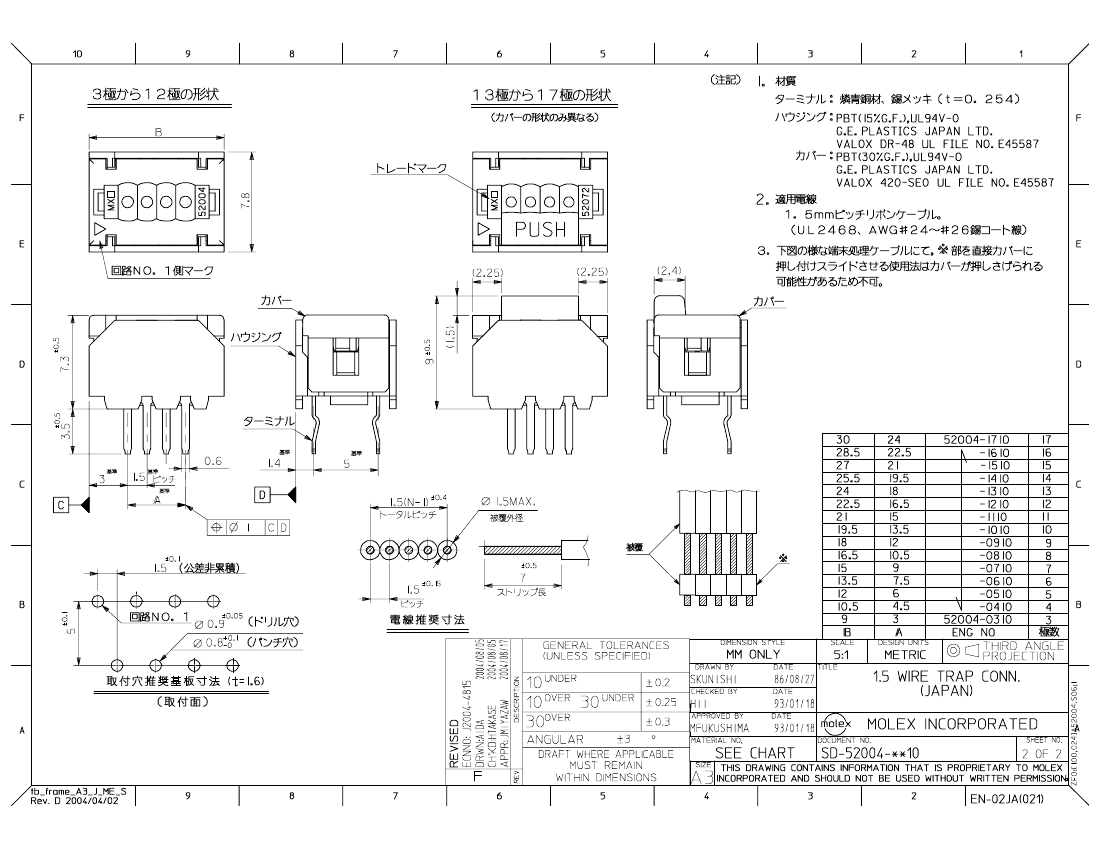

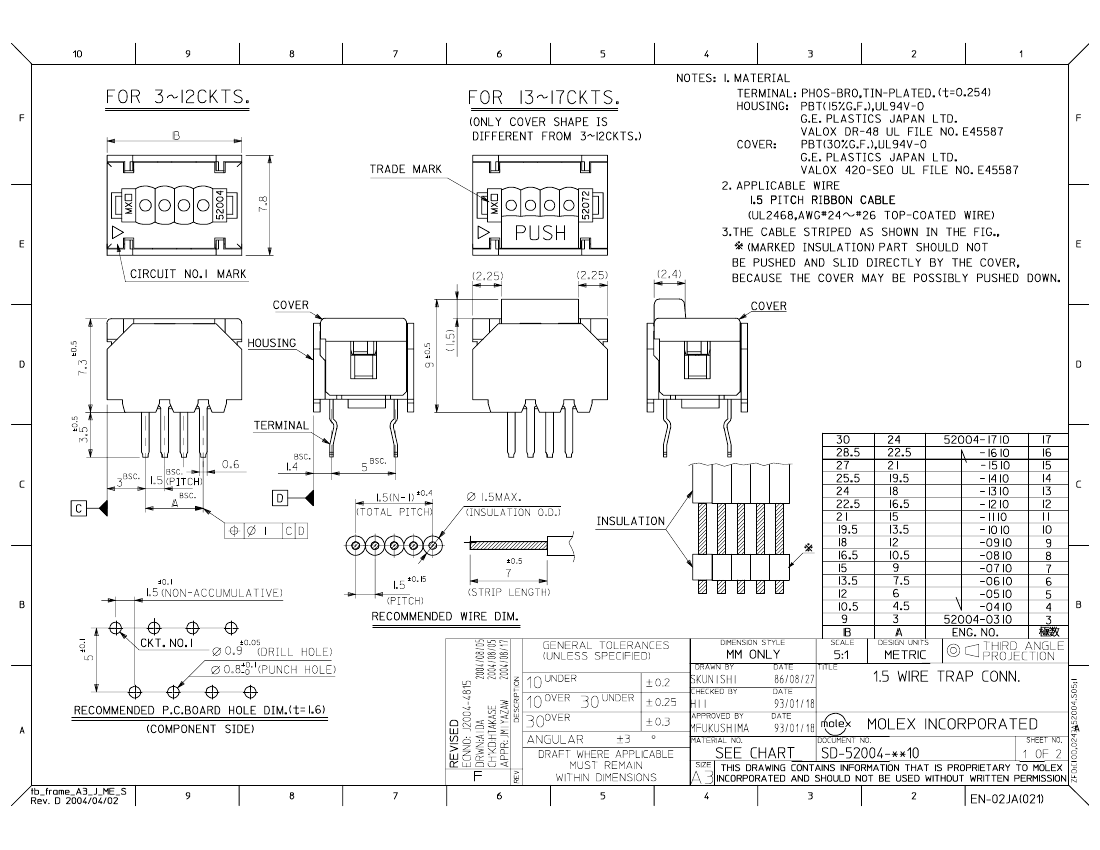

Drawing (PDF)

Product Specification PS-52004-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

52004

Push-Cover

One Piece

Board-In, Wire Trap

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Vertical

None

Yes

0.062 In

1.60 mm

Tray

0.059 In

1.50 mm

N/A

Yes

-40°C to +105°C

1.50mm (.059") max.

24, 26

Ribbon Cable

Search Parts in this Series

52004Series

Mates With

N/A

Use With

Topcoated ribbon cable

Electrical

Current - Maximum per Contact

Voltage - Maximum

2.5A

150V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-52004-001

SD-52004-**10

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

52004-1710 Related Products

	52004-1710	0520041710
Description	1.50mm (.059") pitch wire trap, push-cover style, vertical, 17 circuits	17 CONTACT(S), TWO PART BOARD CONNECTOR, IDC
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknow	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	BOARD	CABLE
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	WIRE TRAP	IDC
Total number of contacts	17	17
