52271-0890

Description
ffc/fpc connector RA smt zif bottom 8P
CategoryThe connector    The connector
File Size36KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52271-0890 Online Shopping

Suppliers Part Number Price MOQ In stock
52271-0890 - - View Buy Now

52271-0890 Overview

ffc/fpc connector RA smt zif bottom 8P

52271-0890 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresZIF, BOTTOM CONTACT STYLE
body width0.118 inch
subject depth0.213 inch
body length0.563 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance100000000 Ω
insulator materialGLASS FILLED NYLON
MIL complianceNO
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1FCC RETNN DVC
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts8
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N

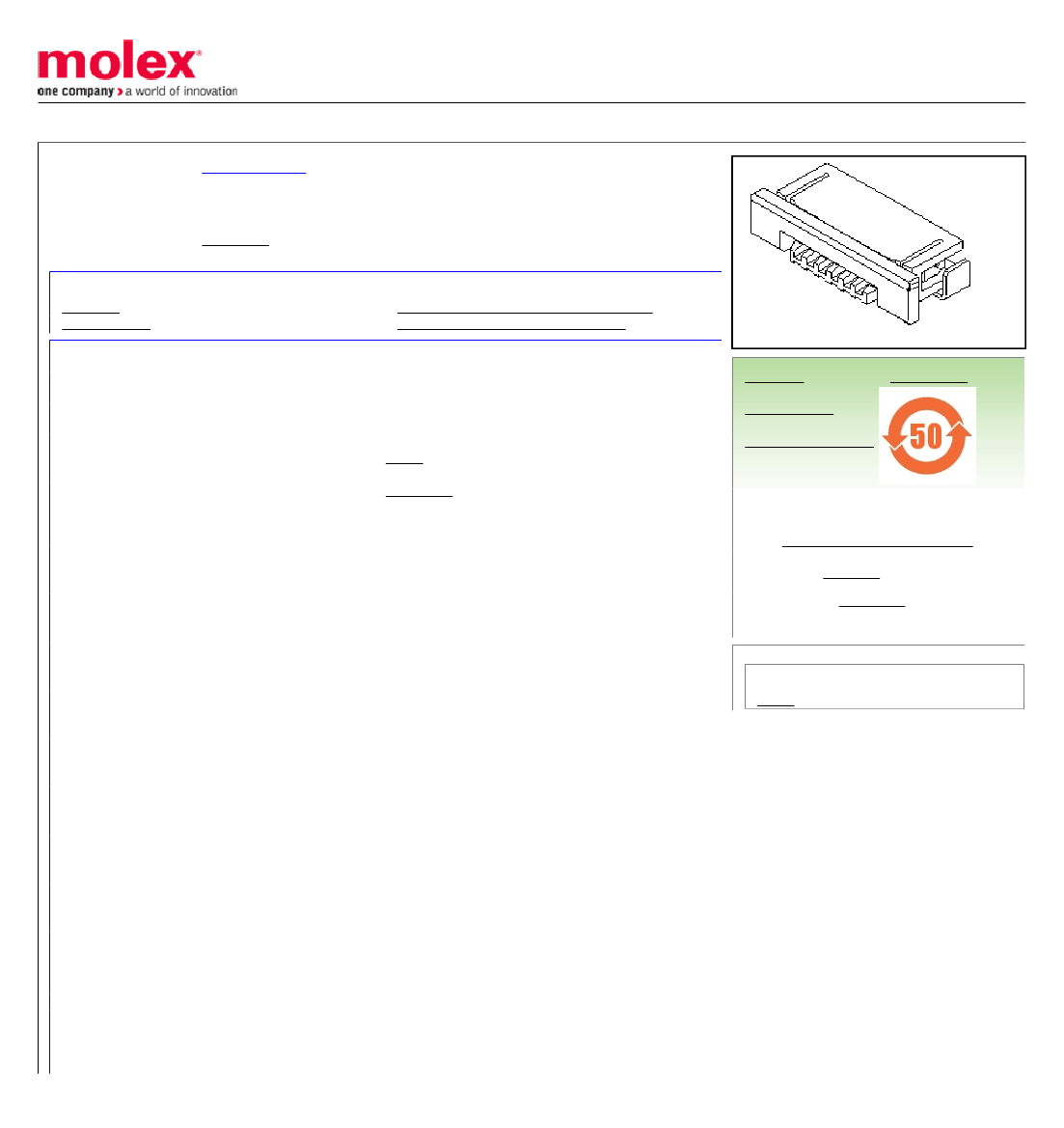

This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
3D Model
Drawing (PDF)
0522710890
Contact Molex
1.00mm (.039") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact
Style, 8 Circuits
522710879
Product Specification PS-52271-006 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Product Name
Replacement Part Number
FFC/FPC Connectors
52271
N/A
522710879
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
8
8
Natural
Bottom
30
90° Angle
94V-0
3.00mm (.118")
Phosphor Bronze
Tin-Lead
Tin-Lead
High Temperature Thermoplastic
1
Right Angle
No
None
Embossed Tape on Reel
1.00mm (.039")
1.00mm (.039")
3.048µm (120µ")
3.048µm (120µ")
No
No
Yes
-40°C to +85°C
Surface Mount
FFC/FPC
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52271Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V AC (RMS)/DC
Solder Process Data
Replacement RoHS Compliant Part Number
0522710879
