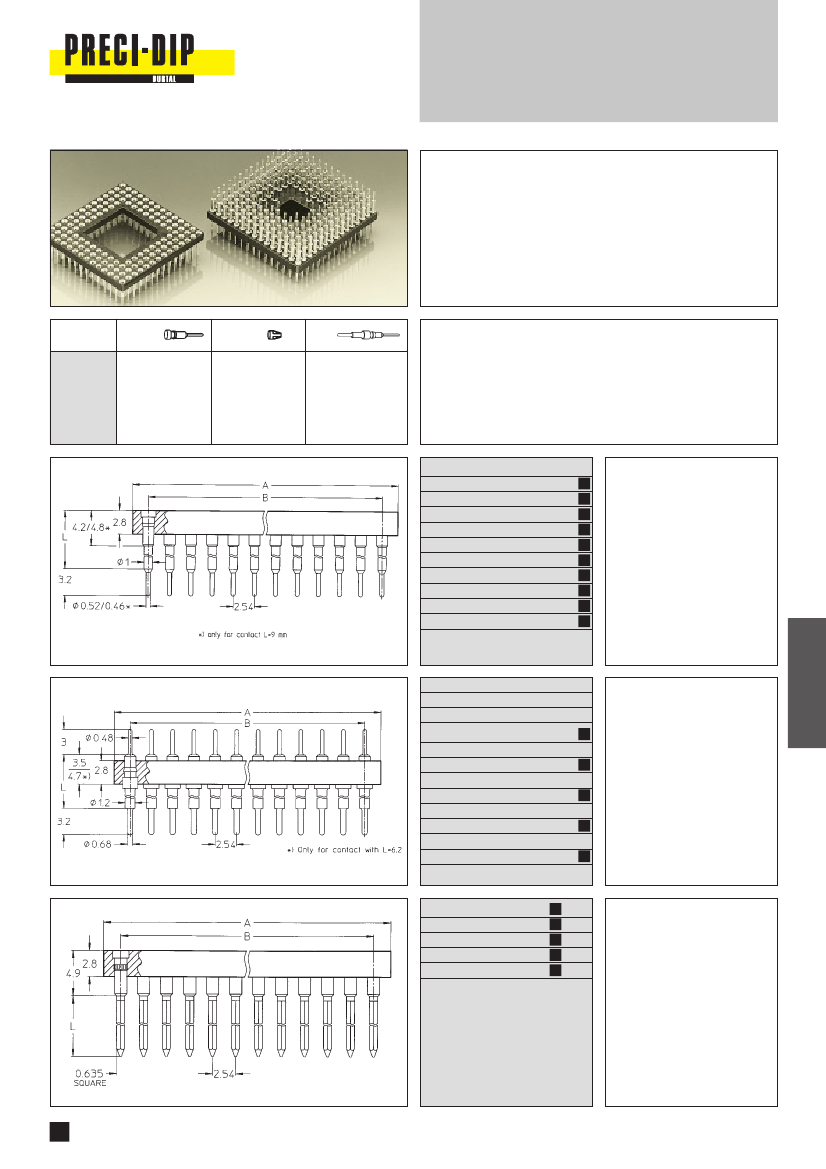

522-97-108-12-051-001: Descriptionpin grid array sockets / interconnect receptacle and pin / solder tail receptacle with wire-wrap posts; File Size63KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet View All

522-97-108-12-051-001 Overview

pin grid array sockets / interconnect receptacle and pin / solder tail receptacle with wire-wrap posts

Preview

Download Datasheet

View All

Series 516 / 52X / 550 / 551

Pin grid array sockets / interconnect

receptacle and pin / solder tail

Receptacle with wire-wrap posts

Pin grid array sockets, interconnect receptacle and pin,

solder tail, receptacle with wire-wrap posts

Series 516, 521, 522, 523, 550 and 551 PGA sockets are high

density connecting devices equipped with machined precision

male or female contacts.

Receptacles have soft contact clips assuring low insertion/with-

drawal forces. Over 200 standard pinouts are available; inquiries

for custom varieties are welcome

Insertion characteristics: receptacle 6-finger low force

Ordering information

Replace

xxx-xx-xxx

with the number of poles, body size and lay-

out numbers as indicated on pages 88 to 92. For example, a 12×12

pin configuration with window and 108 interconnect contacts as

shown on page 88 becomes: 516-93-108-12-051-003 or 551-90-

108-12-051-003

Platings

Sleeve

0.25

µm

5.0

µm

Sn Pb

5.0

µm

Sn Pb

5.0

µm

Sn Pb

5.0

µm

Sn Pb

Clip

0.75

µm

0.25

µm

0.75

µm

Goldflash

5.0

µm

Sn Pb

0.25

µm

5.0

µm

Sn Pb

516-93-xxx-xx-xxx-006

516-93-xxx-xx-xxx-003

516-93-xxx-xx-xxx-012

516-93-xxx-xx-xxx-007

516-93-xxx-xx-xxx-008

516-93-xxx-xx-xxx-009

516-93-xxx-xx-xxx-001

516-93-xxx-xx-xxx-011

516-93-xxx-xx-xxx-004

516-93-xxx-xx-xxx-013

PGA interconnect sockets; solder

tail

550-10-xxx-xx-xxx-001 4.0 mm

550-90-xxx-xx-xxx-001

551-10-xxx-xx-xxx-003 6.2 mm

551-90-xxx-xx-xxx-003

551-10-xxx-xx-xxx-004 8.4 mm

551-90-xxx-xx-xxx-004

551-10-xxx-xx-xxx-005 15.3 mm

551-90-xxx-xx-xxx-005

551-10-xxx-xx-xxx-016 21.2 mm

551-90-xxx-xx-xxx-016

551-10-xxx-xx-xxx-017 27.4 mm

551-90-xxx-xx-xxx-017

PGA interconnect sockets; solder

tail

52x-13-xxx-xx-xxx-001

52x-91-xxx-xx-xxx-001

52x-93-xxx-xx-xxx-001

52x-97-xxx-xx-xxx-001

52x-99-xxx-xx-xxx-001

PGA sockets with wire-wrap

terminations

Dimensions of wrapost 0.635

square

1 level L = 6.60 mm = 521-..

2 level L = 9.40 mm = 522-..

3 level L = 12.95 mm = 523-..

Products not available from stock. Please consult PRECI-DIP.
