52760-0309: DescriptionBoard to Board/Mezzanine Connector.635 slimstack 30p; CategoryThe connector The connector; File Size40KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52760-0309 Overview

Board to Board/Mezzanine Connector.635 slimstack 30p

52760-0309 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	POLARIZATION AVAILABLE
Board mount options	POLARIZATION POST
body width	0.252 inch
subject depth	0.157 inch
body length	0.685 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	52760
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

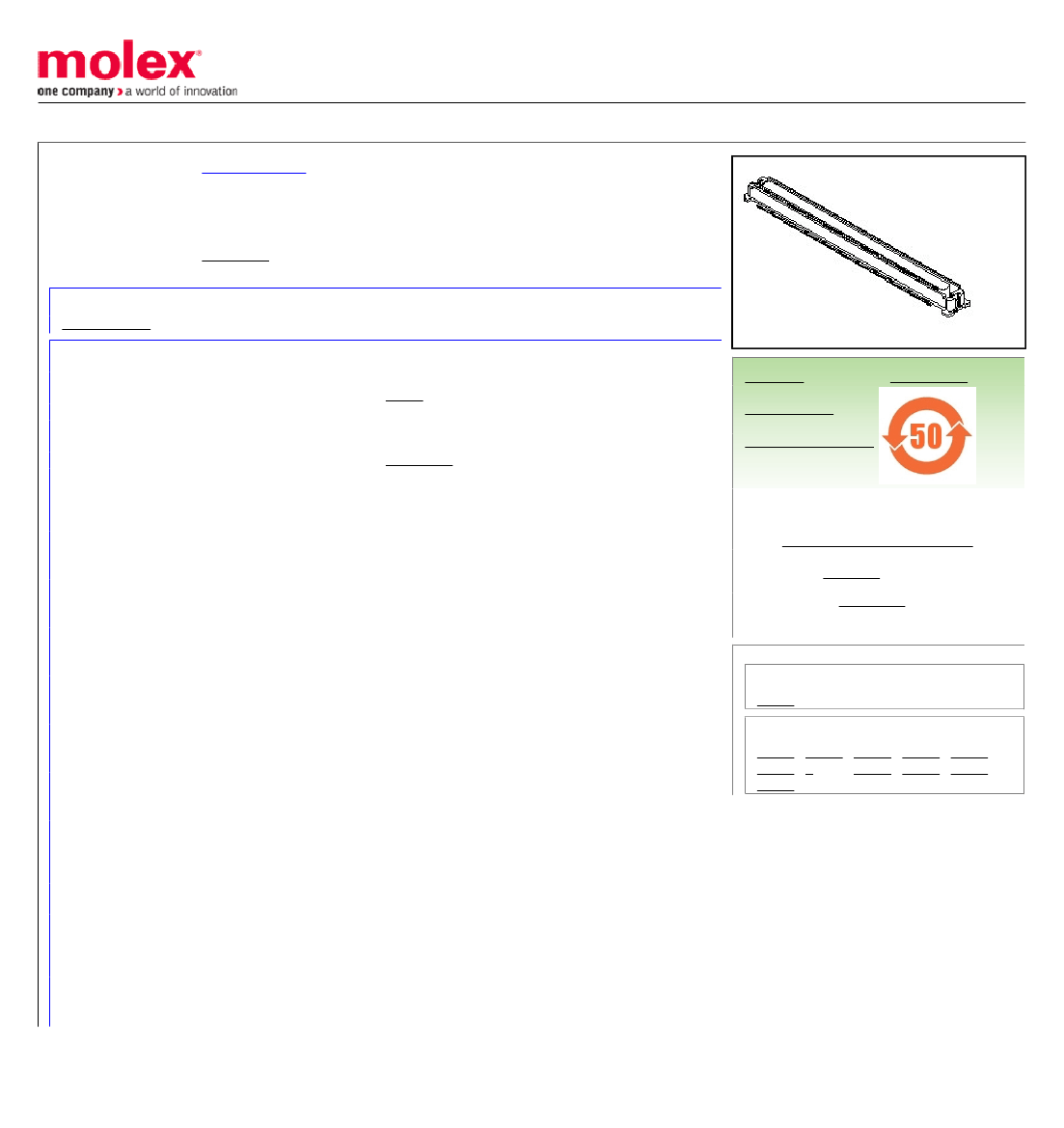

Preview

Download Datasheet

View All

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0527600309

Obsolete

0.635mm (.025") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical

Stacking, 5.00 and 10.00mm (.197 and .394") Stacking Heights, Tube or Embossed

Tape Packaging, 30 Circuits

527600379

Replacement Part

Number:

Documents:

Drawing (PDF)

Series

image - Reference only

General

Product Family

Series

Application

Comments

Product Name

Replacement Part Number

PCB Receptacles

52760

Board-to-Board, Signal

Stacking-Type

SlimStack™

527600379

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Durability (mating cycles max)

Glow-Wire Compliant

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

10.00mm (.394"), 5.00mm (.197")

Phosphor Bronze

Gold

Tin-Lead

Vertical

Yes

1.60mm (.063")

Tube

0.64mm (.025")

0.254µm (10µ")

2.032µm (80µ")

Yes

N/A

-55°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52760Series

Mates With

55091 , 53649 , 53643 , 53475 , 53627 ,

53553 , 5 3552, 53647 , 53551 , 53481 ,

53625

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

100V

Material Info

Country of Origin

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-52760-ST

PS-52760-003, RPS-52760-006, RPS-52760-009,

RPS-52760-010, RPS-52760-015

SD-52760-***0, SD-52760-***9, SD-52760-012

This document was generated on 11/12/2010
