54030-0472 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54030-0472

54030-0472: Descriptionusb and firewire connector 0.8 I/O socket hsg A assy 4ckt stick pkg; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54030-0472 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54030-0472	-	-	View	Buy Now

54030-0472 Overview

usb and firewire connector 0.8 I/O socket hsg A assy 4ckt stick pkg

54030-0472 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	IEEE 1394 Connectors 0.8 I/O Socket Hsg A Assy 4Ckt Stick Pkg
Board mount options	SOLDER HOLDING FLANGE
body width	0.232 inch
subject depth	0.488 inch
body length	0.335 inch
Body/casing type	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYPHENYLENE SULFIDE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.11 inch
Terminal pitch	1.6002 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

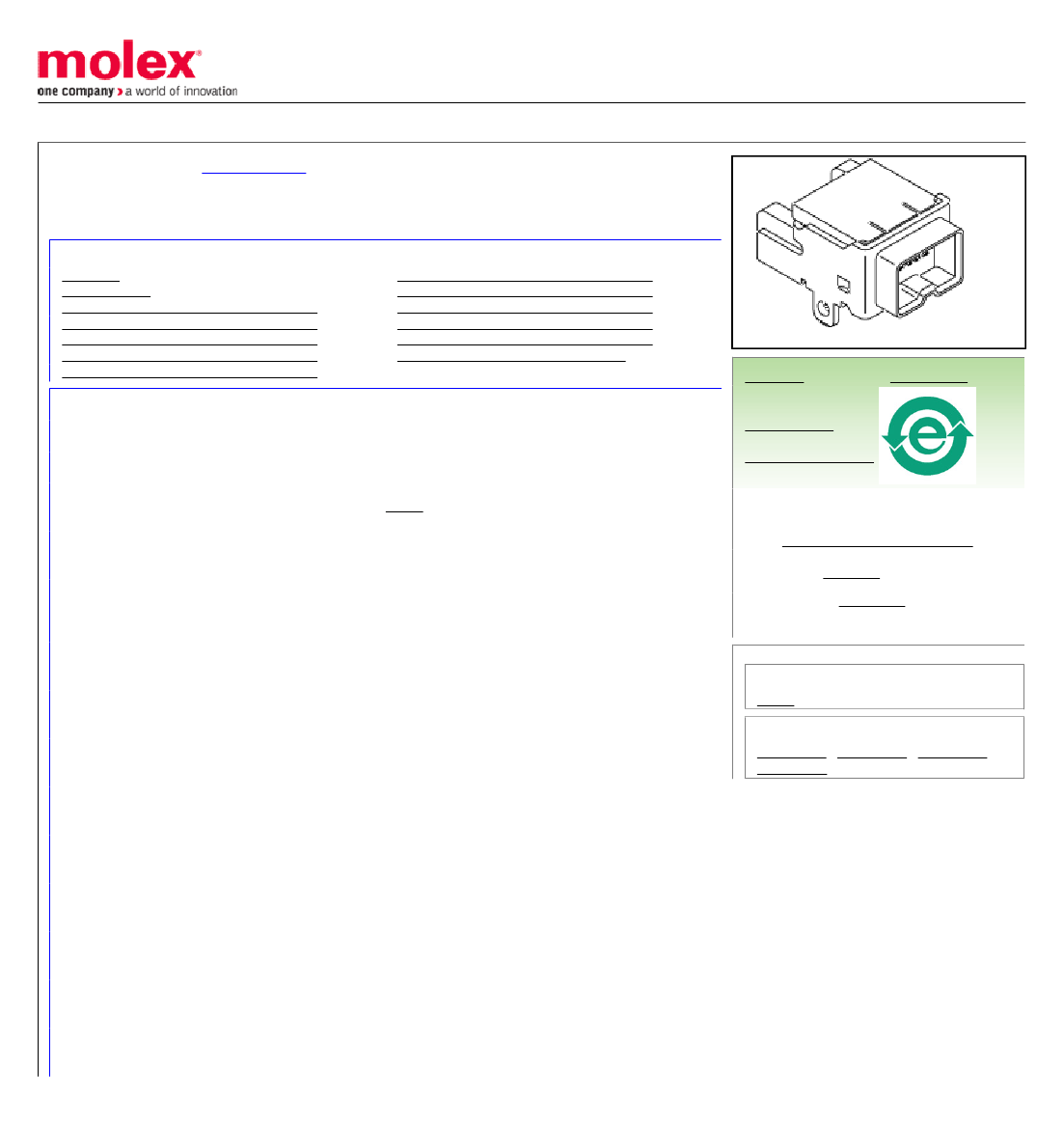

This document was generated on 11/16/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0540300472

Planned for Obsolescence

0.80mm (.031") Pitch IEEE P1394a Shielded I/O PCB Socket Right Angle, PC Tail

Length 2.80mm, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54030-032 (PDF)

Product Specification PS-54030-033 (PDF)

Product Specification PS-54030-034 (PDF)

Product Specification PS-54030-035 (PDF)

Product Specification PS-54030-036 (PDF)

Product Specification PS-54030-037 (PDF)

Product Specification PS-54030-038 (PDF)

Product Specification PS-54030-039 (PDF)

Product Specification PS-54030-040 (PDF)

Product Specification PS-55395-004 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

54030

Wire-to-Board

Receptacle

IEEE 1394

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

N/A

Black

94V-0

Socket

Yes

Phosphor Bronze, Steel

Gold, Tin

Tin

High Temperature Thermoplastic

Right Angle

2.80mm (.110")

Yes

1.60mm (.063")

Tube

0.80mm (.031")

0.762µm (30µ")

0.762µm (30µ"), 1.016µm (40µ")

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

54030Series

Mates With

59233-3xxx , 59233-5xxx , 59233-9xxx ,

59233-71xx
