51114-0310: Description3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 3 circuits; CategoryThe connector The connector; File Size85KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51114-0310 Overview

3.50mm (.138") pitch wire-to-wire plug housing, positive lock, with optional panel mount, 3 circuits

51114-0310 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POSITIVE LOCK, COMPATIBLE CONTACTS: 50419-9001; 50419-9101
body width	0.323 inch
subject depth	0.906 inch
body length	0.519 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.896 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	51114
Plug contact pitch	0.138 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	.5004 N
Base Number Matches	1

Preview

Download Datasheet

View All

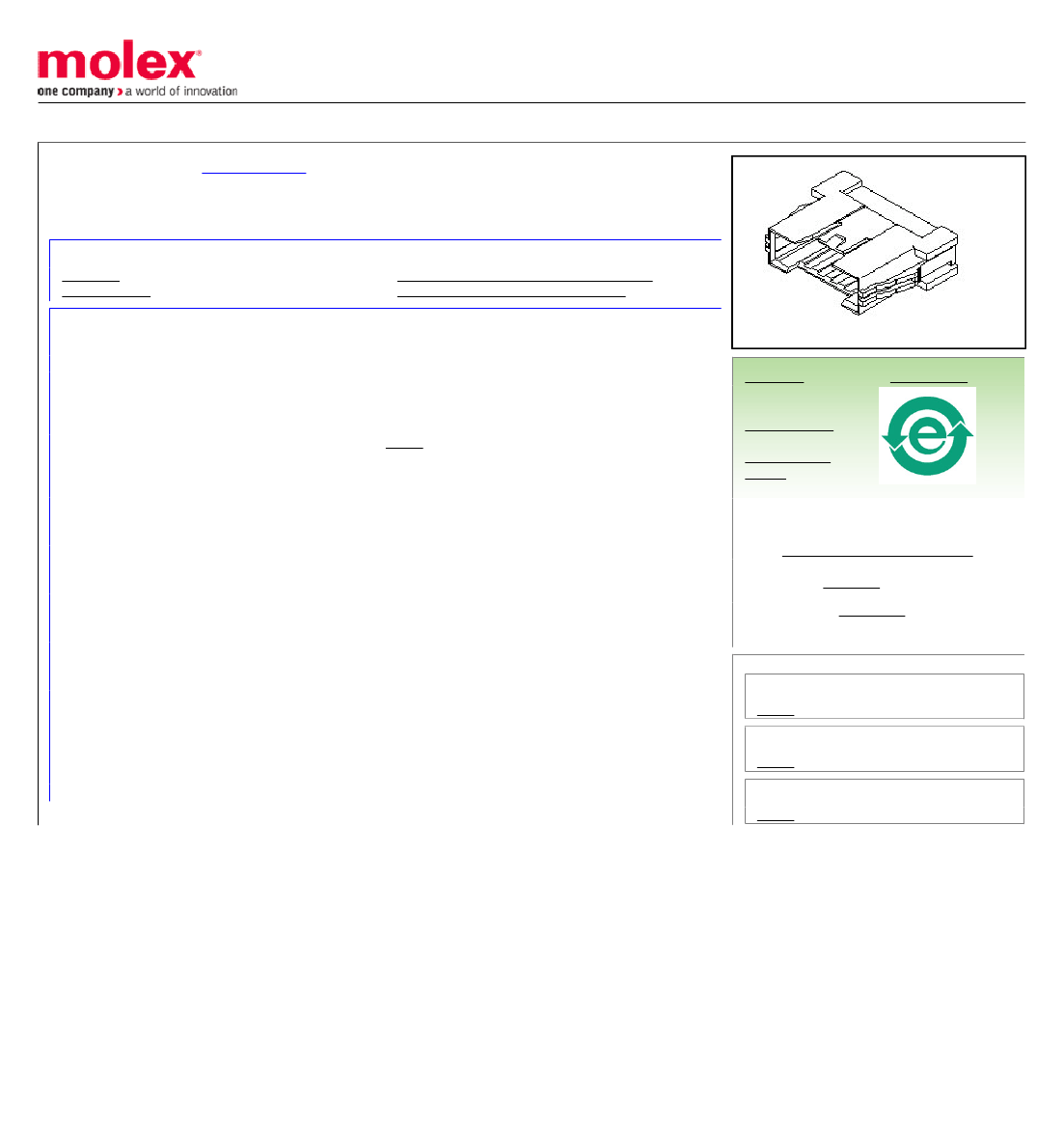

This document was generated on 03/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0511140210

Active

3.50mm (.138") Pitch Wire-to-Wire Plug Housing, Positive Lock, With Optional Panel

Mount, 2 Circuits

Documents:

3D Model

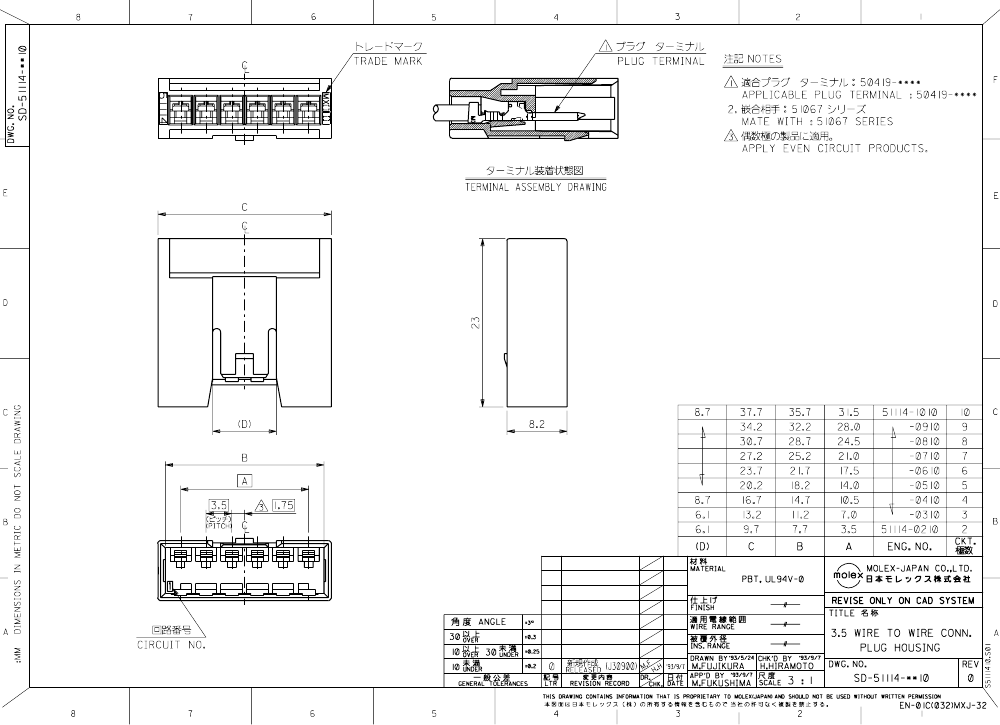

Drawing (PDF)
