52588-1890 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52588-1890

52588-1890: Descriptionboard to board/mezzanine connector recp dual smt 18p floating type; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52588-1890 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52588-1890	-	-	View	Buy Now

52588-1890 Overview

board to board/mezzanine connector recp dual smt 18p floating type

52588-1890 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	FLOATING-TYPE
body width	0.244 inch
subject depth	0.177 inch
body length	0.496 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYPHTHALAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	52588
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.096 mm
polarization key	ENDS
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

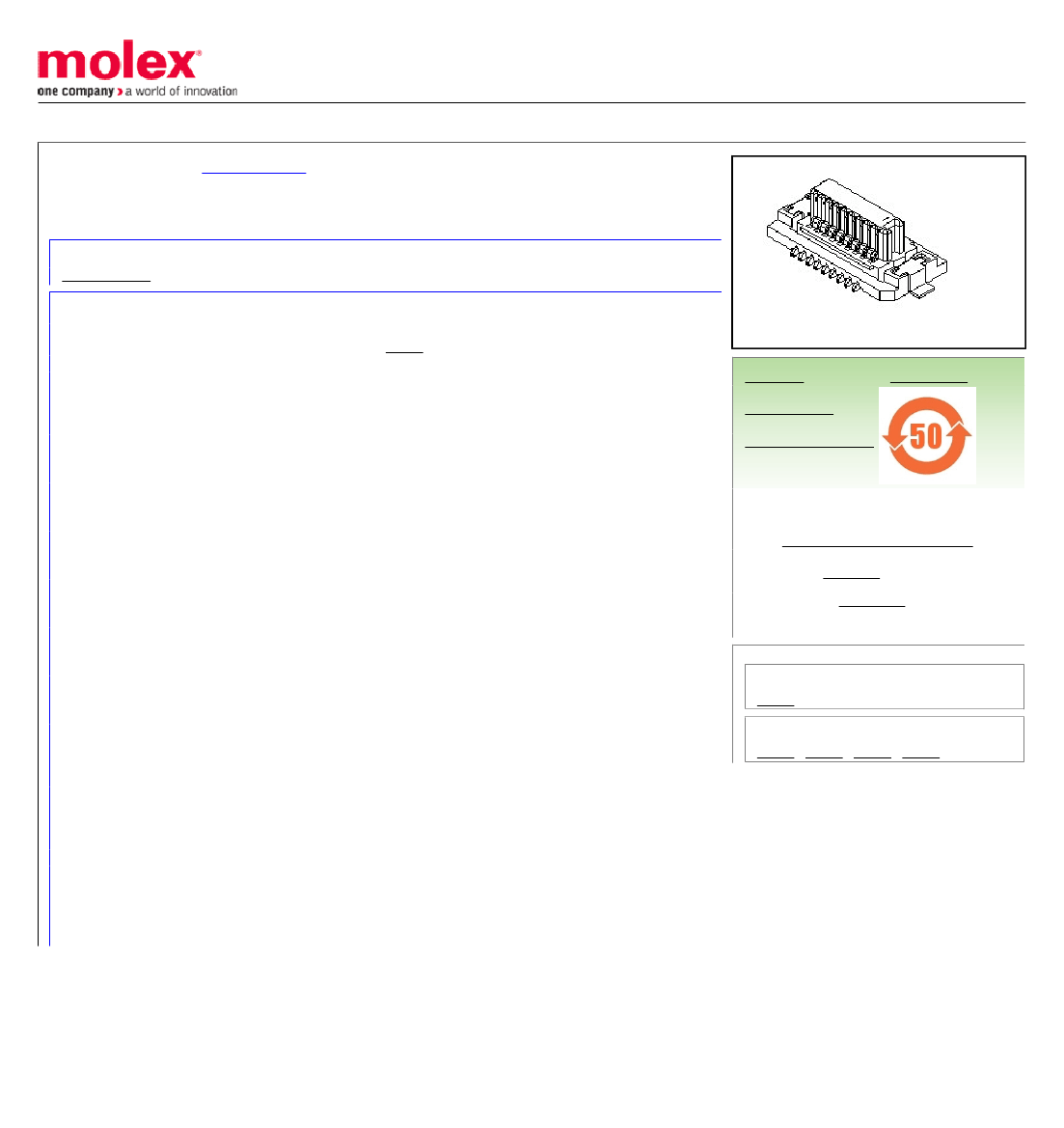

Preview

Download Datasheet

View All

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0525881890

Obsolete

0.80mm (.031") Pitch Board-to-Board Receptacle, Surface Mount, Dual Row, Floating-

Type, 18 Circuits

Documents:

Drawing (PDF)

General

Product Family

Series

Application

Product Name

PCB Receptacles

52588

Board-to-Board, Signal

N/A

image - Reference only

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Series

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

Phosphor Bronze

Tin

High Temperature Thermoplastic

Vertical

Yes

1.60mm (.063")

Embossed Tape on Reel

0.80mm (.031")

3.048µm (120µ")

N/A

-20°C to +105°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52588Series

Mates With

53364 , 53353 , 53307 , 53309

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V

Material Info

Country of Origin

HK, JP

Reference - Drawing Numbers

Product Specification

PS-52588-007, PS-52588-008, PS-52588-009,

RPS-52588-001, RPS-52588-002, RPS-52588-036,

RPS-52588-037

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
