52901-0604 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52901-0604

52901-0604: DescriptionBoard to board/mezzanine connector.635 slmstk recp 60p smt dual row; CategoryThe connector The connector; File Size40KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52901-0604 Overview

Board to board/mezzanine connector.635 slmstk recp 60p smt dual row

52901-0604 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZATION AVAILABLE
Board mount options	POLARIZATION POST
body width	0.252 inch
subject depth	0.394 inch
body length	1.059 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	52901
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

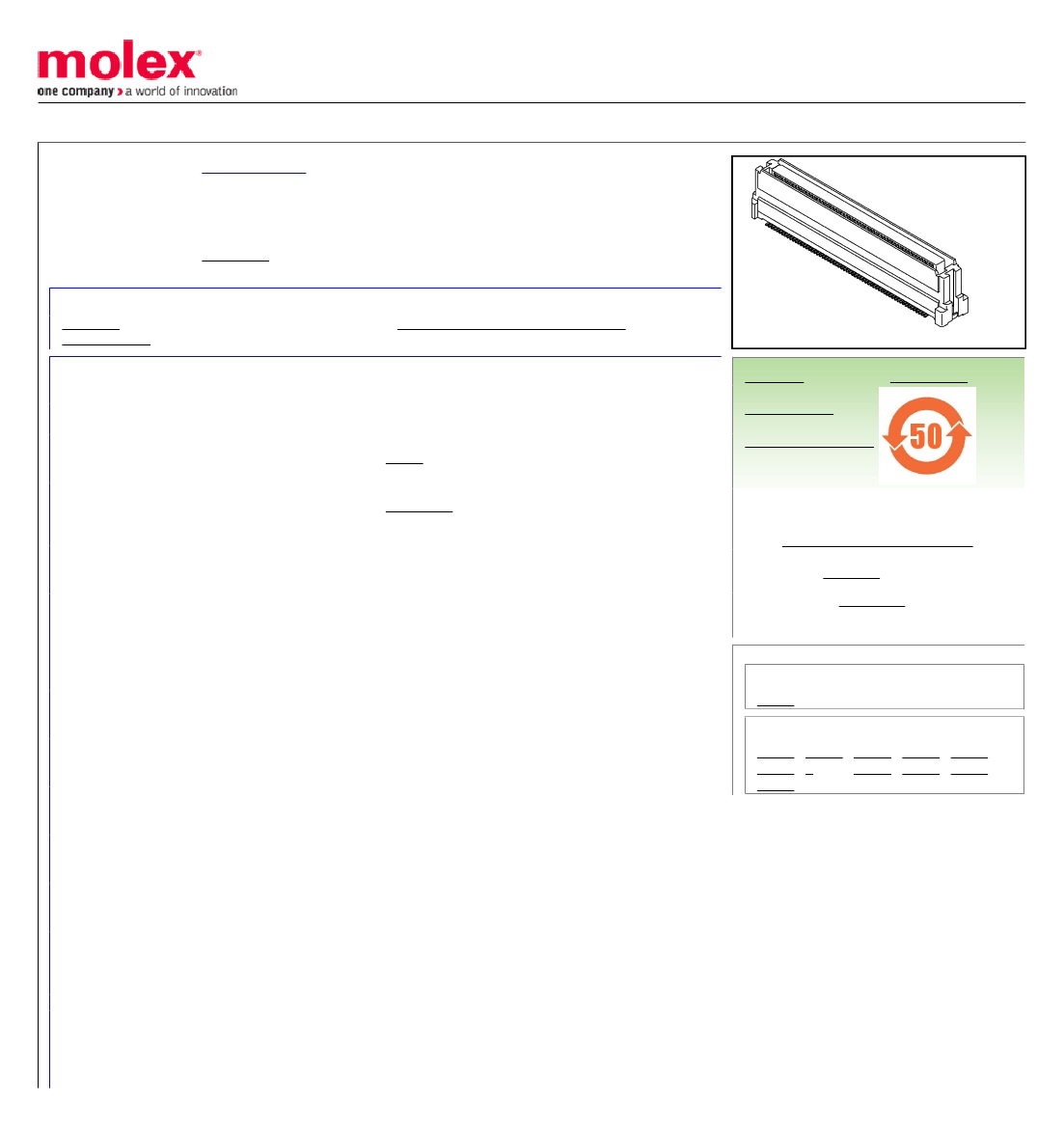

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0529010604

Planned for Obsolescence

0.635mm (.025") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical

Stacking, 11.00 to 16.00mm (.433 to .630") Stacking Heights, Tube and Embossed

Tape with Cover, 60 Circuits

529010674

Replacement Part

Number:

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Series

Agency Certification

E29179

General

Product Family

Series

Application

Product Name

Replacement Part Number

PCB Receptacles

52901

Board-to-Board, Signal

SlimStack™

529010674

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Robotic Placement

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

11.00mm (.433"), 12.00mm (.472"), 13.00mm (.512"),

14.00mm (.551"), 15.00mm (.591"), 16.00mm (.630")

Phosphor Bronze

Gold

Tin-Lead

High Temperature Thermoplastic

Vertical

Yes

1.60mm (.063")

Embossed Tape on Reel

0.64mm (.025")

0.254µm (10µ")

2.032µm (80µ")

Yes

Pick and Place Cap

N/A

-55°C to +85°C

Surface Mount

Search Parts in this Series

52901Series

Mates With

55091 , 53649 , 53643 , 53475 , 53627 ,

53553 , 5 3552, 53647 , 53551 , 53481 ,

53625

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

100V

Material Info

Country of Origin

Reference - Drawing Numbers

Recommended Resources
