54142-1440 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54142-1440

54142-1440: Descriptionddr3/ddr2/ddr connector 144p SO dimm; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

54142-1440 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54142-1440	-	-	View	Buy Now

54142-1440 Overview

ddr3/ddr2/ddr connector 144p SO dimm

54142-1440 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	POLARIZED
Board mount options	PEG
body width	0.205 inch
subject depth	1.197 inch
body length	2.874 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54142
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.323 mm
polarization key	POLARIZED KEY
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
UL Flammability Code	94V-0
Base Number Matches	1

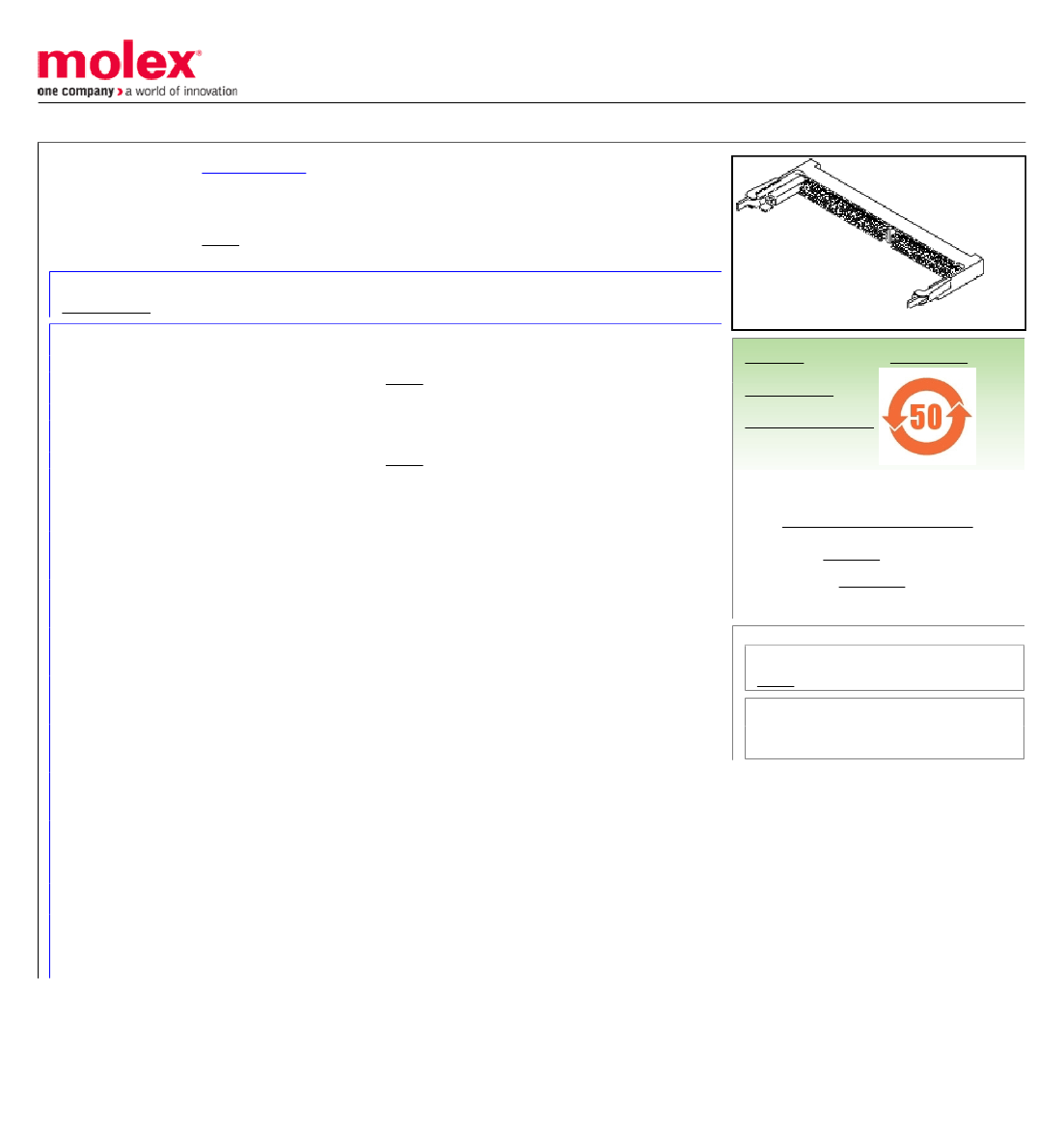

Preview

Download Datasheet

View All

This document was generated on 11/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Replacement Part

Number:

Documents:

Drawing (PDF)

image - Reference only

0541421440

Obsolete

0.80mm (.031") Pitch S.O. DIMM Socket, Right Angle, Surface Mount, 5.20mm (.205")

Mounted Height, 144 Circuits, 3.3V Power Supply

54698

Series

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Replacement Part Number

Memory Module Sockets

54142

3.3V Power Supply

Memory Module

N/A

S.O. DIMM

54698

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

144

Natural

90° Angle (Side Entry)

Yes

Phosphor Bronze

Gold

Tin-Lead

High Temperature Thermoplastic

Yes

1.20mm (.047")

Tray

0.80mm (.031")

0.254µm (10µ")

1.016µm (40µ")

-55°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54142Series

Mates With

JEDEC Standard DRAM and SDRAM

modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

100V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-54142-001

SD-54142-001

This document was generated on 11/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
