Part Number:
Status:
Overview:
Description:
0543660478
Active
usb
Universal Serial Bus (USB) Shielded I/O Receptacle, SMT, Side Flange Reverse
Mount, Lead-free
Documents:
3D Model

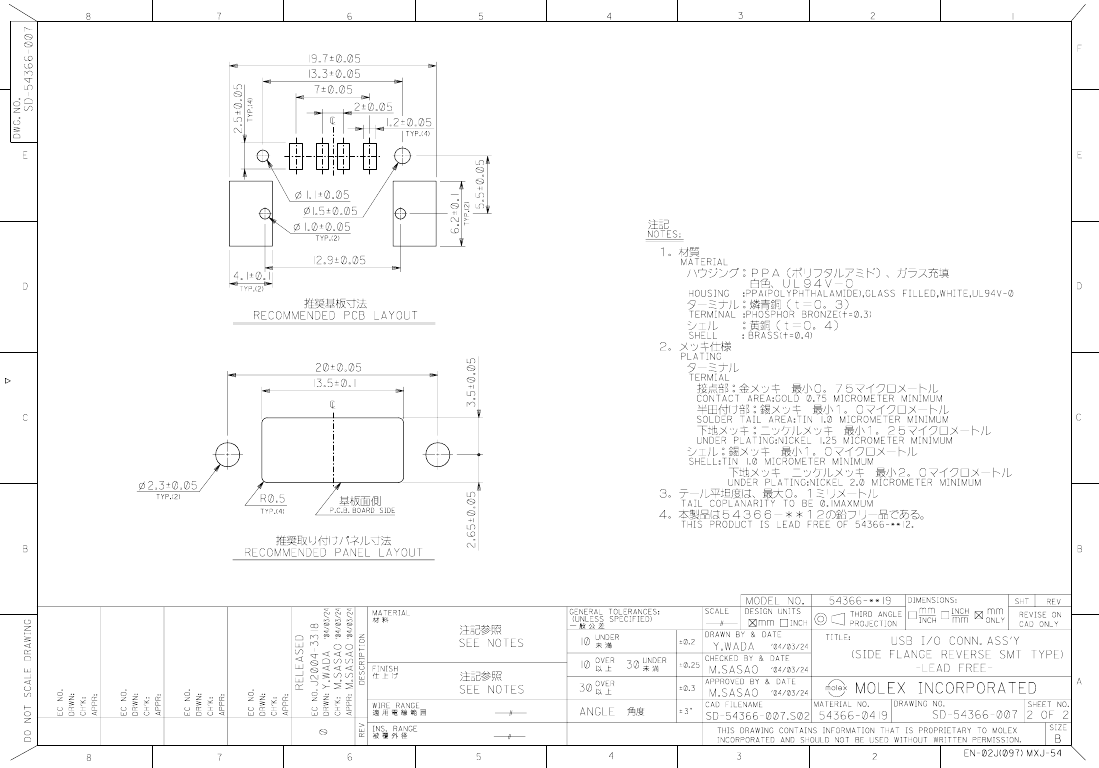

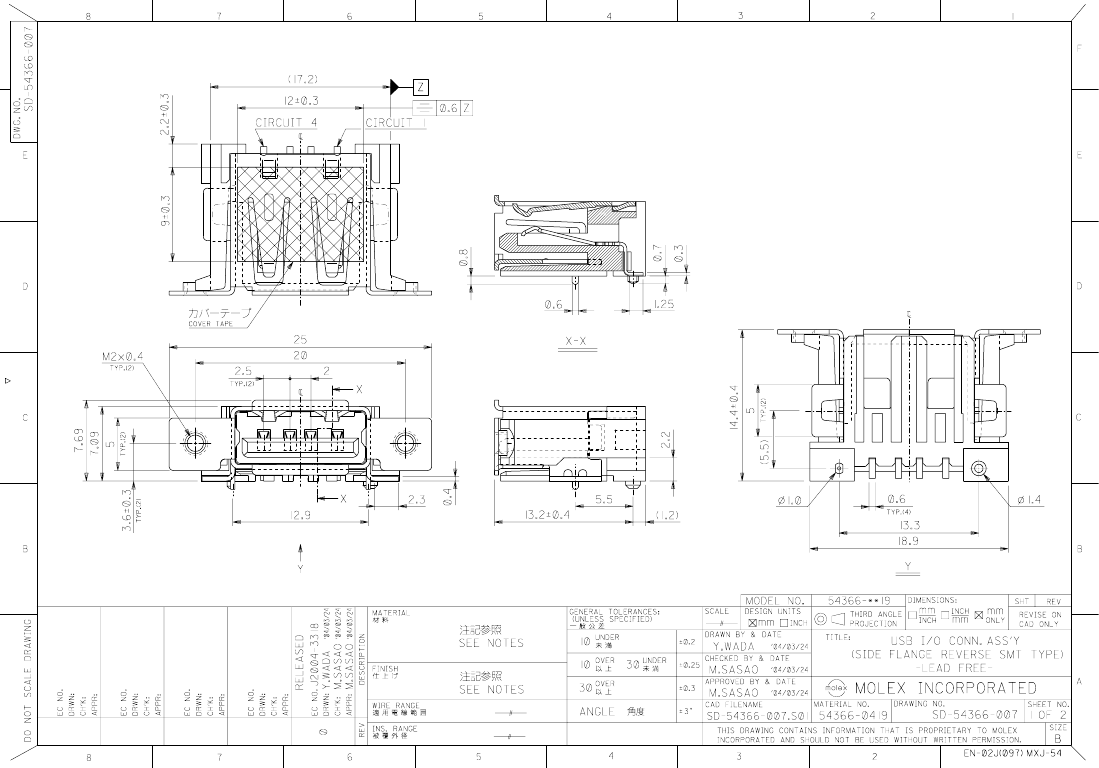

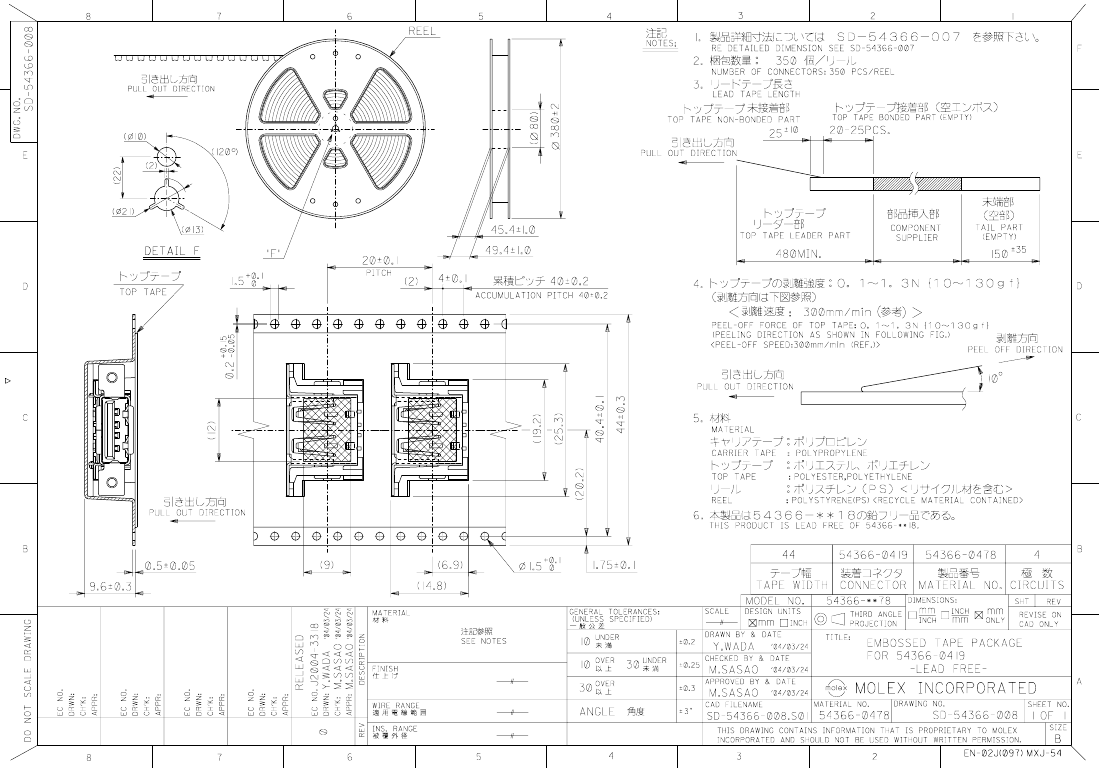

Drawing (PDF)
Product Specification PS-54366-008 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
I/O Connectors
54366
Wire-to-Board
Side Flange
Receptacle
usb
USB
A
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Type
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
4
4
Natural
Yes
Gold
Tin
High Temperature Thermoplastic
Right Angle
Yes
Yes
Embossed Tape on Reel
Yes
0.079 In, 0.098 In
2.00 mm, 2.50 mm
30
0.75
40
1
Yes
N/A
0°C to +40°C
Surface Mount
N/A
Search Parts in this Series
54366Series
Mates With
USB Type A Plug
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
1A
Yes
30V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54366-008, RPS-54366-002
SD-54366-007, SD-54366-008
