54518-1072

Description
Board to Board/Mezzanine Connector 100 ckt receptacle lead free
CategoryThe connector    The connector
File Size31KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54518-1072 Online Shopping

Suppliers Part Number Price MOQ In stock
54518-1072 - - View Buy Now

54518-1072 Overview

Board to Board/Mezzanine Connector 100 ckt receptacle lead free

54518-1072 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompli
ECCN codeEAR99
Samacsys DescriptiBoard to Board & Mezzanine Connectors 100 Ckt Receptacle lead free
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number54518
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts100
UL Flammability Code94V-0

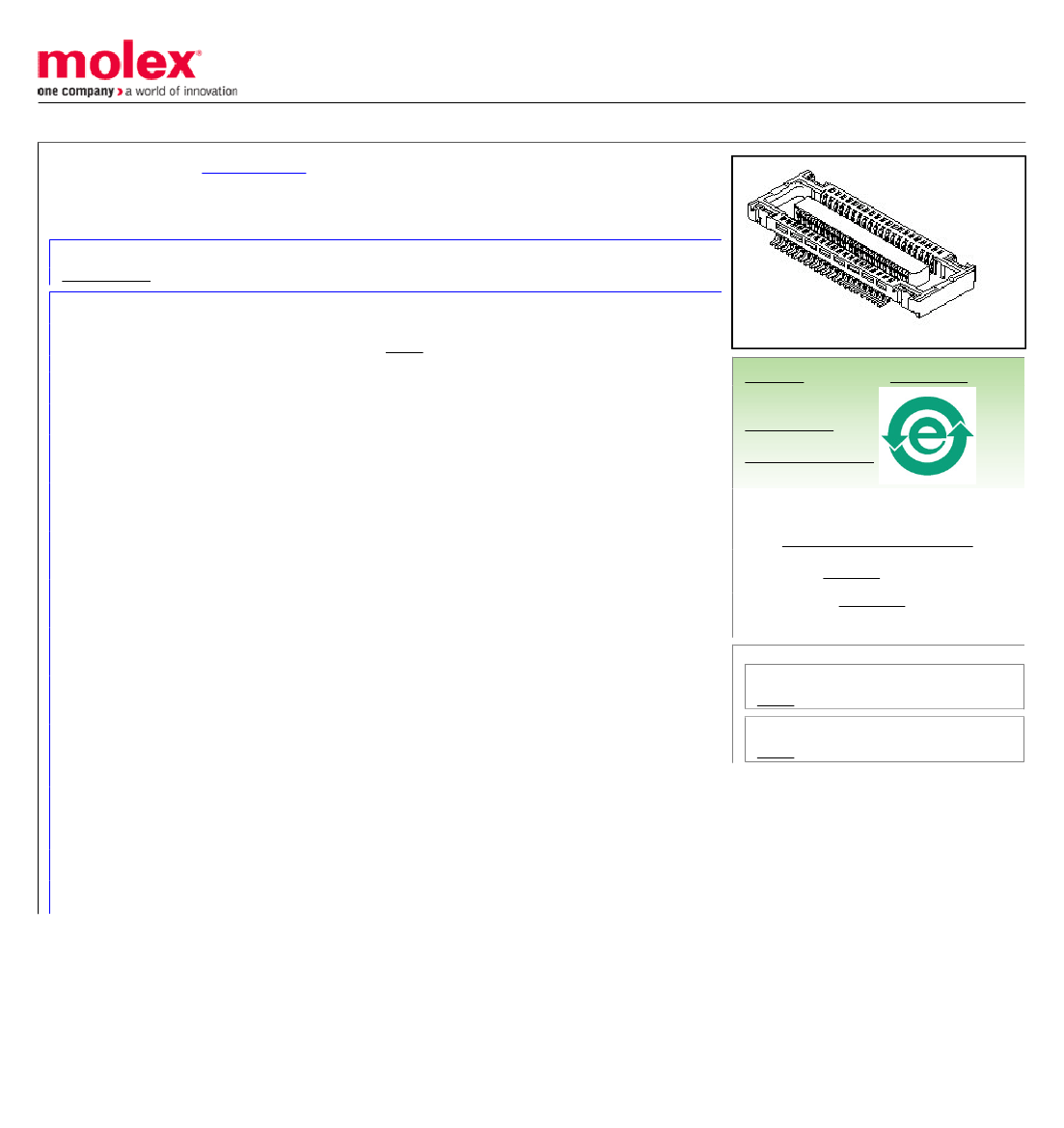

This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0545181072
Obsolete
0.40mm (.016") Pitch Board-to-Board SlimStack™ Receptacle, SMT, Dual Row,
Vertical, 1.50mm (.059") Stacking Height, with Solder Tabs, 100 Circuits, Lead-free
Documents:
Drawing (PDF)
General
Product Family
Series
Application
Comments
Product Name
PCB Receptacles
54518
Board-to-Board, Signal
Solder Tab Plating: Lead-Free, Tin
SlimStack™
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
Series
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
100
Black
30
No
1.50mm (.059")
Phosphor Bronze
Gold
Gold
2
Vertical
No
Yes
1.60mm (.063")
Embossed Tape on Reel
0.40mm (.016")
No
No
-25°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54518Series
Mates With
55372 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
50V
Material Info
Country of Origin
HK, JP, KR, US
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54518-011
SD-54518-010, SD-54518-011
This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
