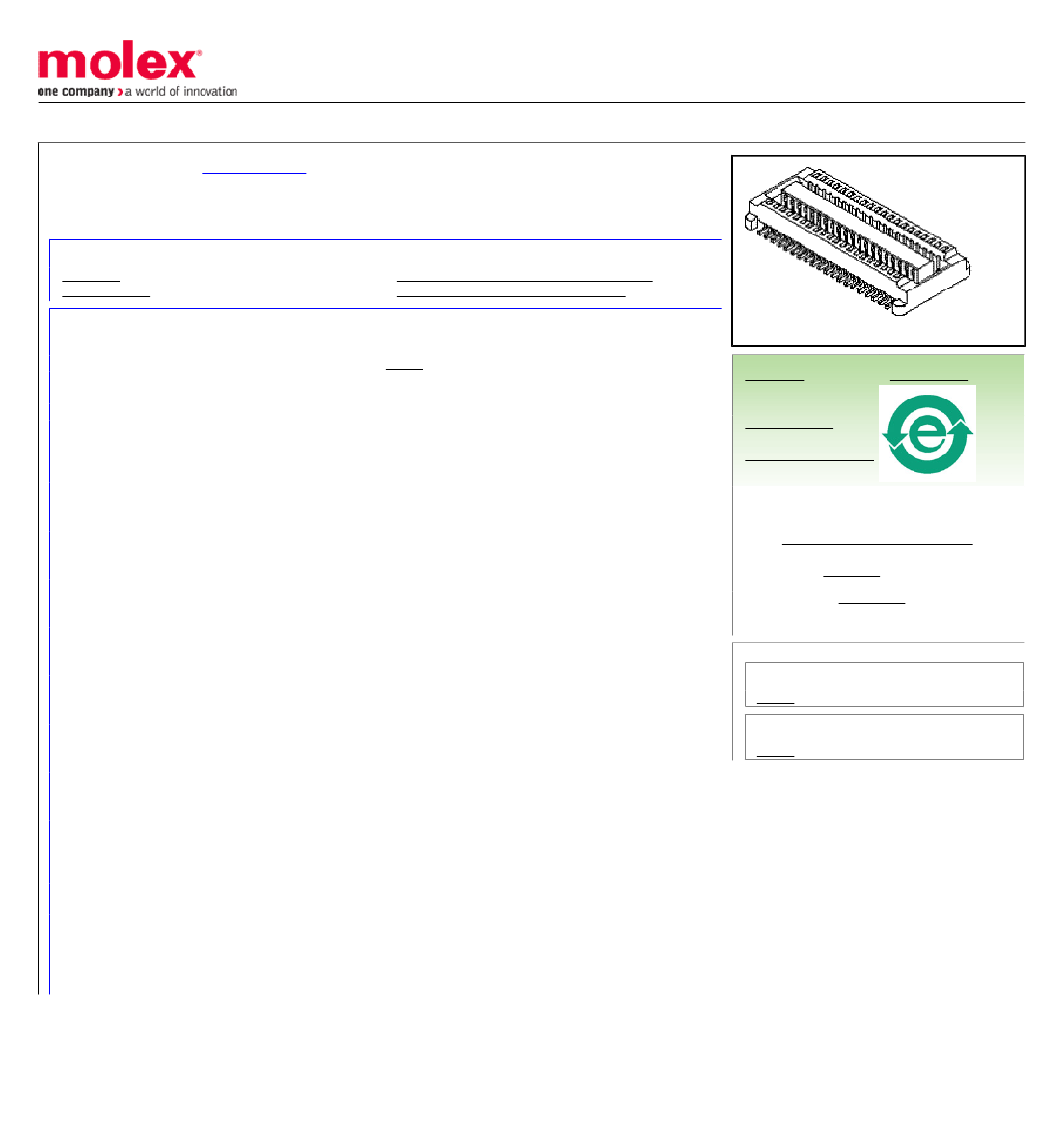

This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0547290166
Planned for Obsolescence
0.50mm (.020") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical,
2.00mm (.079") Stacking Height, Lower Circuit Size Version, 16 Circuits, Nickel Barrier
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54729-013 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Receptacles
54729
Board-to-Board, Signal
Nickel Barrier
SlimStack™
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Comments
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
16
Black
30
No
None
2.00mm (.079")
Phosphor Bronze
Gold
Gold
High Temperature Thermoplastic
2
Vertical
No
None
1.60mm (.063")
Embossed Tape on Reel
0.50mm (.020")
0.254µm (10µ")
0.051µm (2µ")
No
N/A
-40°C to +105°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54729Series
Mates With
55559 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
Material Info
Country of Origin
JP
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54729-013
SD-54729-011, SD-54729-012
This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
