54796-0604 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54796-0604

54796-0604: DescriptionBoard to board/mezzanine connector 60 ckt receptacle lead free; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54796-0604 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54796-0604	-	-	View	Buy Now

54796-0604 Overview

Board to board/mezzanine connector 60 ckt receptacle lead free

54796-0604 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Board to Board & Mezzanine Connectors 60 Ckt Receptacle lead free
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

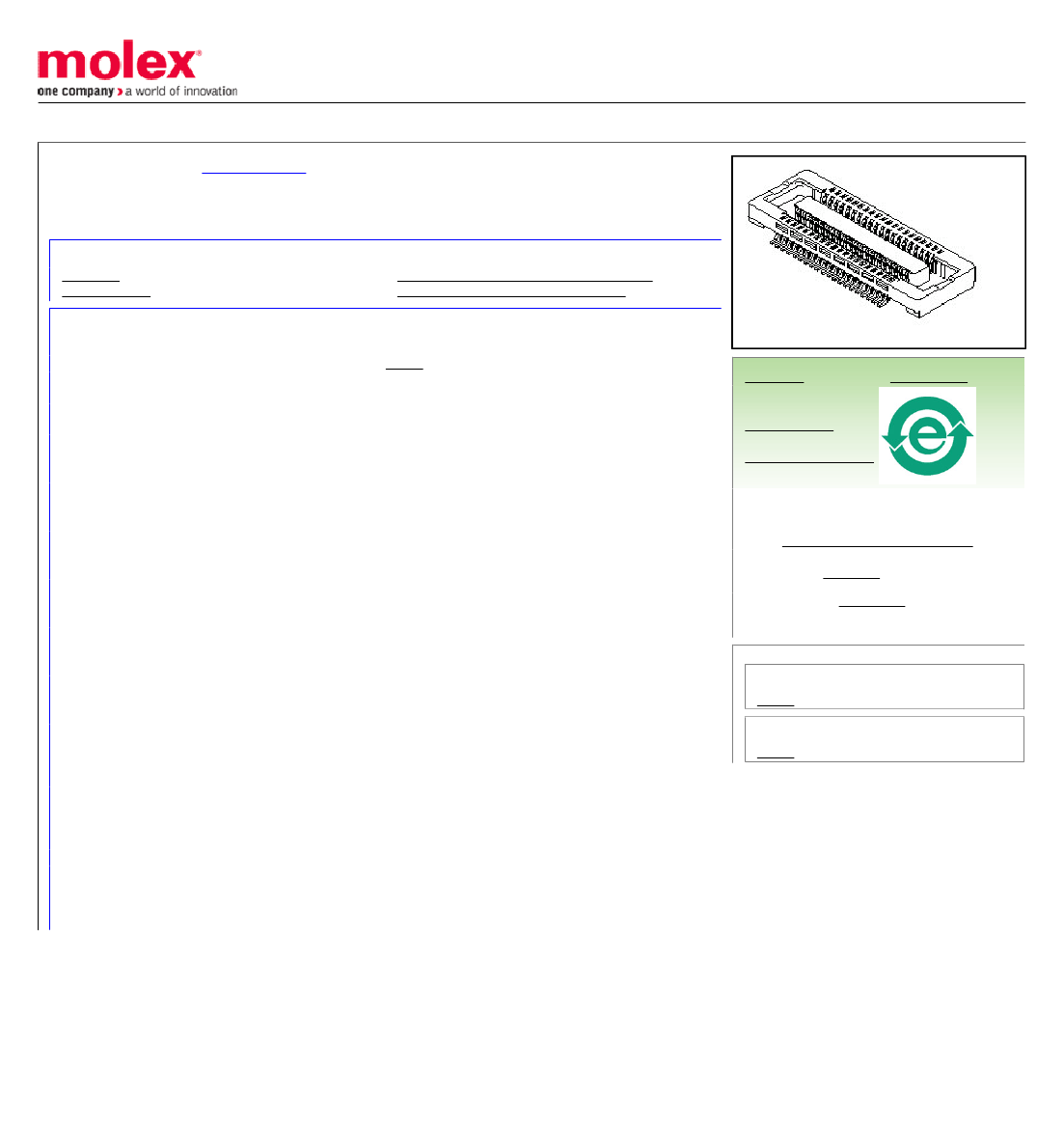

Preview

Download Datasheet

View All

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0547960604

Planned for Obsolescence

0.40mm (.016") Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual

Row, Vertical Stacking, 1.50mm (.059") Stacking Height, 60 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54796-006 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Receptacles

54796

Board-to-Board, Signal

SlimStack™

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Application

Product Name

Physical

Circuits (Loaded)

Color - Resin

Glow-Wire Compliant

Mated Height

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

1.50mm (.059")

Gold

High Temperature Thermoplastic

Vertical

None

1.60mm (.063")

Embossed Tape on Reel

0.40mm (.016")

0.254µm (10µ")

0.051µm (2µ")

N/A

-25°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54796Series

Mates With

55622

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

50V

Material Info

Country of Origin

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-54796-006, RPS-54796-008

SD-54796-005, SD-54796-006

This document was generated on 11/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
