54230-0878: DescriptionBoard to Board/Mezzanine Connector 80 ckt vert. recept. 0.5mm w/ solder tab; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54230-0878 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54230-0878	-	-	View	Buy Now

54230-0878 Overview

Board to Board/Mezzanine Connector 80 ckt vert. recept. 0.5mm w/ solder tab

54230-0878 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH EMBOSSED TAPE PACKAGING
Board mount options	POLARIZATION POST
body width	0.161 inch
subject depth	0.138 inch
body length	0.972 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8062 N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	54230
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.1656 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.0556 N
Base Number Matches	1

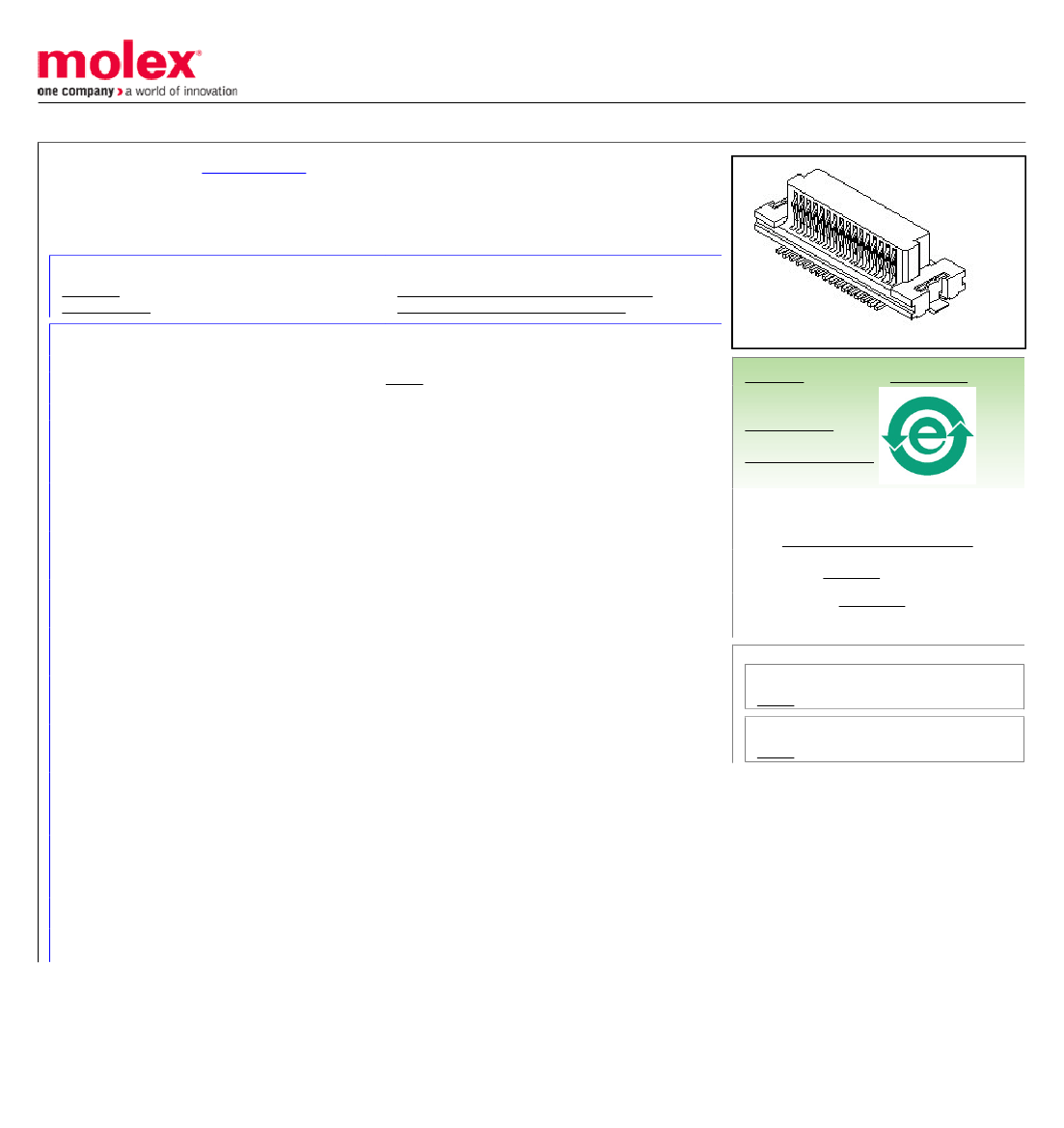

Preview

Download Datasheet

View All

This document was generated on 11/11/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0542300878

Planned for Obsolescence

0.50mm (.020") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical,

5.50mm (.217") Stacking Height, with Solder Tabs and Plastic PCB Locator, 80

Circuits, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54230-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Receptacles

54230

Board-to-Board, Signal

Solder Tab Plating: Lead-Free, Tin

SlimStack™

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Product Name

Physical

Circuits (Loaded)

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Mated Height

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

None

5.50mm (.217")

Gold

Vertical

Yes

1.60mm (.063")

Embossed Tape on Reel

0.50mm (.020")

0.102µm (4µ")

Yes

N/A

-40°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54230Series

Mates With

55055

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.4A

60V

Material Info

Country of Origin

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-54230-002

SD-54230-001, SD-54230-002

This document was generated on 11/11/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
