54559-1611

Description
2.54mm (0.100") pitch QF-50? flat cable receptacle housing, 16 circuits
File Size156KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

54559-1611 Online Shopping

Suppliers Part Number Price MOQ In stock
54559-1611 - - View Buy Now

54559-1611 Overview

2.54mm (0.100") pitch QF-50? flat cable receptacle housing, 16 circuits

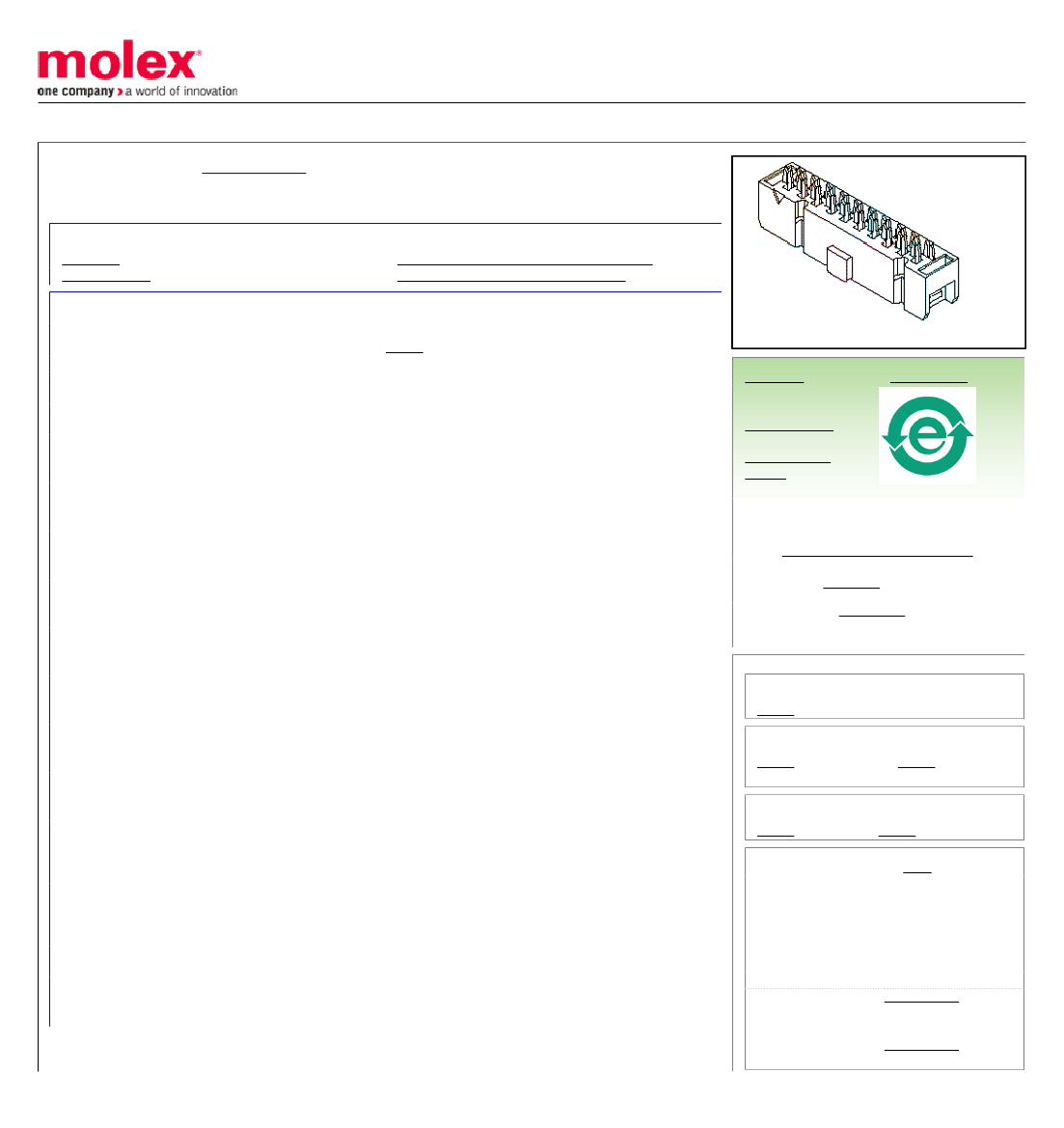

This document was generated on 04/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0545591611
Active
2.54mm (0.100") Pitch QF-50™ Flat Cable Receptacle Housing, 16 Circuits
Product Specification PS-54559-004 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
54559
Housing
No
QF-50™
image - Reference only
Series
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
16
Black
500
90° Angle
Yes
Phosphor Bronze
Gold
Gold
Polyester
2
None
Tray
0.100 In
2.54 mm
12
0.3
12
0.3
Yes
No
N/A
-40°C to +85°C
IDT or Pierce
1.14mm (.045") max.
28
Ribbon Cable
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54559Series
Mates With
55401 Vertical Header, 55638 Right Angle
Header
Use With
54561 Strain Relief, 54560 Upper Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
IDT Hand Tool
0572525000
Assembly For MIL
Connector
IDT Machine For MIL 0572527000
IDT Connector
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
300V
Material Info
Reference - Drawing Numbers
Product Specification

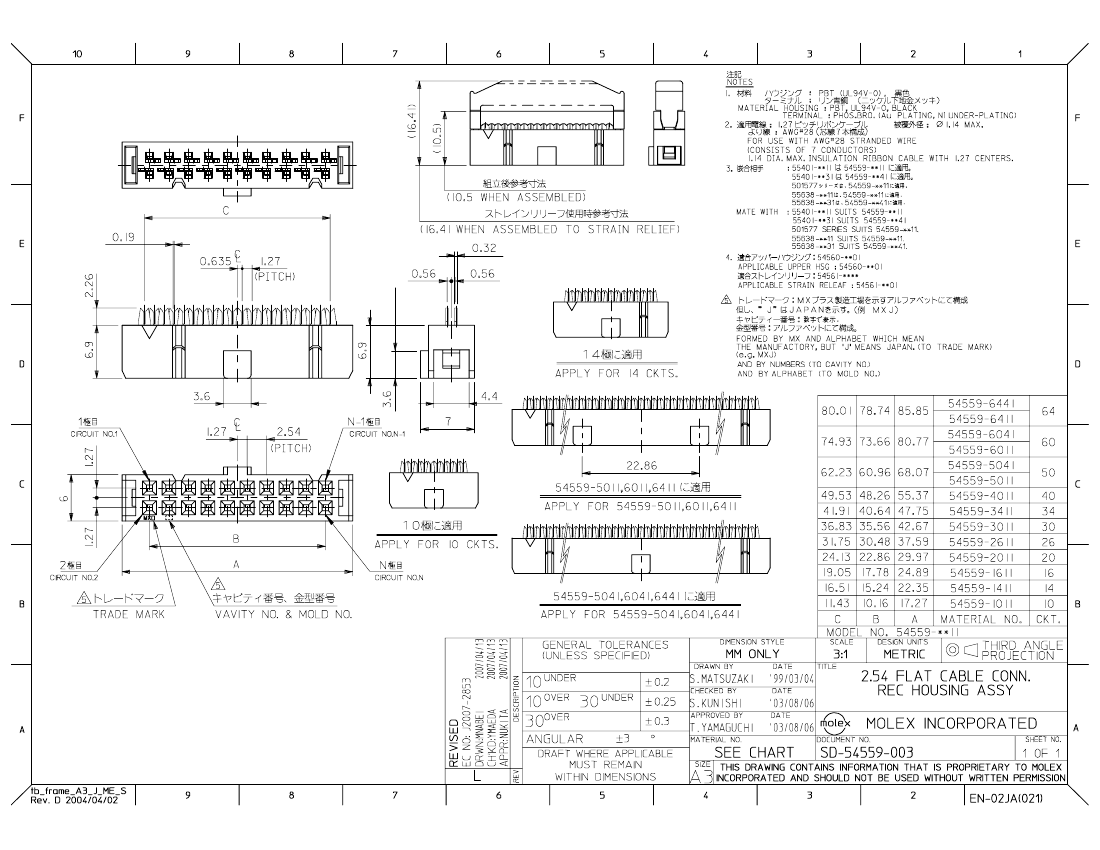

Sales Drawing
PS-54559-004, RPS-54559-008, RPS-54559-012,
RPS-54559-014, RPS-54559-015
SD-54559-003

54559-1611 Related Products

54559-1611 0545591611
Description 2.54mm (0.100") pitch QF-50? flat cable receptacle housing, 16 circuits 16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE
