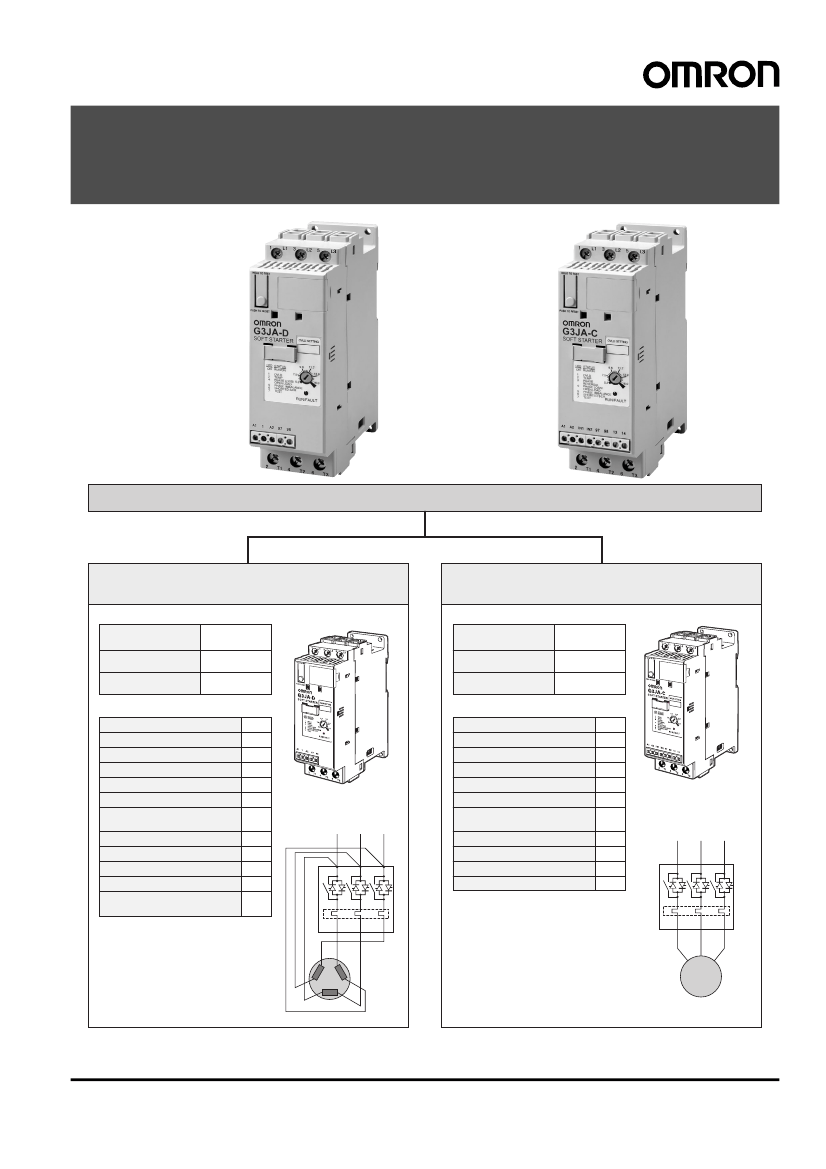

Three-Phase Hybrid Soft Starter
G3JA
Current Limit Start
for 3-phase, 6-lead Motors
Soft Start, Kick Start, Current
Limit Start, and Soft Stop
G3JA-D
G3JA-C
G3JA Series
G3JA-D
Specifications
Rated operating
voltage (motor)
Rated operating current
(motor)
Applicable motor capacity
IEC 60947-4-2, 230 VAC
G3JA-C
Specifications
Rated operating
voltage (motor)
Rated operating current
(motor)
Applicable motor capacity
IEC 60947-4-2, 230 VAC
200 to 480 VAC
50/60 Hz
3 to 64 A
0.55 to 18.5 kW
200 to 480 VAC
50/60 Hz
3 to 37 A
0.55 to 7.5 kW
Functions
Soft start
Kick start
Current limit start
Soft stop
Alarm contact output (NO)
Operating status output (NO)
Optional Auxiliary Contact Block
output
Functions
No
No
Yes
No
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Soft start (See note.)
Kick start
Current limit start (See note.)
Soft stop
Alarm contact output (NO)
Operating status output (NO)
Optional Auxiliary Contact Block
output
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Fault detection LED indicator
Overload protection
Phase reversal detection
Current imbalance detection
Internal delta control for
3-phase, 6-lead motor
Fault detection LED indicator
Overload protection
Phase reversal detection
Current imbalance detection
Applicable Motors
The G3JA-D can be used for a 3-
phase, 6-wire motor that supports
star-delta starting. It is compact
and equipped with star-delta
starting capabilities, as shown at
the right.
Motor
Note:
The soft start and current
limit start functions cannot
be used at the same time.
Applicable Motors
The G3JA-C is connected as shown
in the diagram at the right. It can
thus be used with a 3-phase, 3-lead
motor. (When using a 3-phase, 6-
lead/12-lead motor, delta wiring is
required in the motor.
Motor
Three-Phase Hybrid Soft Starter
G3JA
1
Three-Phase Hybrid Soft Starter
(Current Limit Start for 3-phase, 6-lead Motors)
G3JA-D
Built-in Bypass Relay and Smooth Motor
Starts Achieved in a Compact Starter
• A current limit start for a 3-phase, 6-lead motor achieves the
functionality of a star-delta starter with internal wiring.
• Phase control using a thyristor limits current when the motor
starts, and a bypass relay minimizes power loss while the motor
is running.
• Built-in electronic thermal overload relay.
• Built-in fault diagnosis for thyristor overtemperature, phase loss/
open load, current imbalance, and thyristor short-circuits.
• cULus listed; complies with IEC standards.
• Mounts with screws or to DIN track.
• Built-in operation/fault indicator.
• Built-in auxiliary contact for fault indication.
• An optional Auxiliary Contact Block can be mounted to output
operating status.
Note:
Refer to
Safety Precautions
on page 25.
Model Number Structure
■
Model Number Legend
Soft Starter
G3JA-D@@@@
1 2 3 4 5
1. Controller Type
D: Current limit start
2. Rated Operating Voltage of Main Circuit
4: 200 to 480 VAC, 3 phase, 50/60 Hz
3. Rated Operating Current of Main Circuit
03: 3 A
09: 9 A
16: 16 A
20: 20 A
25: 25 A
32: 32 A
51: 51 A
64: 64 A
4. Terminal Type
B: Screw terminals (screw clamps)
5. Control Voltage
AC100-240: 100 to 240 VAC 50/60 Hz
AC/DC24: 24 VAC 50/60 Hz, 24 VDC
Accessories
G32J-@@
1 2
1. Option
CA: Auxiliary Contact Block
2. Number of Contacts
10: 1 NO
20: 2 NO
01: 1 NC
11: 1 NO/1 NC
G32J-@
1
1. Option
CF64: Fan
TA10: Round Terminal Block Adapter
2
Three-Phase Hybrid Soft Starter (Current Limit Start for 3-phase, 6-lead Motors)
G3JA-D
Ordering Information
■
List of Models
Soft Starters (Complies with IEC 60947-4-2)
100 to 240-VAC Models
Rated Operating
Current of Main Circuit
Current
rating
(A)
3
9
16
20
25
32
51
64
Adjustable
range (A)
1 to 3
3 to 9
5.3 to 16
6.7 to 20
9.2 to 27.7
10.9 to 32.9
17.3 to 51.9
21.3 to 64
200 VAC
50/60 Hz
0.2 to 0.4
0.55 to 1.5
1.1 to 2.2
1.5 to 3.7
2.2 to 5.5
3.7 to 7.5
5.5 to 11
5.5 to 15
kW
HP
Model
230 VAC 380/400/ 200 VAC 230 VAC 460 VAC
50 Hz
415 VAC
60 Hz
60 Hz
60 Hz
50 Hz
0.55
2.2
4
5.5
5.5
7.5
15
18.5
1.1
4
7.5
7.5
11
15
22
30
0.5
1.5 to 3
2 to 5
3 to 7.5
3 to 10
5 to 15
0.5
1.5 to 5
2 to 5
3 to 7.5
5 to 10
0.5 to 1.5 G3JA-D403B AC100-240
1.5 to 5
5 to 10
5 to 10
G3JA-D409B AC100-240
G3JA-D416B AC100-240
G3JA-D420B AC100-240
0.75 to 2 0.75 to 2
7.5 to 15 G3JA-D425B AC100-240
7.5 to 20 G3JA-D432B AC100-240
G3JA-D451B AC100-240
G3JA-D464B AC100-240
7.5 to 15 15 to 30
7.5 to 20 7.5 to 20 20 to 40
Note:
The applicable motor capacities given in the table are reference values. Select a model so that the full load current of the motor is within the
adjustable range of the rated operating current of the main circuit of the G3JA. Only motors that support star-delta starting, such as 3-phase,
6-wire/12-wire motors, can be used.
24-VDC Models
Rated Operating
Current of Main Circuit
Current
rating
(A)
3
9
16
20
25
32
51
64
Adjustable
range (A)
1 to 3
3 to 9
5.3 to 16
6.7 to 20
9.2 to 27.7
10.9 to 32.9
17.3 to 51.9
21.3 to 64
200 VAC
50/60 Hz
0.2 to 0.4
0.55 to 1.5
1.1 to 2.2
1.5 to 3.7
2.2 to 5.5
3.7 to 7.5
5.5 to 11
5.5 to 15
kW
HP
Model
230 VAC 380/400/ 200 VAC 230 VAC 460 VAC
50 Hz
415 VAC
60 Hz
60 Hz
60 Hz
50 Hz
0.55
2.2
4
5.5
5.5
7.5
15
18.5
1.1
4
7.5
7.5
11
15
22
30
0.5
1.5 to 3
2 to 5
3 to 7.5
3 to 10
5 to 15
0.5
1.5 to 5
2 to 5
3 to 7.5
5 to 10
0.5 to 1.5
1.5 to 5
5 to 10
5 to 10
7.5 to 15
7.5 to 20
G3JA-D403B AC/DC24
G3JA-D409B AC/DC24
G3JA-D416B AC/DC24
G3JA-D420B AC/DC24
G3JA-D425B AC/DC24
G3JA-D432B AC/DC24
G3JA-D451B AC/DC24
G3JA-D464B AC/DC24
0.75 to 2 0.75 to 2
7.5 to 15 15 to 30
7.5 to 20 7.5 to 20 20 to 40
Note:
The applicable motor capacities given in the table are reference values. Select a model so that the full load current of the motor is within the
adjustable range of the rated operating current of the main circuit of the G3JA. Only motors that support star-delta starting, such as 3-phase,
6-wire/12-wire motors, can be used.
■
Accessories (Order Separately)
Product name
Model
G32J-CA20
G32J-CA01
G32J-CA11
Fan
Round Terminal Block
Adapters
G32J-CF64
G32J-TA10
Set of 2 Adapters
Remarks
Contact configuration: 1 NO
Contact configuration: 2 NO
Contact configuration: 1 NC
Contact configuration: 1 NO/1 NC
Auxiliary Contact Blocks G32J-CA10
Note:
Refer to page 24 for details.
Three-Phase Hybrid Soft Starter (Current Limit Start for 3-phase, 6-lead Motors)
G3JA-D
3
Specifications
■
Ratings and Characteristics
Ratings
Item
Rated operating current
Heat dissipation, continuous
Model
G3JA-
D403
3A
7W
G3JA-
D409
9A
7W
G3JA-
D416
16 A
7W
G3JA-
D420
20 A
8W
G3JA-D425
25 A
8W
G3JA-
D432
32 A
10 W
G3JA-D451
51 A
14 W
G3JA-
D464
64 A
19 W
Rated operating voltage of main
200 to 480 VAC, 50/60 Hz, 3-phase (
±
10%)
circuit
Main circuit power Wire gauge
2.5 to 25 mm
2
(14 to 4 AWG)
supply terminals
Tightening
2.3 to 3.4 N·m
(L1, L2, and L3)
torque
Main circuit load
power terminals
(T1, T2, and T3)
Control terminals
Wire gauge
2.5 to 16 mm
2
(14 to 6 AWG)
Tightening
torque
Tightening
torque
Rated operating current
Maximum delta current
Overload current range
Control voltage
2.3 to 3.4 N·m
Wire gauge
0.2 to 2.5 mm
2
(24 to 14 AWG)
0.5 to 0.9 N·m
3A
1.74 A
1 to 3 A
9A
5.2 A
3 to 9 A
16 A
9.3 A
20 A
11.6 A
25 A
14.5 A
32 A
17.4 A
51 A
29.6 A
64 A
36.5 A
5.3 to 16 A 6.7 to 20 A 9.2 to 27.7 A 10.9 to 32.9 A 17.3 to 51.9 A 21.3 to 64 A
100 to 240 VAC or 24 VAC, 50/60 Hz, 24 VDC
Short Circuit Coordination (Maximum Fuse or Circuit Breaker Size) Type 1
Item
Model
G3JA-
D403
10 A
15 A
G3JA-
D409
35 A
35 A
G3JA-
D416
60 A
60 A
G3JA-
D420
80 A
80 A
G3JA-
D425
100 A
100 A
G3JA-
D432
125 A
125 A
G3JA-
D451
200 A
200 A
G3JA-
D464
250 A
250 A
UL Class K5 and RK5 fuses
UL listing (600 V)
UL-listed thermal
electromagnetic circuit breaker
UL listing (600 V)
Rated breaking current: 5 kA
Rated breaking current: 5 kA
Rated breaking current: 10 kA
Rated breaking current: 10 kA
Main Circuit
Item
Rated operating voltage
Isolation rated voltage
Dielectric strength (between control
and main circuits)
Repetitive peak voltage
Operating frequency
Utilization category
Single-phase/3-phase
Rated impulse voltage
DV/DT protection
Overvoltage category
Classification
200 to 480 VAC
600 VAC
2,200 VAC
1,400 V
50/60 Hz
Intermittent duty
Equipment designed for 3-phase only
6 kV
1,000 V/
µ
s
III
AC-53b
cULus (UL 508)
400 VAC
500 VAC
2,500 VAC
1,400 V
IEC (EN/IEC 60947-4-2)
Environmental Conditions
Item
Classification
0 to 50
°
C
cULus (UL 508)
IEC (EN/IEC 60947-4-2)
Ambient operating temperature
Ambient storage temperature
Elevation
Humidity
Pollution degree
Degree of protection
−
25 to 85
°
C
2,000 m max.
5% to 85% (with no condensation)
2
IP20
4
Three-Phase Hybrid Soft Starter (Current Limit Start for 3-phase, 6-lead Motors)
G3JA-D
Control Circuit
Item
Rated operational voltage
Voltage range
Overvoltage category
Input onstate voltage minimum during
start (A1, A2)
Offstate current consumption
Onstate current consumption, with Fan
(A2)
Onstate current consumption, without
Fan (A2)
Classification
cULus (UL 508)
100 to 240 VAC 50/60 Hz, 24 VAC 50/60 Hz, 24 VDC
IEC (EN/IEC 60947-4-2)
±
10% of control voltage
---
III (See note.)
90 VAC max. (100 to 240 VAC), 15.2 VAC/21.6 VDC max. (24 VAC/DC)
Input offstate voltage maximum (A1, A2)
30 VAC min. (100 to 240 VAC), 12 VAC/17 VDC min. (24 VAC/DC)
2 mA max.
195 mA max. at 120 VAC/140 mA max. at 240 VAC, 650 mA max. at 24 VAC/790 mA max. at 24 VDC
185 mA max. at 120 VAC/125 mA max. at 240 VAC, 570 mA max. at 24 VAC/695 mA max. at 24 VDC
Note:
Overvoltage category II applies when control or auxiliary contacts are connected to an SELV or PELV circuit.
Auxiliary Contacts
Item
Rated operational voltage
Rated impulse voltage
Dielectric strength
Overvoltage category
Operating frequency
Utilization category
TB-97, -98
(overload/fault)
Control circuit
configuration
Number of contacts
Contact
Current specifications
Rated operating current
Contact switching
capacity
Classification
---
1,500 VAC
---
50/60 Hz
D300
Electromagnetic relay
1
NO contact
AC/DC
0.6 A at 120 VAC, 0.3 A at 240 VAC
Open: 72 VA
Close: 432 VA
AC15
cULus (UL 508)
250 VAC/30 VDC
4 kV
2,000 VAC
III (See note.)
IEC (EN/IEC 60947-4-2)
250 VAC/30 VDC
Note:
Overvoltage category II applies when control or auxiliary contacts are connected to an SELV or PELV circuit.
Standard Functions
Item
Start time
Current limit
Weight
Classification
cULus (UL 508)
2 s, 5 s, 10 s, or 15 s
150%, 250%, 300%, or 350% of full-load current
Approx. 860 g
IEC (EN/IEC 60947-4-2)
Vibration and Shock Resistance
Item
Vibration
resistance
Shock resistance
Classification
Destruction
Malfunction
Destruction
Malfunction
2
cULus (UL 508)
25-m/s peak, 10 to 55 to 10 Hz, 0.19-mm single amplitude
10-m/s
2
peak, 10 to 55 to 10 Hz, 0.075-mm single amplitude
300 m/s
2
(30 G)
150 m/s
2
(15 G)
IEC (EN/IEC 60947-4-2)
Three-Phase Hybrid Soft Starter (Current Limit Start for 3-phase, 6-lead Motors)
G3JA-D
5
京公网安备 11010802033920号
EEWORLD
