572019-00100-AU datasheet, PDF

Datasheet> All Categories > The connector> 572019-00100-AU

572019-00100-AU: DescriptionD type micro connector dsub acc; CategoryThe connector; File Size74KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

572019-00100-AU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	572019-00100-AU	-	-	View	Buy Now

572019-00100-AU Overview

D type micro connector dsub acc

572019-00100-AU Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	Class D Micro Connector
RoHS	yes
product	Tools & Accessories
Number of locations/contacts	9
Contact plating	Ti
Shell plating	Ti
Type	Female
Installation style	SMD/SMT
Encapsulation	Bulk

Preview

Download Datasheet

View All

Waved Metal Gaskets

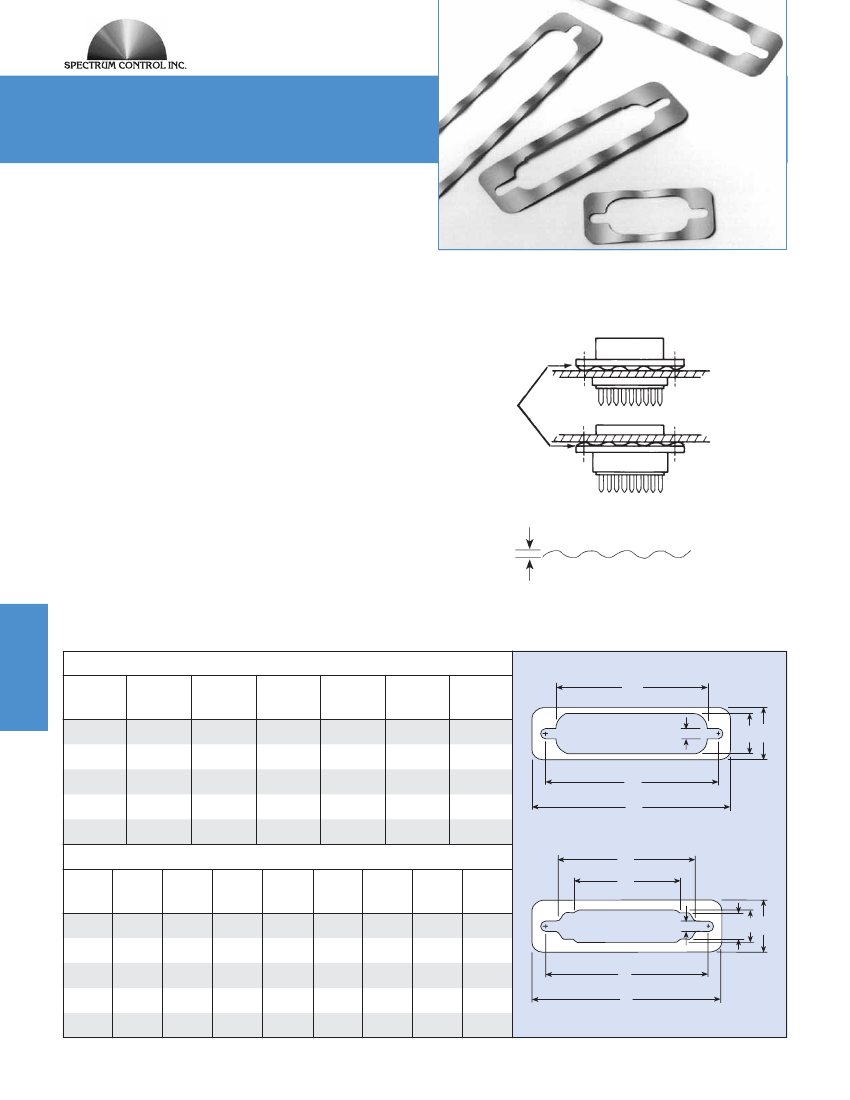

Proper mounting of an EMI filter is critical to achieving

optimum filtering performance. For applications

requiring very high attenuation, it is necessary to

fill the gaps at the mounting surface-to-connector

interface. The length of any gap must be short,

relative to the wavelength of the signal to be

attenuated. Spectrum Control supplies a line of

“waved” gaskets. This design ensures the maximum

“gap length” will not exceed the wave pitch, .200"

(5.08mm), even on surfaces with poor flatness.

This ensures maximum filter performance to 1GHz

and beyond.

Waved Metal

Grounding/Shielding

Gasket

(shown in free state)

Front Mount

Specifications

Material.

. . . . . . . . . . . . . .

.....................

Finish

. . . . . . . . . . . . . . . .

.....................

Material

Thickness.

. . . . . . . . . . . . .

Wave

Height

. . . . . . . . . . . . . . . .

.....................

Length increase

when flattened

. . . . . . . . . .

Beryllium Copper, CA 172

(per QQ-C-533)

-70 Electro tin plate, 100 micro

inches (per MIL-T-10727)

NI nickel plated, AU gold plated

.005" (.13mm) compressed

.030"+.020/-.015

(.76+.51/-.38mm)

0.008" (.20mm) per inch

Wave Height

Rear Mount

Ordering Information

Select part number by filling in “xxx”: 572019-00xxx-70

Mounting: Front mounted pin or socket connector, rear mounted pin connector.

Shell

Size

±.020

(0.51)

1.213

(30.81)

1.541

(39.14)

2.088

(53.04)

2.729

(69.32)

2.635

(66.93)

±.020

(0.51)

.984

(24.99)

1.312

(33.32)

1.852

(47.04)

2.500

(63.50)

2.406

(61.11)

±.020

(0.51)

.777

(19.74)

1.105

(28.07)

1.645

(41.78)

2.293

(58.24)

2.190

(55.63)

±.020

(0.51)

.600

(15.24)

.600

(15.24)

.600

(15.24)

.600

(15.24)

.710

(18.03)

±.005

(0.13)

.440

(11.18)

.440

(11.18)

.440

(11.18)

.440

(11.18)

.550

(13.97)

“xxx”

100

101

102

103

104

.120

(3.05)

E D

Filtered Connectors

Mounting: Rear mounted socket connectors only.

Shell

Size

±.020

(0.51)

1.213

(30.81)

1.541

(39.14)

2.088

(53.04)

2.729

(69.32)

2.635

(66.93)

±.020

(0.51)

.984

(24.99)

1.312

(33.32)

1.852

(47.04)

2.500

(63.50)

2.406

(61.11)

±.020

(0.51)

.450

(11.43)

.670

(17.02)

1.110

(28.19)

1.550

(39.37)

1.550

(39.37)

±.020

(0.51)

.660

(16.76)

.988

(25.10)

1.528

(38.81)

2.176

(55.27)

2.082

(52.88)

±.005

(0.13)

.324

(8.23)

.324

(8.23)

.324

(8.23)

.324

(8.23)

.436

(11.07)

±.005

(0.13)

.360

(9.14)

.360

(9.14)

.360

(9.14)

.360

(9.14)

.470

(11.94)

±.020

(0.51)

.600

(15.24)

.600

(15.24)

.600

(15.24)

.600

(15.24)

.710

(18.03)

“xxx”

105

106

107

108

109

.120

(3.05)

E F G

Dimensions in inches

(mm)

198

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
