51238-2013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51238-2013

51238-2013: Descriptioncrc? shielded rectangular I/O receptacle housing for female terminal, signal, 20circuits, polarization type B, polarization position B-3; CategoryThe connector The connector; File Size367KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51238-2013 Overview

crc? shielded rectangular I/O receptacle housing for female terminal, signal, 20circuits, polarization type B, polarization position B-3

51238-2013 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	CRC, SHROUDED, POLARIZATION AVAILABLE, PANEL MOUNTABLE
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Total number of contacts	20
UL Flammability Code	94V-0

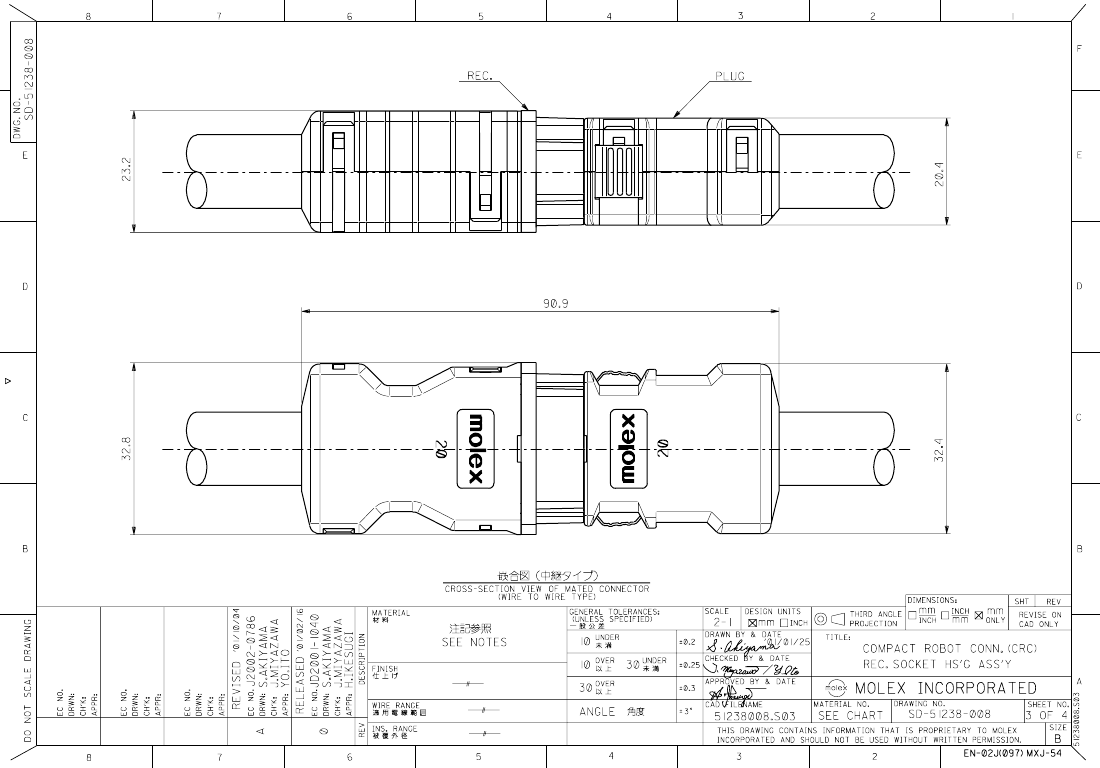

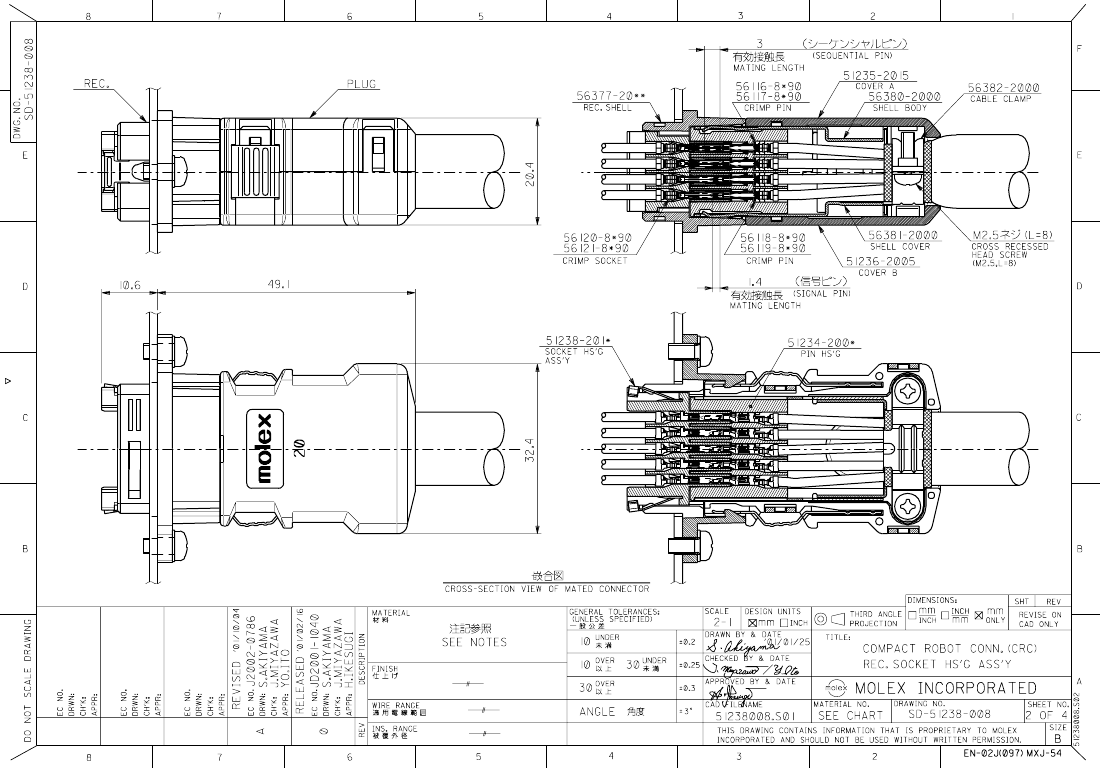

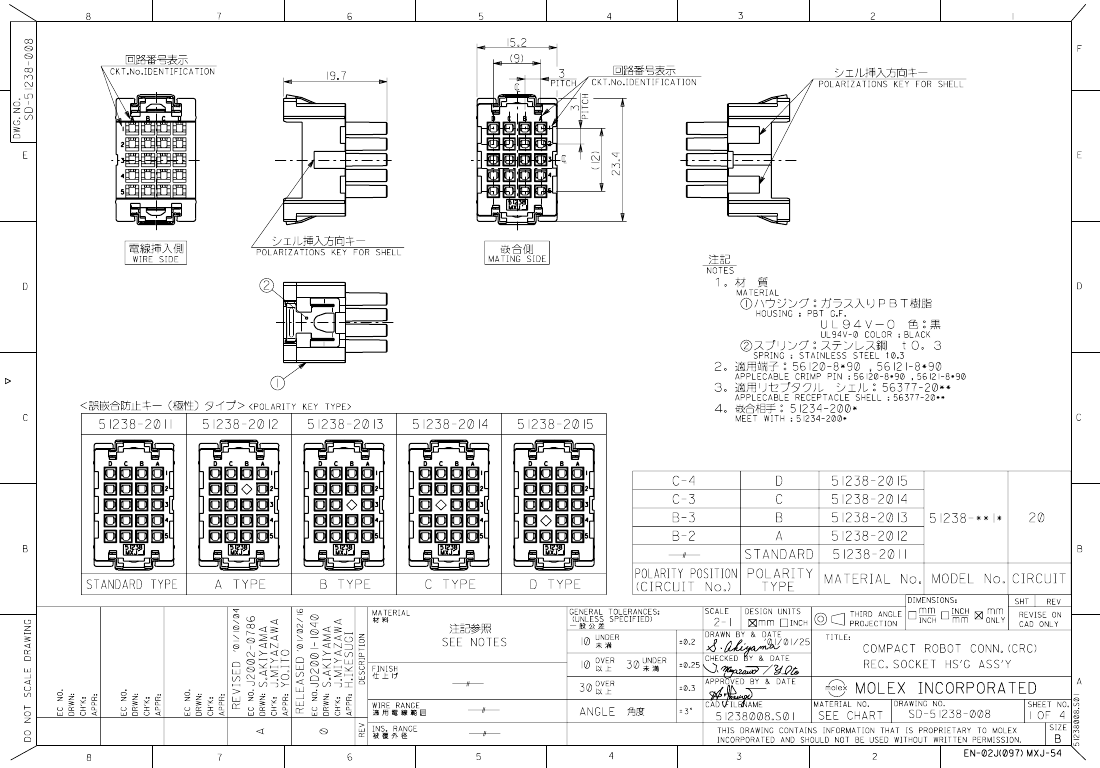

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0512382011

Active

CRC™ Shielded Rectangular I/O Receptacle Housing for Female Terminal, Signal, 20

Circuits, Polarization Type Standard

Documents:

Drawing (PDF)

Product Specification PS-51238-010 (PDF)

Product Specification PS-51238-018 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

51238

Panel-Mount, Wire-to-Wire

Housing

CRC™

N/A

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PCB Locator

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Black

100

94V-0

Receptacle

Yes

Stainless Steel

n/a

Polyester

Vertical

Tray

Front, Rear

0.118 In

3.00 mm

0.118 In

3.00 mm

Yes

N/A

-40°C to +105°C

N/A

Search Parts in this Series

51238Series

Mates With

51234-200X plug housing|55836-200X plug

assembly set

Use With

56377-200* receptacle shell|56120 and

56121 female terminal

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

1A, 2A, 3.5A, 3A

250V AC (RMS)/DC

51238-2013 Related Products

	51238-2013	51238-2012	51238-2014	51238-2015
Description	crc? shielded rectangular I/O receptacle housing for female terminal, signal, 20circuits, polarization type B, polarization position B-3	crc? shielded rectangular I/O receptacle housing for female terminal, signal, 20circuits, polarization type A, polarization position B-2	crc? shielded rectangular I/O receptacle housing for female terminal, signal, 20circuits, polarization type C, polarization position C-3	crc? shielded rectangular I/O receptacle housing for female terminal, signal, 2circuits, polarization type D, polarization position C-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	compli	compli	compliant	compli
Other features	CRC, SHROUDED, POLARIZATION AVAILABLE, PANEL MOUNTABLE	CRC, SHROUDED, POLARIZATION AVAILABLE, PANEL MOUNTABLE	CRC, SHROUDED, POLARIZATION AVAILABLE, PANEL MOUNTABLE	CRC, SHROUDED, POLARIZATION AVAILABLE, PANEL MOUNTABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Total number of contacts	20	20	20	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
