5646357-1 datasheet, PDF - EEWORLD Datasheet

5646357-1: Descriptionconn header 250pos vert 2mm; CategoryThe connector; File Size233KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5646357-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5646357-1	-	-	View	Buy Now

conn header 250pos vert 2mm

Parameter Name	Attribute value
Datasheets
5646357
Product Photos
5646357-1
RoHS Informati
5646357-1 Statement of Compliance
RoHS 2 Stateme

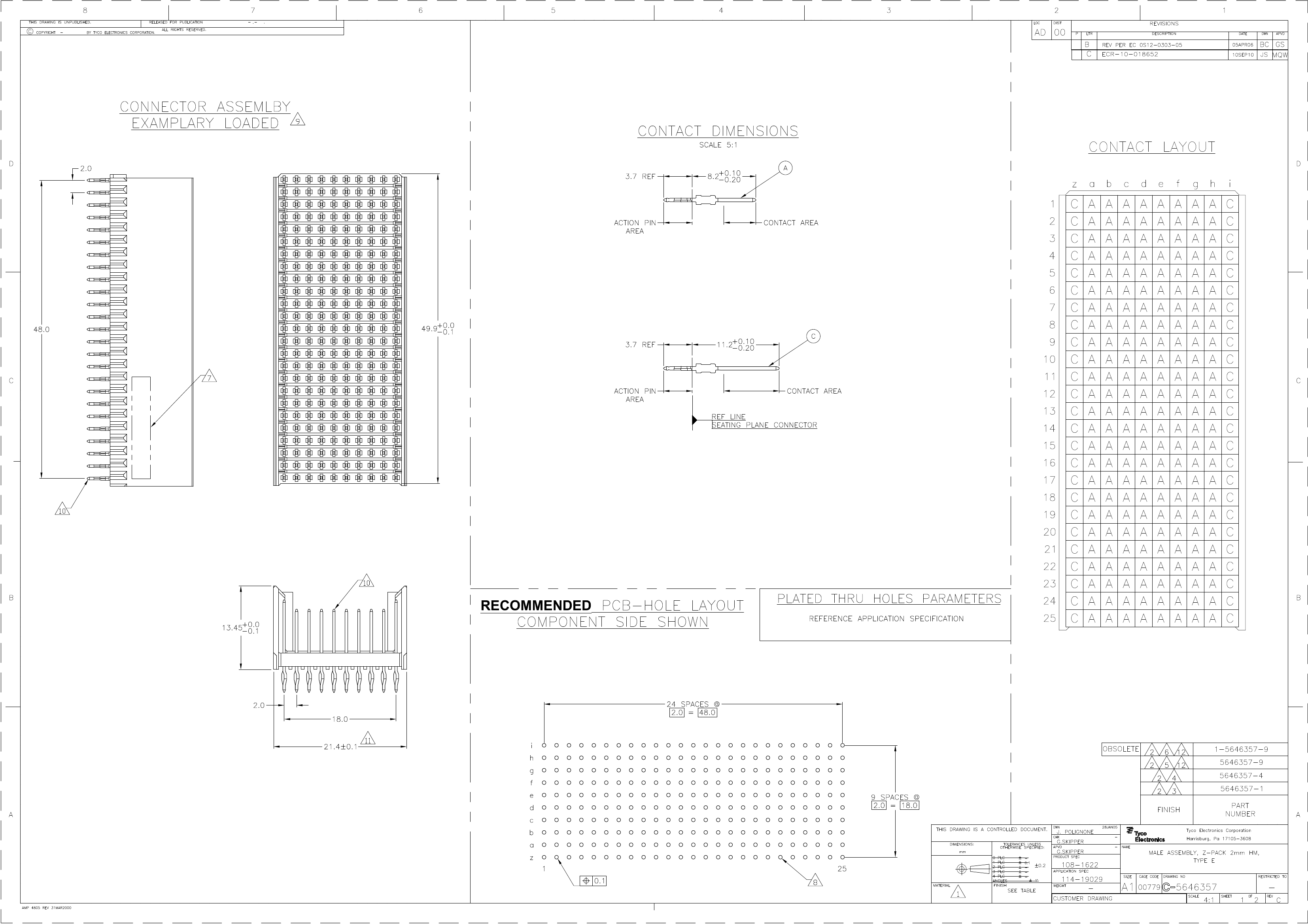

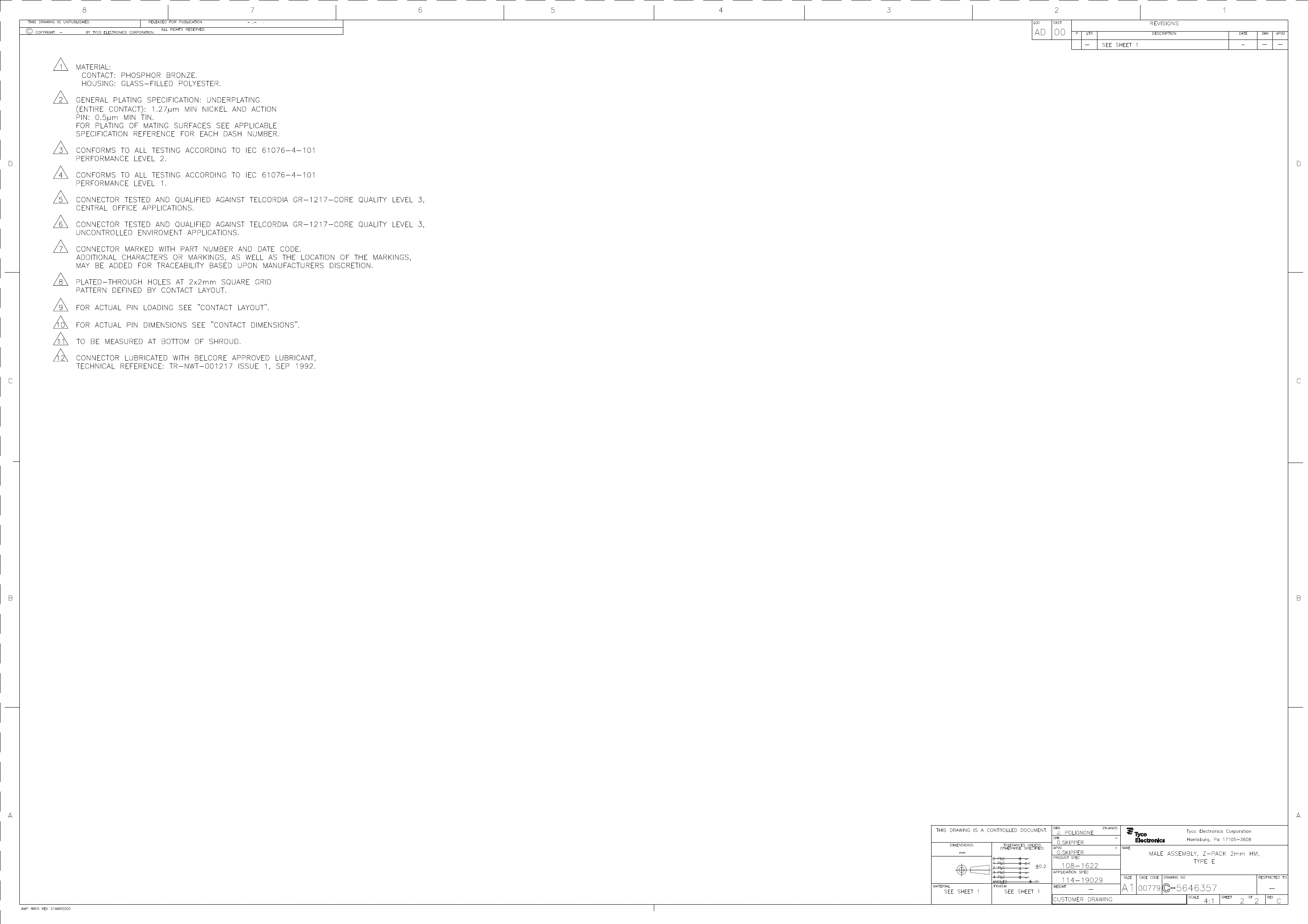

Catalog Drawings
5646 Series Type E
3D Model
5646357-1.pdf
Standard Package	10
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Header, Male Pins
Connector Style	E 25
Number of Positions	250 (200 + 50 Ground)
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	8 + 2
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.5A
Voltage Rating	750V
Operating Temperature	-55°C ~ 125°C
Features	Board Guide
Dynamic Catalog	Z-Pack Series
Mating Products	A97869-ND - CONN RCPT HM 200POS RT ANG 2MM
Other Names	5646357-1-ND56463571A97863

	5646357-1	5646357-9
Description	conn header 250pos vert 2mm	2mm HM asy,T-B,hdr,10r,250,lub
Standard Package	10	120
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard	Backplane Connectors - Hard Metric, Standard
Packaging	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins
Connector Style	E 25	E 25
Number of Positions	250 (200 + 50 Ground)	250 (200 + 50 Ground)
Number of Positions Loaded	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	8 + 2	8 + 2
Mounting Type	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi
Connector Usage	Backplane	Backplane
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Current Rating	1.5A	1.5A
Voltage Rating	750V	750V
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C
Mating Products	A97869-ND - CONN RCPT HM 200POS RT ANG 2MM	5646487-9-ND - 2MMHM,8R,T-E,W/SHLD,HM15 LUBE
