5646533-1 datasheet, PDF - EEWORLD Datasheet

5646533-1: Descriptionconn header 146pos vert 2mm; CategoryThe connector; File Size213KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5646533-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5646533-1	-	-	View	Buy Now

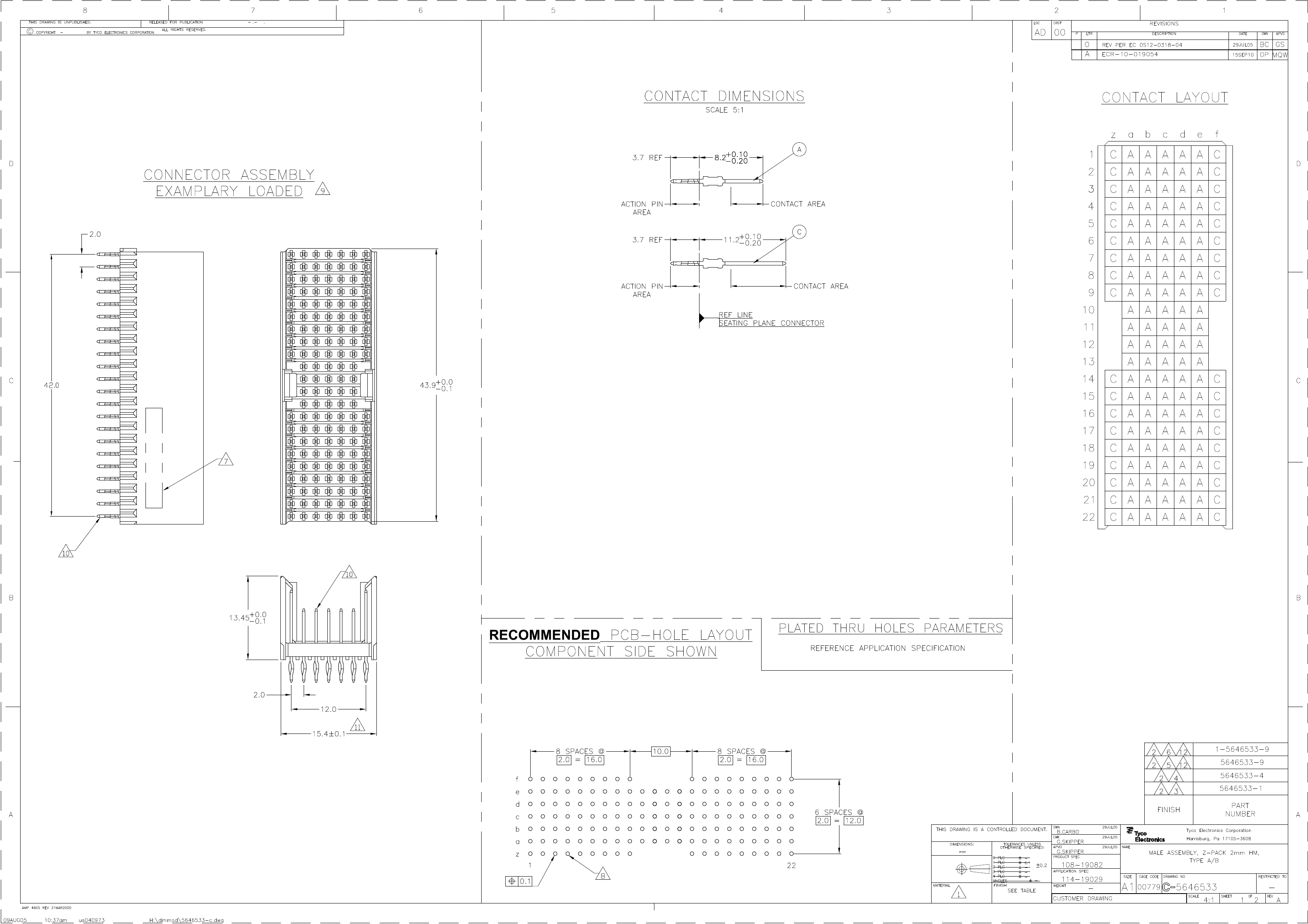

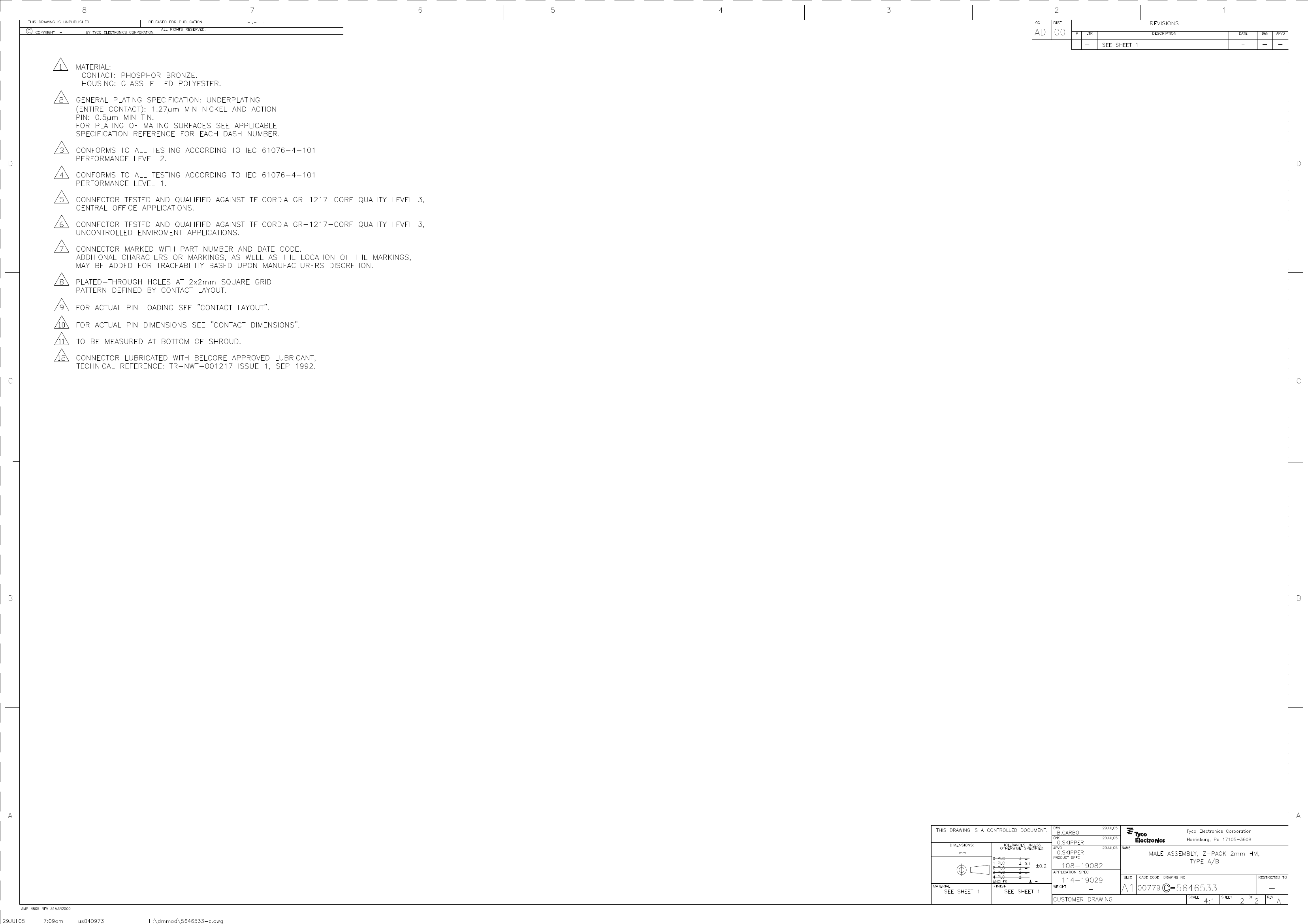

conn header 146pos vert 2mm

Parameter Name	Attribute value
Datasheets
5646533
Product Photos
5646533-1
Standard Package	11
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Header, Male Pins
Connector Style	AB 22
Number of Positions	146 (110 + 36 Ground)
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5 + 2
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.5A
Voltage Rating	500V
Operating Temperature	-55°C ~ 125°C
Features	-
Dynamic Catalog	Z-Pack Series
Mating Products	646489-1-ND - CONN 2MM HM RCPT 110POS R/A GOLD
Other Names	56465331A97814

	5646533-1
Description	conn header 146pos vert 2mm
Standard Package	11
Category	Connectors, Interconnects
Family	Backplane Connectors - Hard Metric, Standard
Packaging	Tube
Connector Type	Header, Male Pins
Connector Style	AB 22
Number of Positions	146 (110 + 36 Ground)
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5 + 2
Mounting Type	Through Hole
Terminati	Press-Fi
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.5A
Voltage Rating	500V
Operating Temperature	-55°C ~ 125°C
Dynamic Catalog	Z-Pack Series
Mating Products	646489-1-ND - CONN 2MM HM RCPT 110POS R/A GOLD
Other Names	56465331A97814
