HTF546AG-12.80MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> HTF546AG-12.80MHZ

Preview

HTF546AG-12.80MHZ: DescriptionHCMOS Output Clock Oscillator, 12.8MHz Nom, DIP-14/4; CategoryPassive components oscillator; File Size41KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

HTF546AG-12.80MHZ Overview

HCMOS Output Clock Oscillator, 12.8MHz Nom, DIP-14/4

HTF546AG-12.80MHZ Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	4.6%
Manufacturer's serial number	HTF546AG
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	12.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	20.8mm x 13.2mm x 8.4mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

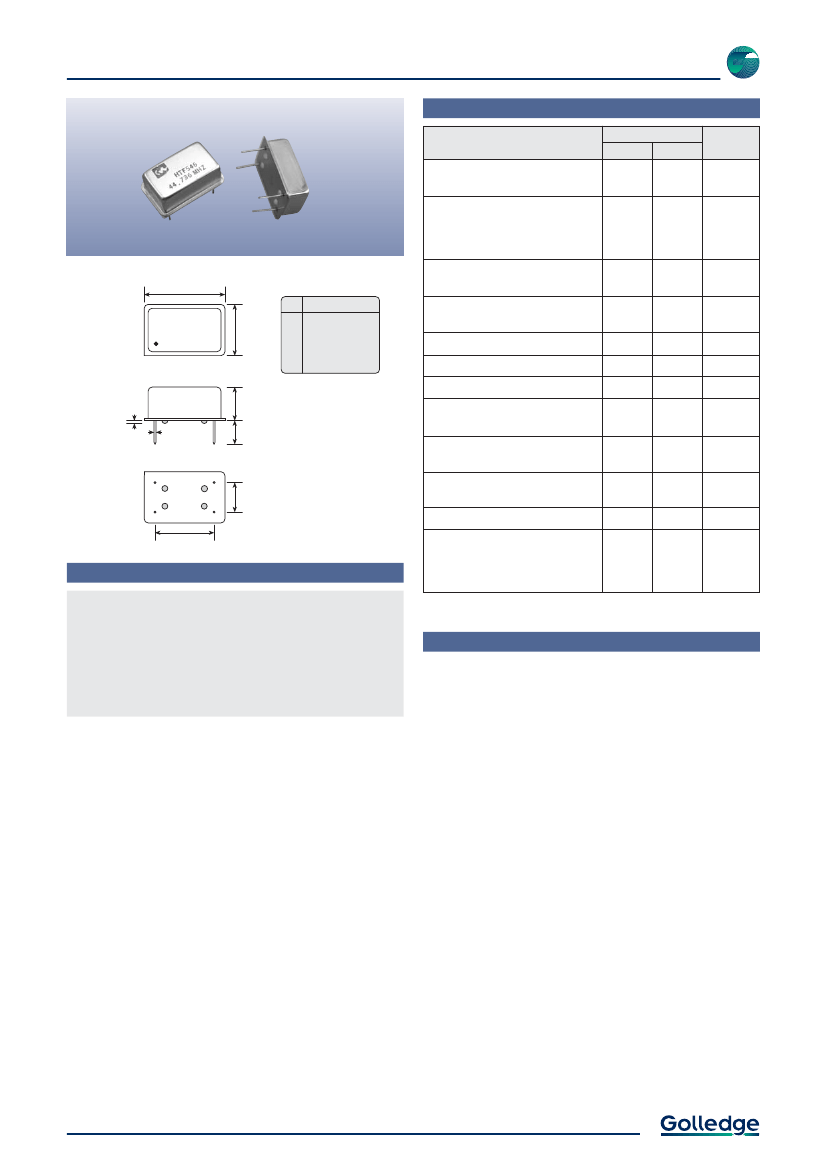

5V HCMOS TCXO Stratum 3

HTF546AG & HTV546AG

Specifications

Product

HTF

12.80 ~ 100MHz

Frequency stability:

±4.6ppm

(inclusive of calibration tolerance

temperature, voltage, load, 10years

ageing, shock & vibration)

HTV

Option

Codes

Parameters

Frequency range:

20.80

(max)

13.20

(max)

1

7

8

14

CONNECTION

Not connected or

Freq adjustment

Temperature range:

0 to +70 C

Other

specify

Storage temperature range:

-40 to +85 C

Supply voltage (V

DD

):

+5.0V (±5%)

Supply current:

Driving ability:

35mA max

15pF HCMOS

Ground

Output

Supply

0.80

0.46Ø

8.40

(max)

6.00

(min)

Logic levels:

‘0’

level = 0.4V max

‘1’

level = 90%V

DD

min

‘0’

level = 4.0mA

‘1’

level = -4.0mA

Output current:

1

14

7

8

7.62

Waveform symmetry:

45:55 max at 2.5V

Rise / fall time:

Scale 1:1

5ns max

15.24

Features

Frequency adjustment:

None

±10ppm min, +2.5 ±2V

10k input impedance

±10% linearity

Standard.

Optional - Please specify required code(s) when ordering

«

Stratum 3 compliant

HCMOS output

Suitable as SONET/SDH timing source

Excellent frequency stability

Ordering Information

Product name + frequency

eg:

HTF546AG 19.440MHz

HTV546AG 44.7360MHz

Option code X (eg HTV546AG/X) denotes a custom spec.

Tel:

+44 1460 256 100

18 Feb 2009

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
