EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
Luminosity white Color LED
59-14 UWD/TR8
Features
․Super
luminosity white LED.
․Built
in 4 LED chips.
․Wide
viewing angle.
․Soldering
methods: Reflow soldering.
․High
performance.
․Package
in 12mm tape on 7〞diameter reel.
․Pb-free.
․The
product itself will remain within RoHS compliant
version.
Descriptions
․The
59-14 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Amusement
equipment.
․Information
boards.
․Flashlight
for digital camera of cellular phone.
․Lighting
for small size device.
Device Selection Guide
Chip
Lens Color
Material
InGaN
Emitted Color
White
Yellow diffused
Everlight Electronics Co., Ltd.
Device No. :
http://www.everlight.com
Prepared date: 07-26-2005
Rev. 2
Prepared by: Jeff Tsai
Page: 1 of 10
EVERLIGHT ELECTRONICS CO.,LTD.
59-14 UWD/TR8

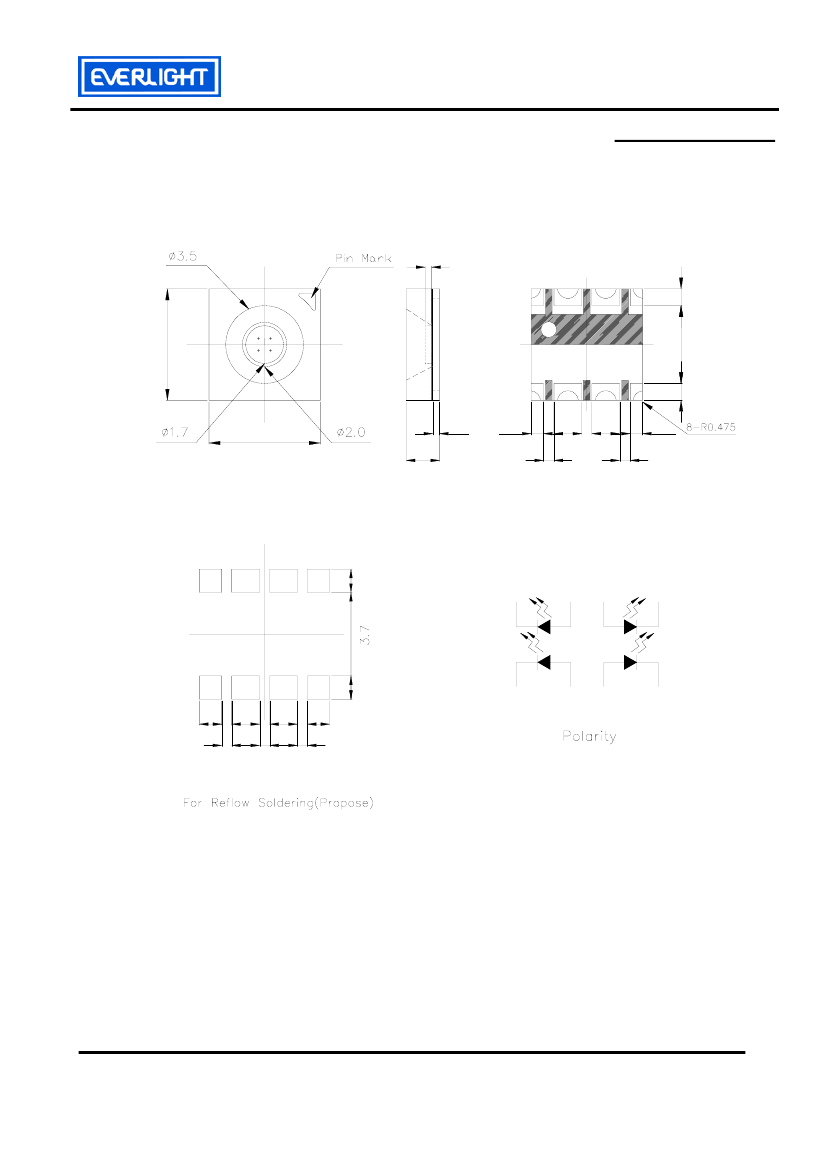

Package Outline Dimensions
0.3
(1)
(2)
(3)
(4)
5.0
(5)
(6)
(7)
(8)
5.0
1.5
0.3
0.55
1.25
0.475
1.25
0.475
0.55
1.05
(1)
(2)
(3)
(4)
1.05
(5)
(6)
(7)
(8)
1.0
1.25
1.25
1.0
0.45
0.45
0.45
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. :
http://www.everlight.com
Prepared date: 03-Nov-2004
Rev. 1.0
Page: 2 of 10
Prepared by: Jeff Tsai
0.75
3.5
0.75
EVERLIGHT ELECTRONICS CO.,LTD.
59-14 UWD/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge (HBM)
Power Dissipation
Forward Current
Peak Forward Current
(Duty 1/10 @ 400ms)
Symbol
V
R
Topr
Tstg
Tsol
ESD
Pd
I
F
I
FP
Rating
5
-25 ~ +80
-40 ~ +90
260 (for 5 second)
1000
111
30
100
Unit
V
℃
℃
℃
V
mW
mA
mA
* The value are base d on the 1-die performance.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Min.
5.0
Luminous Intensity
*1
Iv
10.0
Viewing Angle
*1
Forward Voltage
*2
Typ.
8.5
25.0
60
3.3
4.4
-----
Max.
15.0
Unit
Condition
I
F
=20mA
*2
cd
45.0
-----
3.7
V
3.6
5.2
50
μA
deg
I
FP
=100mA
*2
(Duty 1/10 @ 400ms)
I
F
=20mA
*2
I
F
=20mA
*2
I
FP
=100mA
*2
(Duty 1/10 @ 400ms)
V
R
=5V
*2
2θ
1/2
-----
2.7
V
F
Forward Voltage
*2
Reverse Current
*2
I
R
-----
*1
When 4 LED dies are operated simultaneously.
*2
For each die.
Note: The products are sensitive to static electricity and care must be fully taken when
handling products.
Everlight Electronics Co., Ltd.
Device No. :
http://www.everlight.com
Prepared date: 03-Nov-2004
Rev. 1.0
Page: 3 of 10
Prepared by: Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
59-14 UWD/TR8

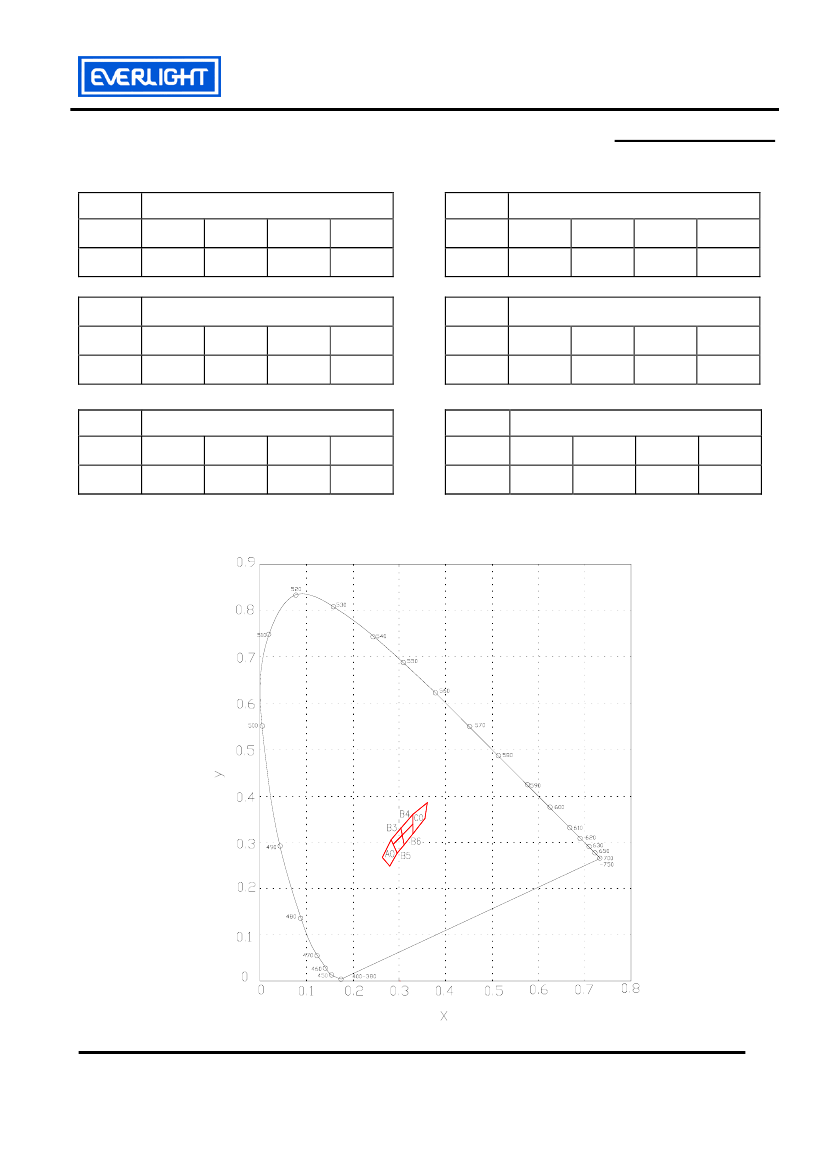

Color Ranks
x
y
0.280
0.248
Rank A0
0.264
0.283
0.267
0.305
0.296
0.276
x
y
0.287
0.295
Rank B3
0.283
0.304
0.305
0.330
0.307
0.315
Rank B4
x
y
0.307
0.315
0.304
0.330
0.330
0.360
0.330
0.339
x
y
0.296
0.276
Rank B5
0.287
0.295
0.307
0.315
0.311
0.294
x
y
0.311
0.294
Rank B6
0.307
0.330
0.315
0.339
0.330
0.318
x
y
0.330
0.318
Rank C0
0.330
0.361
0.360
0.385
0.356
0.351
*The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01).
CIE Chromaticity Diagram
Everlight Electronics Co., Ltd.
Device No. :
http://www.everlight.com
Prepared date: 03-Nov-2004
Rev. 1.0
Page: 4 of 10
Prepared by: Jeff Tsai
EVERLIGHT ELECTRONICS CO.,LTD.
59-14 UWD/TR8

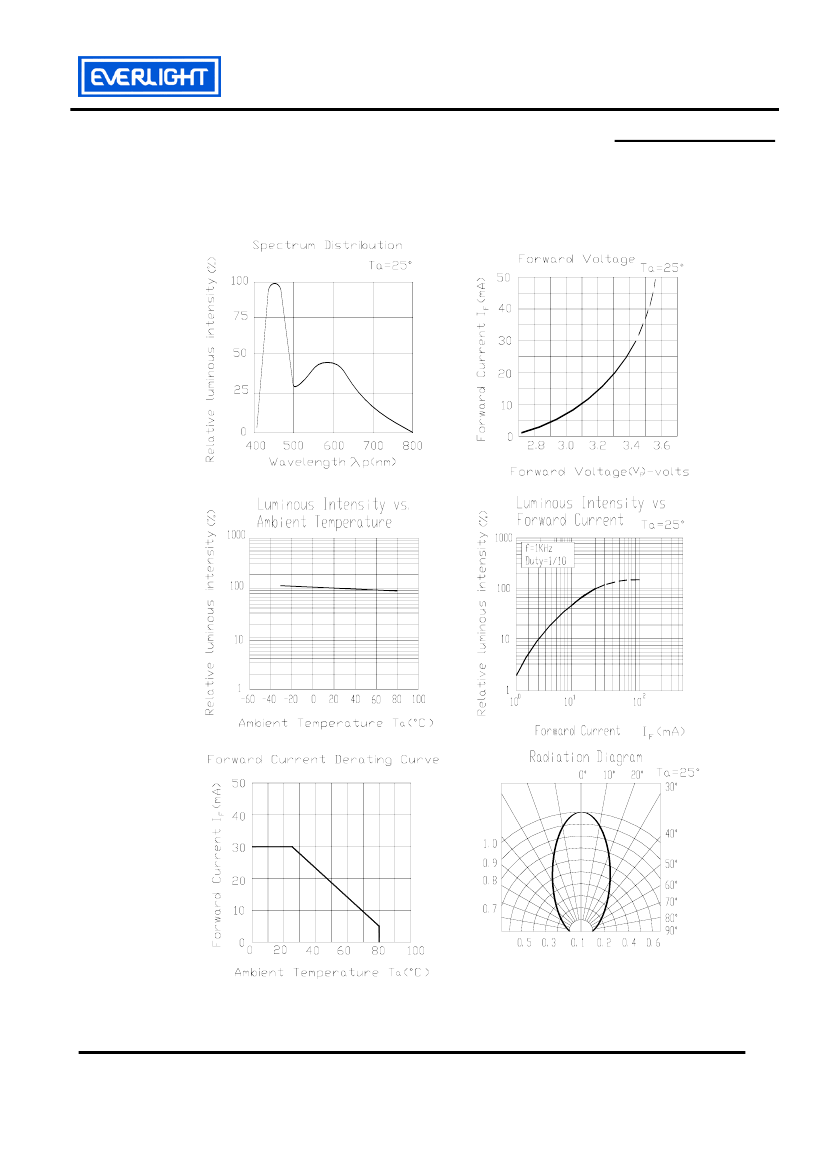

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. :
http://www.everlight.com
Prepared date: 03-Nov-2004
Rev. 1.0
Page: 5 of 10
Prepared by: Jeff Tsai
