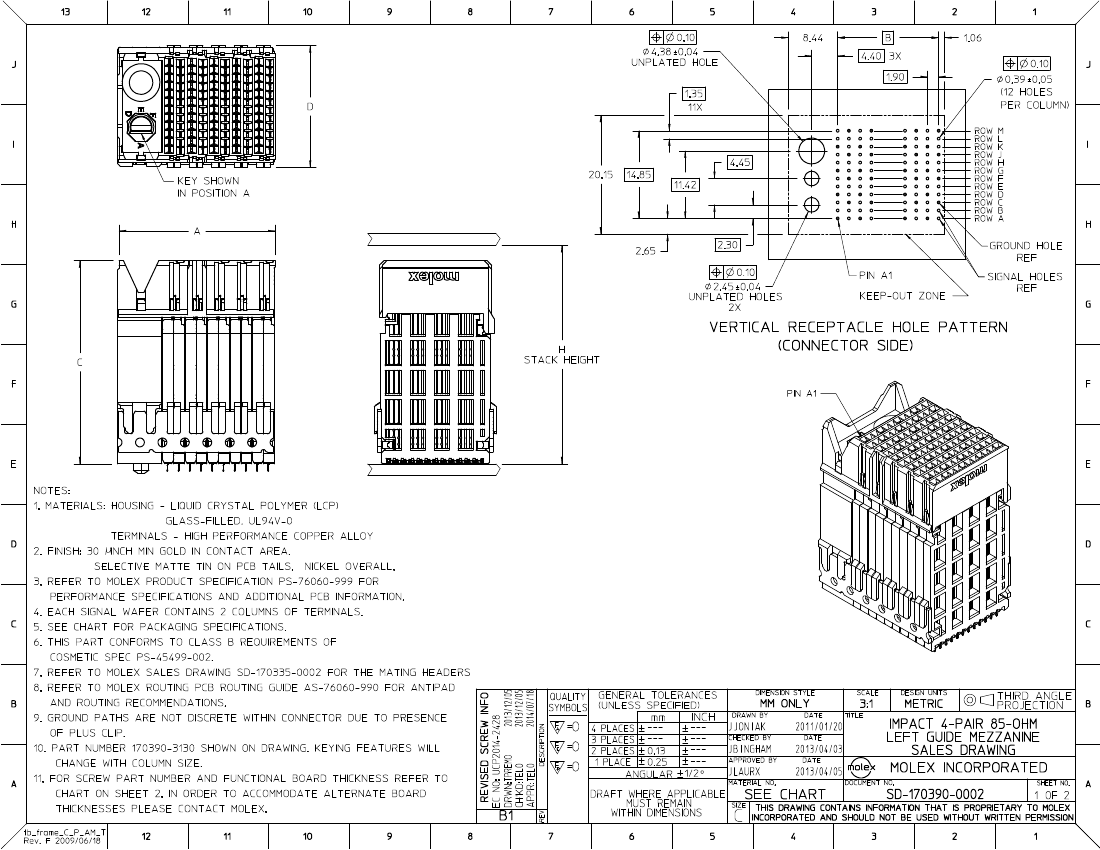

Board Connector, 144 Contact(s), 12 Row(s), Female, Straight, 0.075 inch Pitch, Press Fit Terminal, Locking, Receptacle

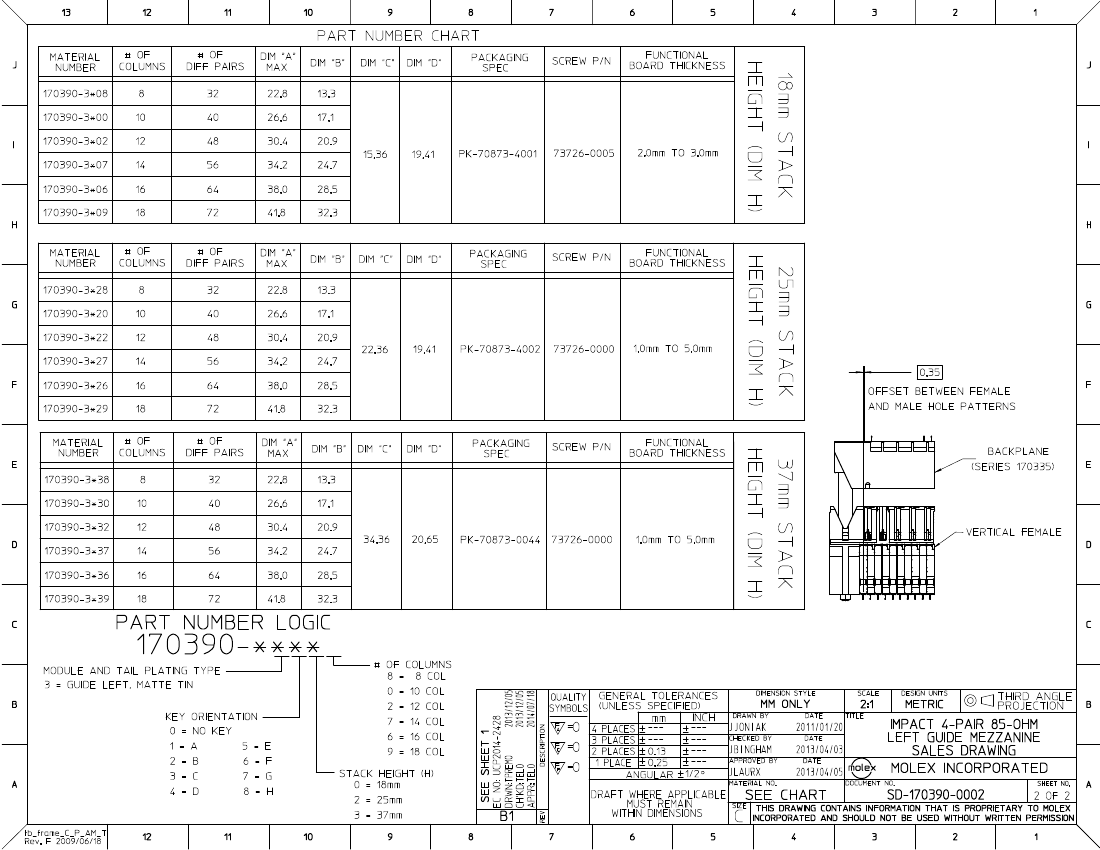

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| body width | 0.813 inch |
| subject depth | 1.353 inch |
| body length | 1.197 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Dielectric withstand voltage | 500VAC V |
| Durability | 200 Cycles |
| maximum insertion force | .3336 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Manufacturer's serial number | 170390 |
| Plug contact pitch | 0.075 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 12 |
| Number of rows loaded | 12 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 1.3462 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.75 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.905 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 144 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
