Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent
markings. These parts can be used with RoHS reflow profile.
Parts can be wave soldered, dip soldered or hand soldered
using typical lead-free soldering process with max 260°C temp.
for 5 sec.
RoHS COMPLIANT 592-0002F
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
WFB JTD N.O. 10-15-13
1
2
3

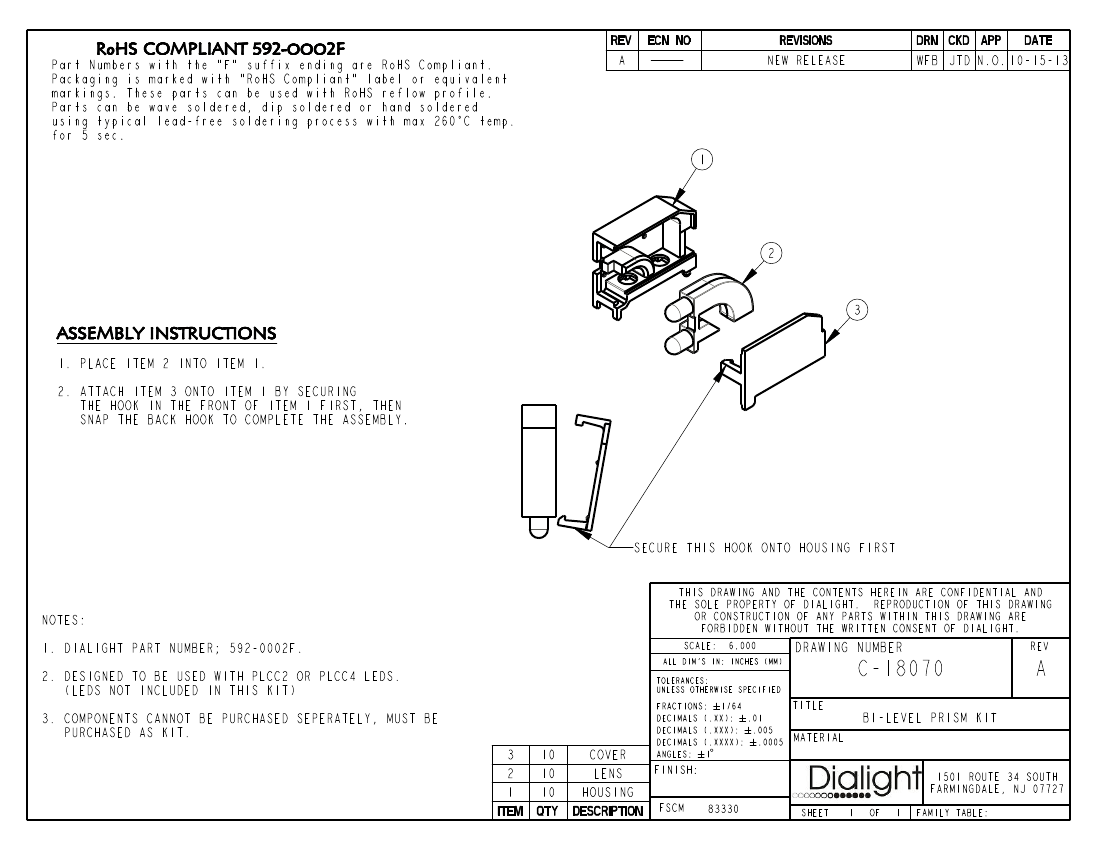

ASSEMBLY INSTRUCTIONS
1. PLACE ITEM 2 INTO ITEM 1.
2. ATTACH ITEM 3 ONTO ITEM 1 BY SECURING
THE HOOK IN THE FRONT OF ITEM 1 FIRST, THEN
SNAP THE BACK HOOK TO COMPLETE THE ASSEMBLY.
SECURE THIS HOOK ONTO HOUSING FIRST
NOTES:
1. DIALIGHT PART NUMBER; 592-0002F.
2. DESIGNED TO BE USED WITH PLCC2 OR PLCC4 LEDS.
(LEDS NOT INCLUDED IN THIS KIT)
3. COMPONENTS CANNOT BE PURCHASED SEPERATELY, MUST BE
PURCHASED AS KIT.
3
2
1
10
10
10
COVER
LENS
HOUSING
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE:
6.000
DRAWING NUMBER
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
C-18070
TITLE
A
FRACTIONS:
1/64
DECIMALS (.XX):
.01
DECIMALS (.XXX):
.005
DECIMALS (.XXXX):
.0005
ANGLES:
1
BI-LEVEL PRISM KIT
MATERIAL
FINISH:
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
83330
SHEET
1
OF
1
FAMILY TABLE:
ITEM QTY DESCRIPTION
FSCM
