594D127X9020R2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 594D127X9020R2T

594D127X9020R2T: DescriptionTantalum capacitor-solid smd 120uf 20v 10% R; CategoryPassive components capacitor; File Size90KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

594D127X9020R2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	594D127X9020R2T	-	-	View	Buy Now

594D127X9020R2T Overview

Tantalum capacitor-solid smd 120uf 20v 10% R

594D127X9020R2T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 2824
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	120 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	80 mΩ
high	3.5 mm
JESD-609 code	e3
leakage current	0.024 mA
length	7.2 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
ripple current	1770 mA
size code	2824
surface mount	YES
Delta tangent	0.08
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	6 mm

Preview

Download Datasheet

View All

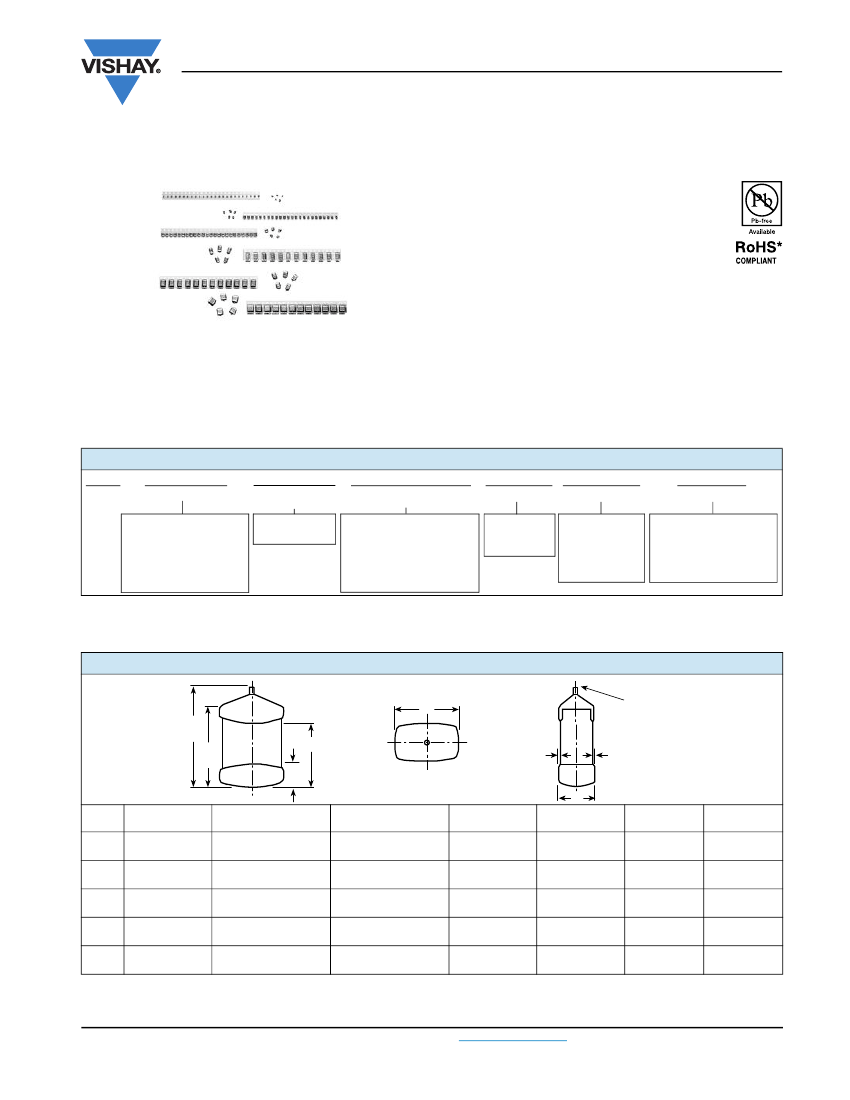

594D

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT®

, Conformal Coated, Maximum CV, Low ESR

FEATURES

•

Large capacitance rating range

•

Lowest ESR for a surface mount tantalum chip

capacitor

•

Terminations: 100% Tin (2) standard

•

8 mm, 12 mm tape and reel packaging

available per EIA 481-1 and reeling per

IEC 286-3. 7" [178 mm] standard. 13" [330 mm]

available.

•

Case code compatibility with EIA 535BAAC

CECC30801 molded chips

•

Compliant to RoHS directive 2002/95/EC

and

PERFORMANCE/ELECTRICAL CHARACTERISTICS

Operating Temperature:

- 55 °C to + 85 °C

(To + 125 °C with voltage derating)

Note

• Refer to Doc. 40088

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 WV

to 50 WV

Equivalent Series Resistance:

ESR readings measured at

100 kHz, + 25 °C from 3500 mΩ to 30 mΩ

Capacitance Range:

1.0 µF to 1500 µF

ORDERING INFORMATION

594D

TYPE

477

CAPACITANCE

This is expressed in

picofarads. The first two

digits are the significant

figures. The third is the

number of zeros to

follow.

CAPACITANCE

TOLERANCE

X0 =

20 %

X9 = ± 10 %

004

DC VOLTAGE RATING

AT + 85 °C

This is expressed in volts.

To complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an “R”

(6R3 = 6.3 V).

CASE CODE

See Ratings

and Case

Codes Table

TERMINATION

2 = 100 % tin

4 = Gold plated

8 = Solder

plated (60/40)

Special order

PACKAGING

T = Tape and reel

7" [178 mm] reel

W = 13" [330 mm] reel

See tape and reel

specifications.

Notes

• Preferred Tolerance and reel sizes are in bold.

• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

• Voltage substitutions will be marked with the higher voltage rating.

DIMENSIONS

in inches [millimeters]

Tantalum Wire

Nib Identifies

Anode (+)

Terminal

(MAX.)

(REF.)

(MAX.)

CASE

CODE

L (MAX.)

0.158

[4.0]

0.281

[7.1]

0.293

[7.5]

0.205 ± 0.016

[5.2 ± 0.4]

0.283

[7.2]

0.110 + 0.012 - 0.016

[2.8 + 0.3 - 0.4]

0.126 ± 0.012

[3.2 ± 0.3]

0.170 + 0.012/- 0.024

[4.3 + 0.3/- 0.6]

0.144 ± 0.016

[3.65 ± 0.4]

0.235 + 0.012/- 0.024

[6.0 + 0.3/- 0.6]

0.075 + 0.012 /0.024

[1.9 + 0.3/- 0.6]

0.098 ± 0.012

[2.5 ± 0.3]

0.110 ± 0.012

[2.8 ± 0.3]

0.87

[2.2] max.

0.136 + 0.012/- 0.016

[3.5 + 0.3/- 0.4]

0.031 ± 0.012

[0.80 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

0.133 ± 0.012

[1.3 ± 0.3]

0.180 ± 0.024

[4.6 ± 0.6]

D (REF.)

0.138

[3.5]

0.236

[6.0]

0.253

[6.4]

0.173

[4.4]

0.243

[6.2]

J (MAX.)

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

Notes

• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm].

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 40006

Revision: 21-Sep-10

For technical questions, contact:

tantalum@vishay.com

www.vishay.com

594D127X9020R2T Related Products

	594D127X9020R2T	594D156X0025C2T
Description	Tantalum capacitor-solid smd 120uf 20v 10% R	Tantalum capacitor-solid smd 15uf 25volts 20% C
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	, 2824	, 2813
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
capacitance	120 µF	15 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
ESR	80 mΩ	220 mΩ
high	3.5 mm	2.5 mm
JESD-609 code	e3	e3
leakage current	0.024 mA	0.0038 mA
length	7.2 mm	7.1 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	10%	20%
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT
method of packing	TR, Embossed Plastic, 7 Inch	TR, 7 INCH
polarity	POLARIZED	POLARIZED
positive tolerance	10%	20%
Rated (DC) voltage (URdc)	20 V	25 V
ripple current	1770 mA	710 mA
size code	2824	2813
surface mount	YES	YES
Delta tangent	0.08	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND	WRAPAROUND
width	6 mm	3.2 mm
