Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
General Purpose RFI Filters for High Impedance Loads at Low Current
B Series
UL Recognized
CSA Certified
VDE Approved
VB6
1
RFI Power Line Filters
VB3 / EB3
VB1 / EB1

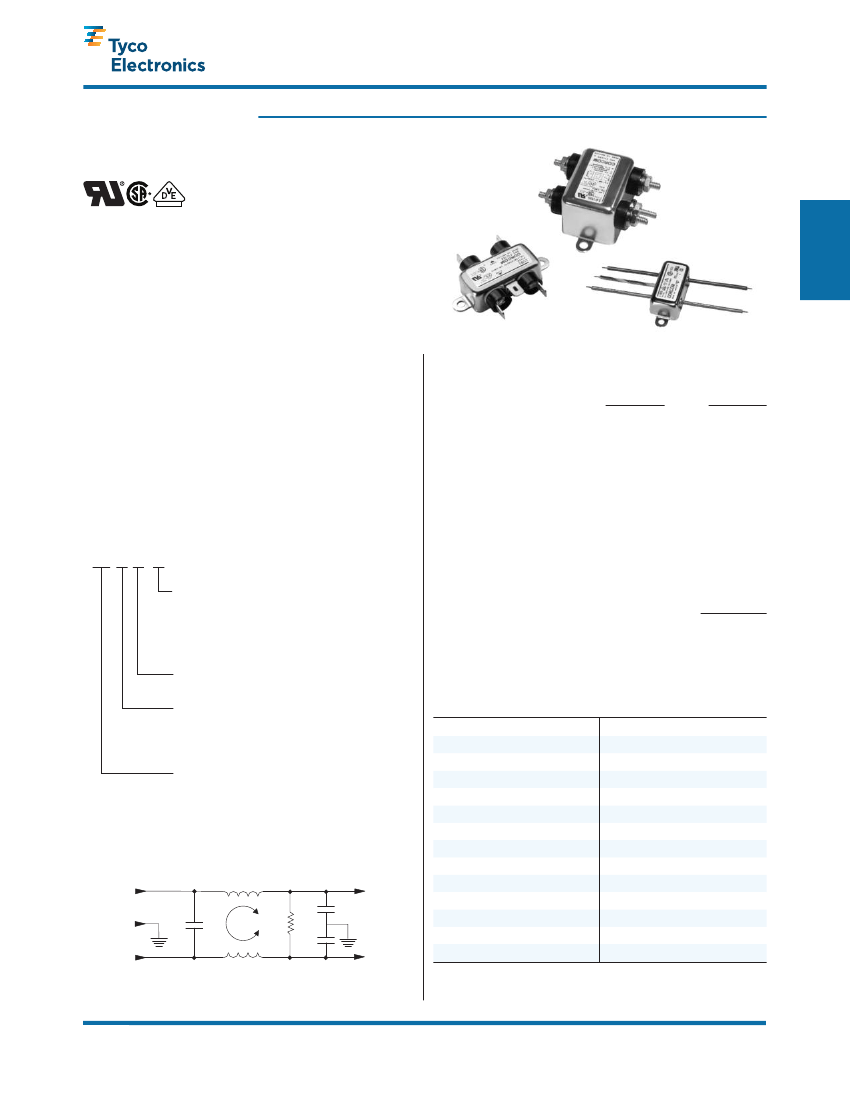

B Series
• Small size & low cost
• General purpose
• Wide variety of termination options
• Meets low leakage current requirements of VDE
portable equipment and non-patient medical
equipment
Specifications
Maximum leakage current each Line to Ground:
VB Models
EB Models
@ 120 VAC 60 Hz:
@250 VAC 50 Hz:
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
.4 mA
.7 mA
.21 mA
.36 mA
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 30A
Ordering Information
10 E B 1
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
B Series
Leakage current designation
E – Low leakage
(<0.5 mA)
V – Standard
Current Rating
1, 2, 3, 5, 10, 20 or 30A
Operating Frequency:
Rated Current:
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Available Part Numbers
1VB1
1VB3
2VB1
2VB3
3VB1
3VB3
5VB1
5VB3
10VB1
10VB3
10VB6
20VB1
20VB6
30VB6
1EB1
1EB3
2EB1
2EB3
3EB1
3EB3
5EB1
5EB3
10EB1
10EB3
20EB1
Electrical Schematic
LINE
LOAD
15
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
General Purpose RFI Filters for High Impedance/ Low Current
(continued)
B Series

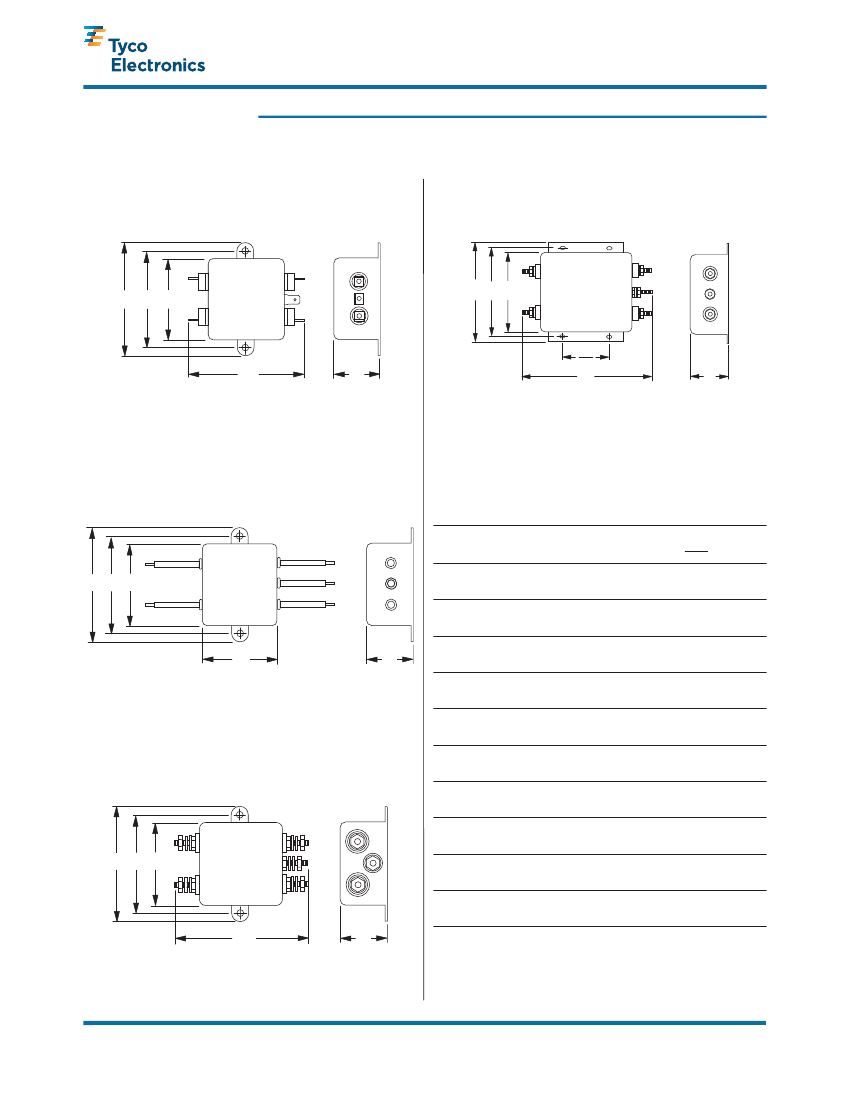

Case Styles
B1
30VB6
E
D B
E D B
2.00
50.8
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Holes (2):
A
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.188 [4.75] Dia.
Typical Dimensions:
Terminals (5):
Mounting Slots (4):
A
C
8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
.250 x .156 [6.35
x 3.96]
B3
Blue
Blue
Green/Yellow
Brown
Brown
Case Dimensions
Part No.
A
(max)
B
(max)
C
(max)
± .015
± .38
D
E
(max)
E D B
Typical Dimensions:
Wire leads (5):
Mounting Holes (2):
A
4.0 [101.6] Min. AWG18, (AWG16 for 10A)
.188 [4.75] Dia.
C
10VB6 & 20VB6
E D B
2.25
57.2
0.96
24.4
2.61
66.3
1.32
33.5
2.61
10VB1, 10EB1
66.3
1.32
10VB3, 10EB3
33.5
2.72
10VB6
69.1
3.36
20VB1, 20EB1
85.3
3.46
20VB6
87.9
5.34
30VB6
135.6
1VB1, 1EB1,
2VB1, 2EB1
1VB3, 1EB3,
2VB3, 2EB3
3VB1, 3EB1,
5VB1, 5EB1
3VB3, 3EB3,
5VB3, 5EB3
1.82
46.2
1.82
46.2
1.82
46.2
1.82
46.2
1.82
46.2
1.82
46.2
1.82
46.2
2.07
52.6
2.07
52.6
3.38
85.9
0.66
16.8
0.66
16.8
0.78
193.8
0.78
19.8
1.16
29.5
1.16
29.5
1.16
29.5
1.16
29.5
1.16
29.5
1.53
38.9
2.125
53.98
2.125
53.98
2.125
53.98
2.125
53.98
2.125
53.98
2.125
53.98
2.125
53.98
2.375
60.33
2.375
60.33
3.75
95.3
2.53
64.3
2.53
64.3
2.53
64.3
2.53
64.3
2.53
6.3
2.53
64.3
2.53
64.3
2.81
71.4
2.81
71.4
4.20
106.7
A
Typical Dimensions:
Terminals (5):
Mounting Holes (4):
C
8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
.188 [4.75] Dia.
16
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
General Purpose RFI Filters for High Impedance/ Low Current
(continued)
B Series

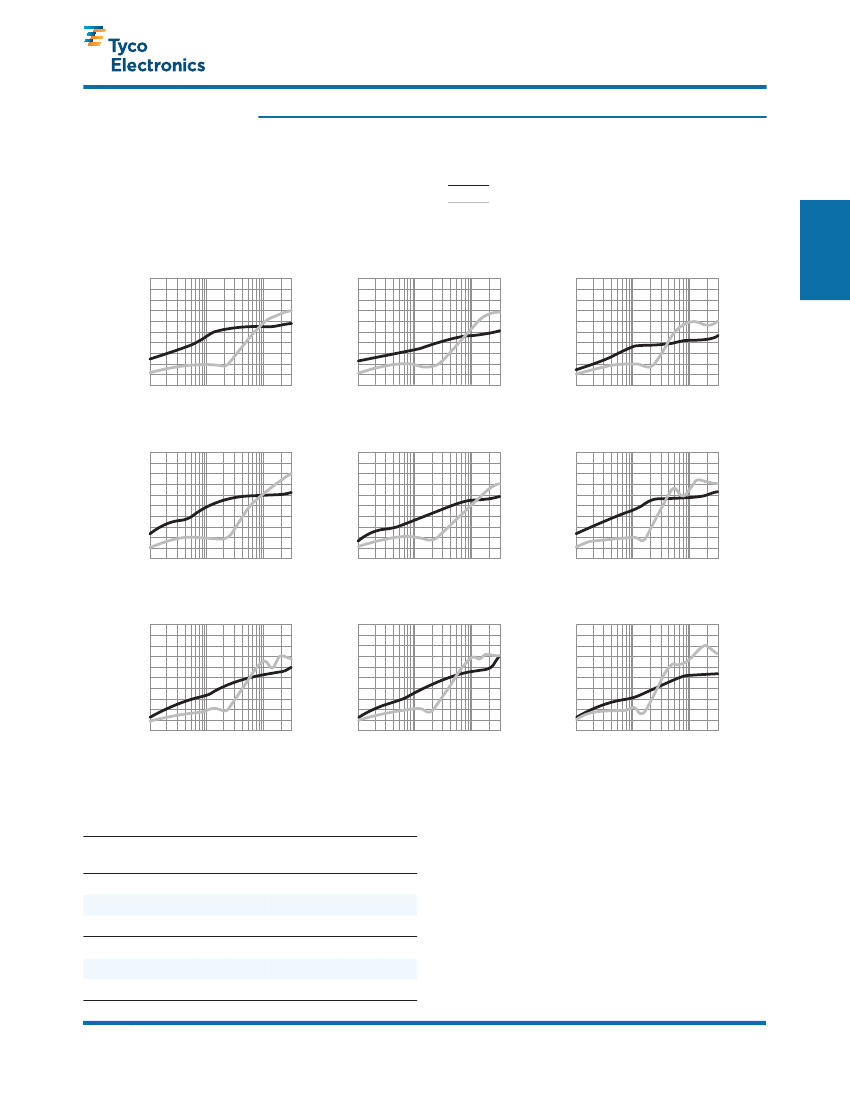

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
1EB & 3EB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
2EB, 5EB & 10EB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20EB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
1
RFI Power Line Filters
1VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
2VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
30VB
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Current
Rating
VB Models
1A, 3A
2A, 5A, 10A, 20A, 30A
EB Models
1A, 3A
2A, 5A, 10A, 20A
15
7
29
19
35
23
45
34
45
37
48
42
17
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
.15
15
7
Frequency – MHz
.5
1
5
10
30
20
38
25
50
40
50
45
30
50
48
