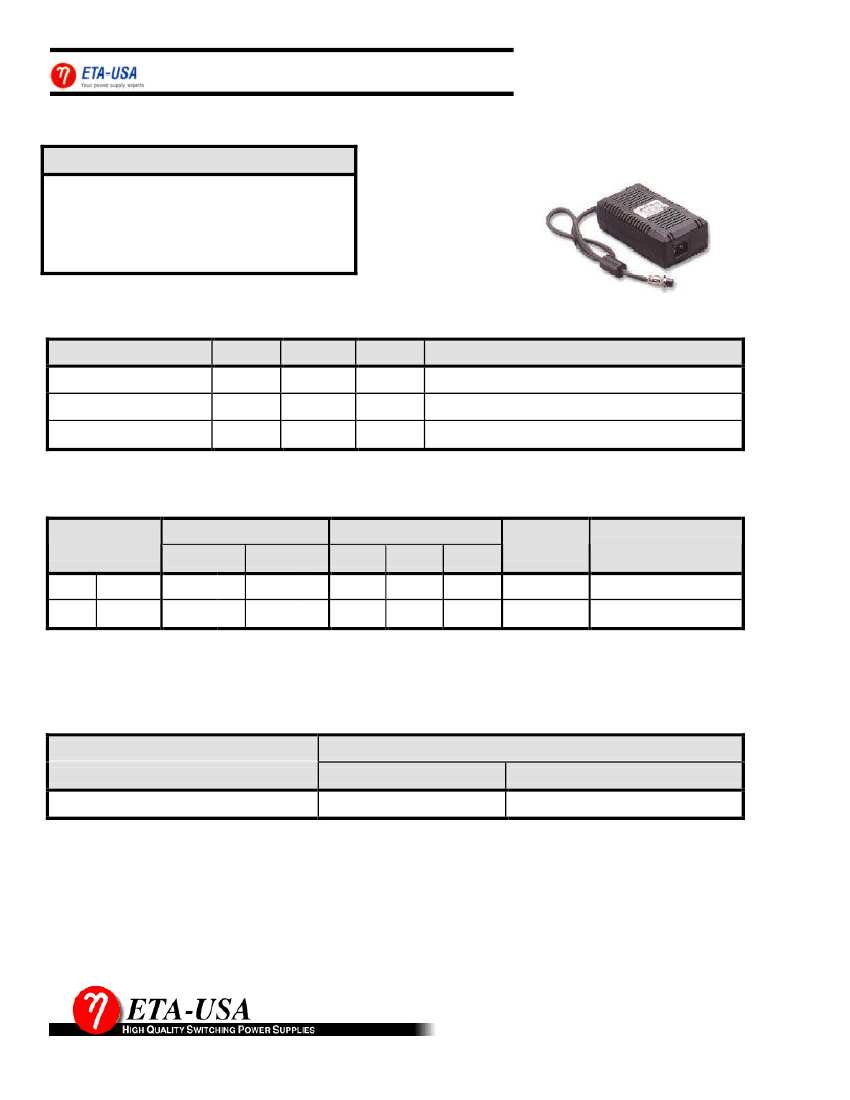

54 WATT
DUAL OUTPUT
DC/ DC SWITCHING ADAPTOR
DTB54-1212FWX-W-DC
GENERAL SPECIFICATION
This specification describes the performance
characteristics of a grounded, single
phase54 Watts, 2 output level adapter power
supply with +12V, -12V and remote control
output.
1) INPUT
Description
Input Voltage
Input Current(RMS)
Efficiency
Min.
19VDC
-
-
Typical
24VDC
-
70%
Max.
35VDC
5A
-
Condition
-
-
24VDC at full load
2) OUTPUT
+12V/2.5A; -12V/2.0A; TOTAL OUTPUT: 54W MAX.
NOMINAL
VOLTAGE
V1
V2
+12V
-12V
LIMIT VOLTAGE
MIN.
MAX.
AVERAGE LOAD
MIN.
MAX.
PEAK
RIPPLE
& NOISE
REGULATION
11.40 V
-10.80 V
12.6
V
0.2A
0A
2.5A
2.0A
0.2A
0A
120mV
120mV
±5%
±10%
-13.20 V
NOTE:
20MHz bandwidth ripple & noise is measured by using 0.1uF C.C. & 10uF/50V E.C. bypassed at the output connector.
3)PROTECTION:
3.1)
OVER VOLTAGE PROTECTION:
If any over voltage occurs, the power supply should latch off before any output exceeds its limit below:
NOMINAL
VOLTAGE(V)
+12
FROM
13
OVERVOLTAGE RANGE(V)
TO
15
The power supply will not be automatically recovered after the over voltage fault being removed. A manual
power reset is necessary.
3.2)
SHORT CIRCUIT PROTECTION
Any short circuit occurred on any DC output should not cause any damage to the power supply,
but will shut down the power supply. The power supply will not be automatically recovered after
the short circuit being removed. A manual power reset is necessary.
ETA-USA Tel:
408-778-2793
Fax:
408-779-2753
e-mail:
sales@eta-usa.com
3.3)
OVERLOAD PROTECTION
An over load protection will be effected when overloading reaches +160% MAX.
The power supply will not be automatically recovered after the overload being removed.
A manual power reset is necessary.
3.4)
VIBRATION:
10-55Hz amplitude (sweep 1 min.) less than 2G X, Y, Z 1 hour ea.
3.5)
SHOCK: <20G
4) ENVIRONMENT:
4.1)
Operating temperature:
Temperature
Relative Humidity
0 to 40 degree
20 to 90 percent, non-condensing
4.2)
SHIPPING AND STORAGE:
Temperature
Relative Humidity
-25 to +85 degree centigrade
20 to 90 percent, non-condensing
5) SAFETY REQUIREMENTS(MEET)
The adapter must comply with UL/CSA/TUV/IEC950 standards.
5.1)
DIELECTRIC WITHSTAND
--- Primary to Secondary
: 1500 VAC for 60 Sec.
--- Primary to Frame Ground : 1500 VAC for 60 Sec.
5.2)
INSULATION RESISTANCE
--- Primary to Secondary
: 50 Meg. Ohms Min. 500 VDC
--- Primary to Frame Ground : 50 Meg. Ohms Min. 500 VDC.
6) ELECTROMAGNETIC COMPABILITY
Tests for conformance to this requirements will be performed with host system.
6.1)
FCC Requirements
The adapter shall comply with the FCC rules and regulations Part 15, Subpart J, “Class B” limits.
6.2)
CE Requirements
The adapter shall confirm to the “Class B” requirements of EN55022.
7) RELIABILITY
MTBF: 80000 hours min. at max. load for 25 degree centigrade ambient temperature.
ETA-USA Tel:
408-778-2793
Fax:
408-779-2753
e-mail:
sales@eta-usa.com
8)BURN-IN TEST
100% burn-in tested at max. load under 40 +/-5 degree centigrade.

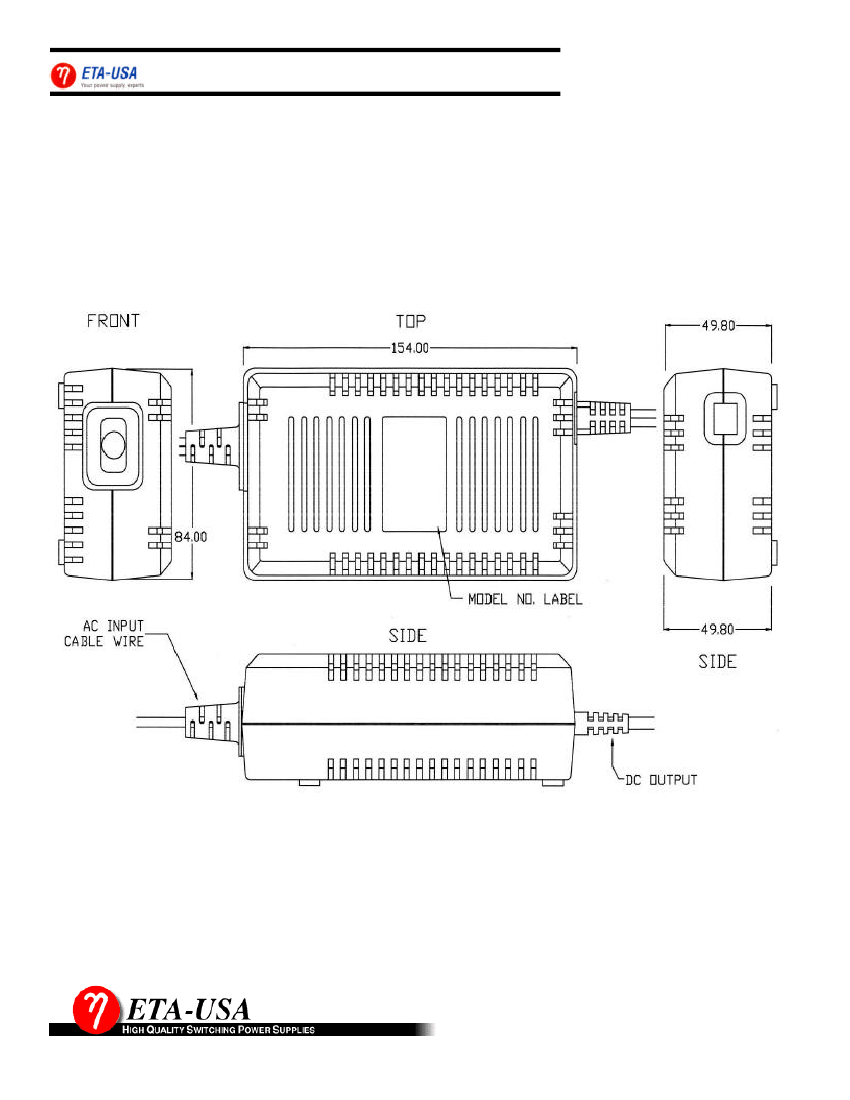

9) MECHANICAL DIMENSION
Outside dimension: 155.0(L) X 85(W) X 50(H)mm
Input connector: IEC320-C13
Output connector: Depends on your requirements.
ETA-USA Tel:
408-778-2793
Fax:
408-779-2753
e-mail:
sales@eta-usa.com
