0508717125: Descriptionring tongue double hole terminal for 2/0 awg, closed uninsulated brazed barrelstud size 1/2" (m12), oxygen-free copper, length 91.00mm (3.583; CategoryThe connector terminals; File Size72KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0508717125 Overview

ring tongue double hole terminal for 2/0 awg, closed uninsulated brazed barrelstud size 1/2" (m12), oxygen-free copper, length 91.00mm (3.583

0508717125 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	50871
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	76.28 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 03/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0508717025

Active

Ring Tongue Double Hole Terminal for 2/0 AWG, Closed Uninsulated Brazed Barrel,

Stud Size M10, Oxygen-Free Copper, Length 83.00mm (3.268")

Documents:

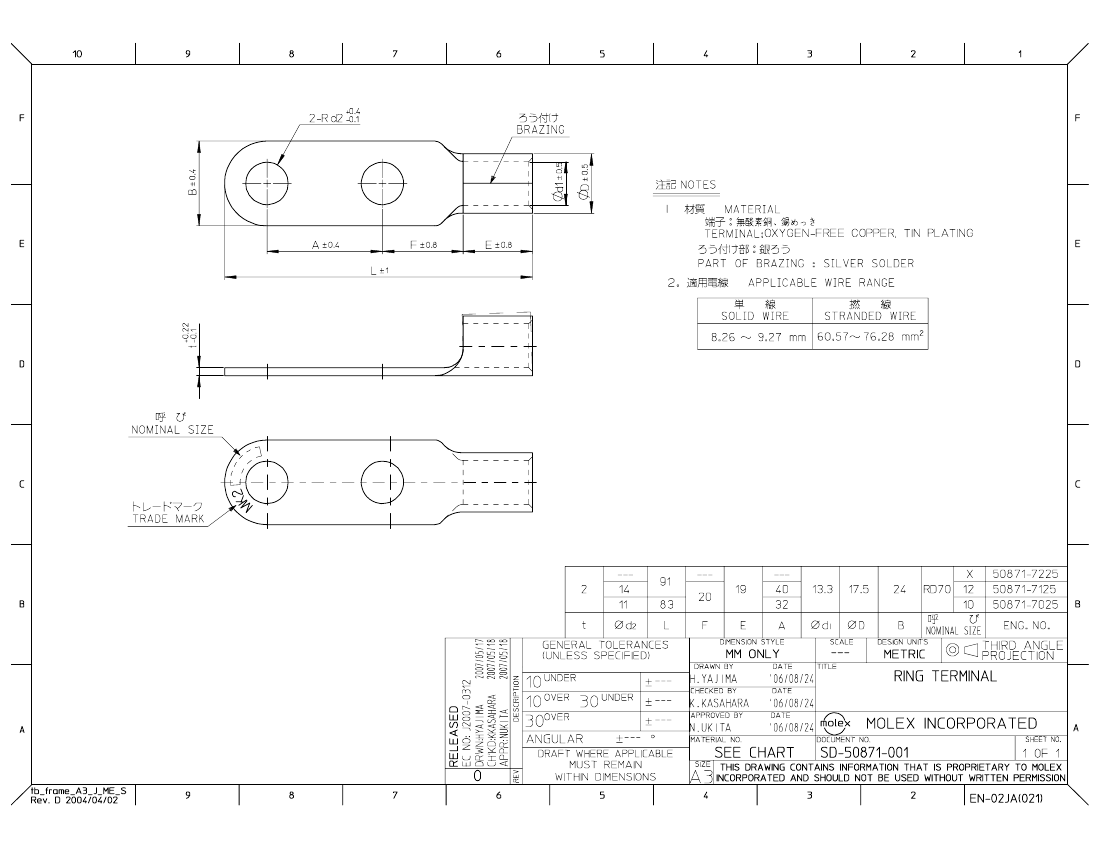

Drawing (PDF)

Product Specification PS-50871-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

50871

Yes

N/A

RD (Double-Hole)

Ring

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Closed - Brazed

None

Tin

Bag

40

1

40

1

M10

Crimp or Compression

2/0

60.57 - 76.28

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-50871-001

SD-50871-001

Search Parts in this Series

50871Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Japan

Description

Product #

Battery Type Hand 0573439004

Crimper For JIS

Terminal

This document was generated on 03/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0508717125 Related Products

	0508717125	0508717025
Description	ring tongue double hole terminal for 2/0 awg, closed uninsulated brazed barrelstud size 1/2" (m12), oxygen-free copper, length 91.00mm (3.583	ring tongue double hole terminal for 2/0 awg, closed uninsulated brazed barrelstud size m10, oxygen-free copper, length 83.00mm (3.268")
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Manufacturer's serial number	50871	50871
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL
Conductor cross section	76.28 mm2	76.28 mm2
Base Number Matches	1	1
