dual-in-line sockets open frame wire-wrap 1 / 2 / 3 / 4 level

Preview

Download Datasheet

View All

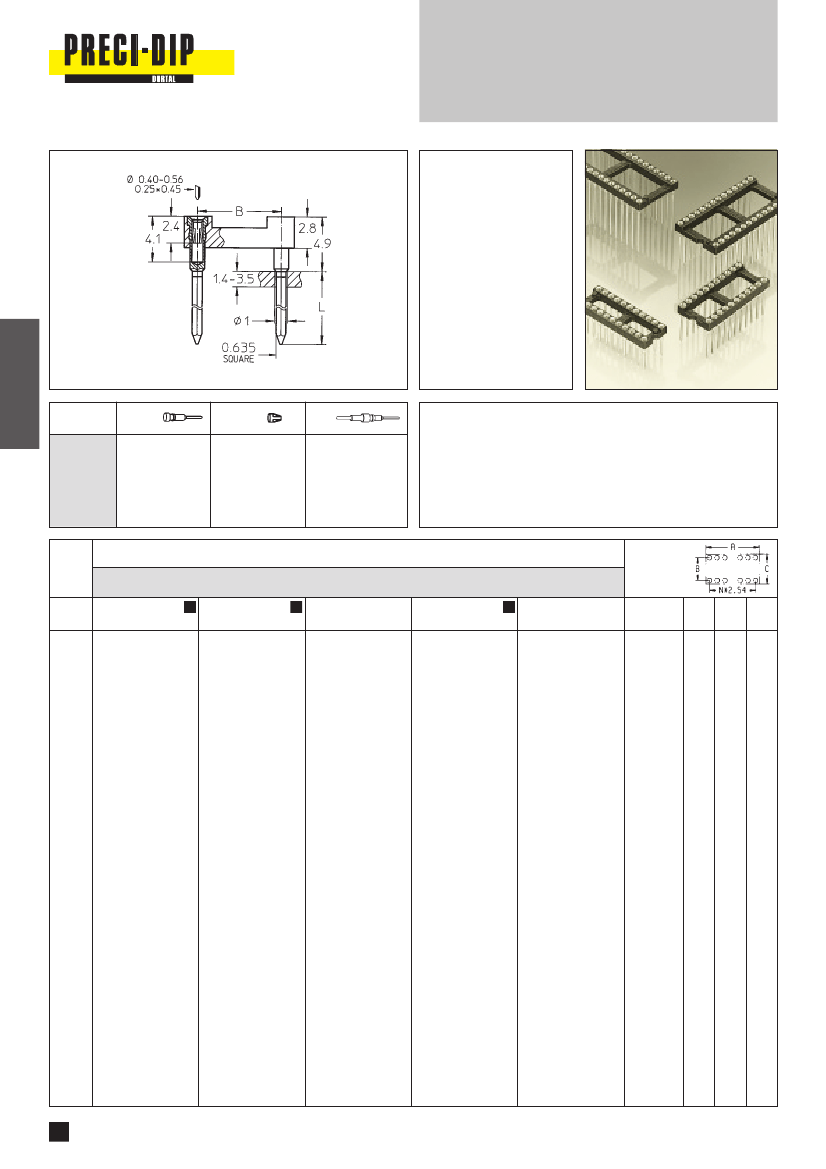

Series 121 / 122 / 123 / 124

Dual-in-line sockets

Open frame

Wire-wrap 1 / 2 / 3 / 4 level

Solderless wire-wrap ter-

minals are firmly locked in

the insulator body to

withstand torque of

wrapping tool

Length of terminal for

one-level wrapping

two-level wrapping

three-level wrapping

four-level wrapping

Insertion characteristics:

4-finger standard

Platings

Sleeve

0.25

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.75

µm

0.25

µm

0.75

µm

Sn Pb

Ordering information

For standard versions see table (order codes)

Platings available:

Series 121: 93

123: 13, 91, 93, 99

122: 13, 91, 93, 99

124: 93

Replace

with required plating code

No.

poles

WW-1 level

L = 6.6 mm

121-93-210-41-001

121-93-304-41-001

121-93-306-41-001

121-93-308-41-001

121-93-310-41-001

121-93-312-41-001

121-93-314-41-001

121-93-316-41-001

121-93-318-41-001

121-93-320-41-001

121-93-322-41-001

121-93-324-41-001

121-93-328-41-001

121-93-420-41-001

121-93-422-41-001

121-93-424-41-001

121-93-428-41-001

121-93-432-41-001

121-93-610-41-001

121-93-624-41-001

121-93-628-41-001

121-93-632-41-001

121-93-636-41-001

121-93-640-41-001

121-93-642-41-001

121-93-648-41-001

121-93-650-41-001

121-93-652-41-001

121-93-950-41-001

121-93-952-41-001

121-93-964-41-001

Order Codes

Plating: see ordering information

WW-2 levels

L = 9.40 mm

122-xx-210-41-001

122-xx-304-41-001

122-xx-306-41-001

122-xx-308-41-001

122-xx-310-41-001

122-xx-312-41-001

122-xx-314-41-001

122-xx-316-41-001

122-xx-318-41-001

122-xx-320-41-001

122-xx-322-41-001

122-xx-324-41-001

122-xx-328-41-001

122-xx-420-41-001

122-xx-422-41-001

122-xx-424-41-001

122-xx-428-41-001

122-xx-432-41-001

122-xx-610-41-001

122-xx-624-41-001

122-xx-628-41-001

122-xx-632-41-001

122-xx-636-41-001

122-xx-640-41-001

122-xx-642-41-001

122-xx-648-41-001

122-xx-650-41-001

122-xx-652-41-001

122-xx-950-41-001

122-xx-952-41-001

122-xx-964-41-001

WW-3 levels

L = 12.95 mm

123-xx-210-41-001

123-xx-304-41-001

123-xx-306-41-001

123-xx-308-41-001

123-xx-310-41-001

123-xx-312-41-001

123-xx-314-41-001

123-xx-316-41-001

123-xx-318-41-001

123-xx-320-41-001

123-xx-322-41-001

123-xx-324-41-001

123-xx-328-41-001

123-xx-420-41-001

123-xx-422-41-001

123-xx-424-41-001

123-xx-428-41-001

123-xx-432-41-001

123-xx-610-41-001

123-xx-624-41-001

123-xx-628-41-001

123-xx-632-41-001

123-xx-636-41-001

123-xx-640-41-001

123-xx-642-41-001

123-xx-648-41-001

123-xx-650-41-001

123-xx-652-41-001

123-xx-950-41-001

123-xx-952-41-001

123-xx-964-41-001

WW-4 levels

L = 16 mm

124-93-210-41-002

124-93-304-41-002

124-93-306-41-002

124-93-308-41-002

124-93-310-41-002

124-93-312-41-002

124-93-314-41-002

124-93-316-41-002

124-93-318-41-002

124-93-320-41-002

124-93-322-41-002

124-93-324-41-002

124-93-328-41-002

124-93-420-41-002

124-93-422-41-002

124-93-424-41-002

124-93-428-41-002

124-93-432-41-002

124-93-610-41-001

124-93-624-41-002

124-93-628-41-002

124-93-632-41-002

124-93-636-41-002

124-93-640-41-002

124-93-642-41-002

124-93-648-41-002

124-93-650-41-002

124-93-652-41-002

124-93-950-41-002

124-93-952-41-002

124-93-964-41-002

Insulator

dimen-

sions

See

page 50

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

aFig.

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

aFig.

12a

Fig. 13

Fig. 14

Fig. 15

Fig. 16

aFig.

16a

Fig. 17

Fig. 18

Fig. 19

Fig. 20

Fig. 21

Fig. 22

Fig. 23

Fig. 24

Fig. 25

Fig. 26

Fig. 27

Fig. 28

12.6

5.0

7.6

10.1

12.6

15.2

17.7

20.3

22.8

25.3

27.8

30.4

35.5

25.3

27.8

30.4

35.5

40.6

12.6

30.4

35.5

40.6

45.7

50.6

53.2

60.9

63.4

65.9

5.08

7.62

10.16

15.24

7.6

10.1

12.6

17.7

63.4 22.86 25.3

65.9 22.86 25.3

81.1 22.86 25.3

Products not available from stock. Please consult PRECI-DIP.
