Part Number

Search

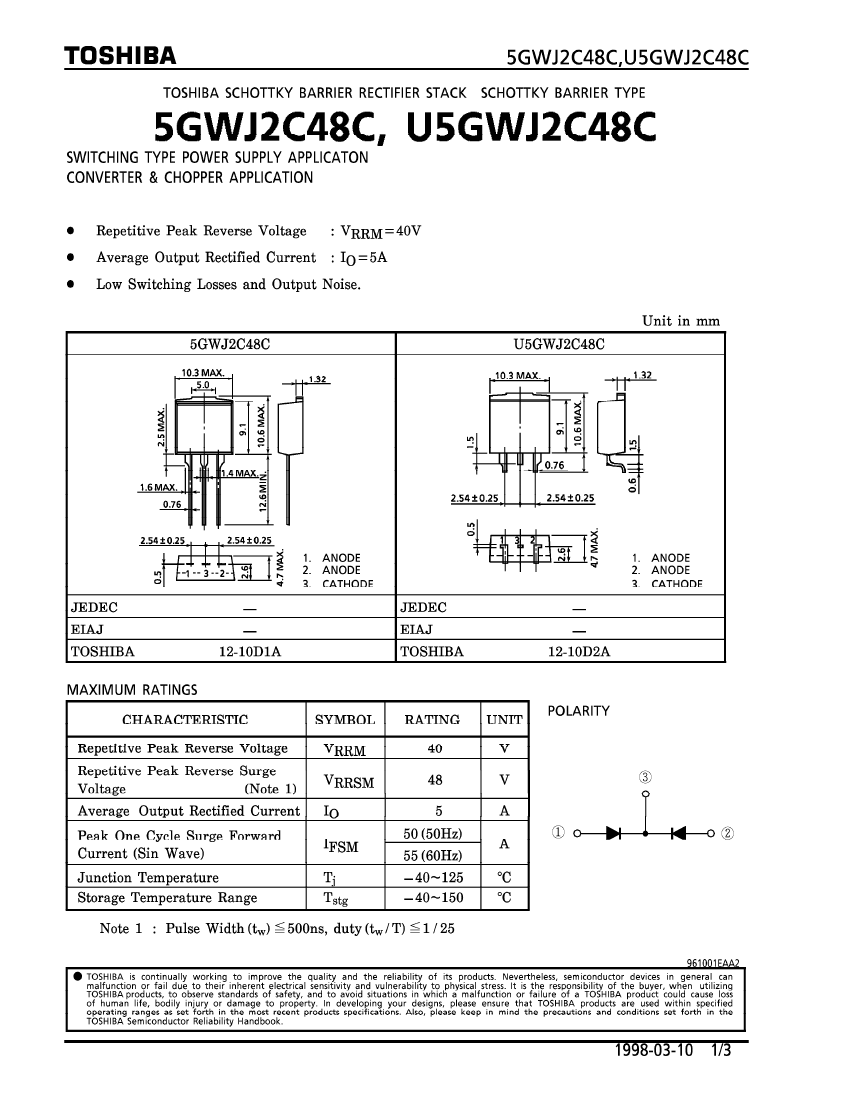

5GWJ2C48C

Description
schottky barrier type (switching type power supply, converter & chopper applications)
CategoryDiscrete semiconductor    diode
File Size182KB,3 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

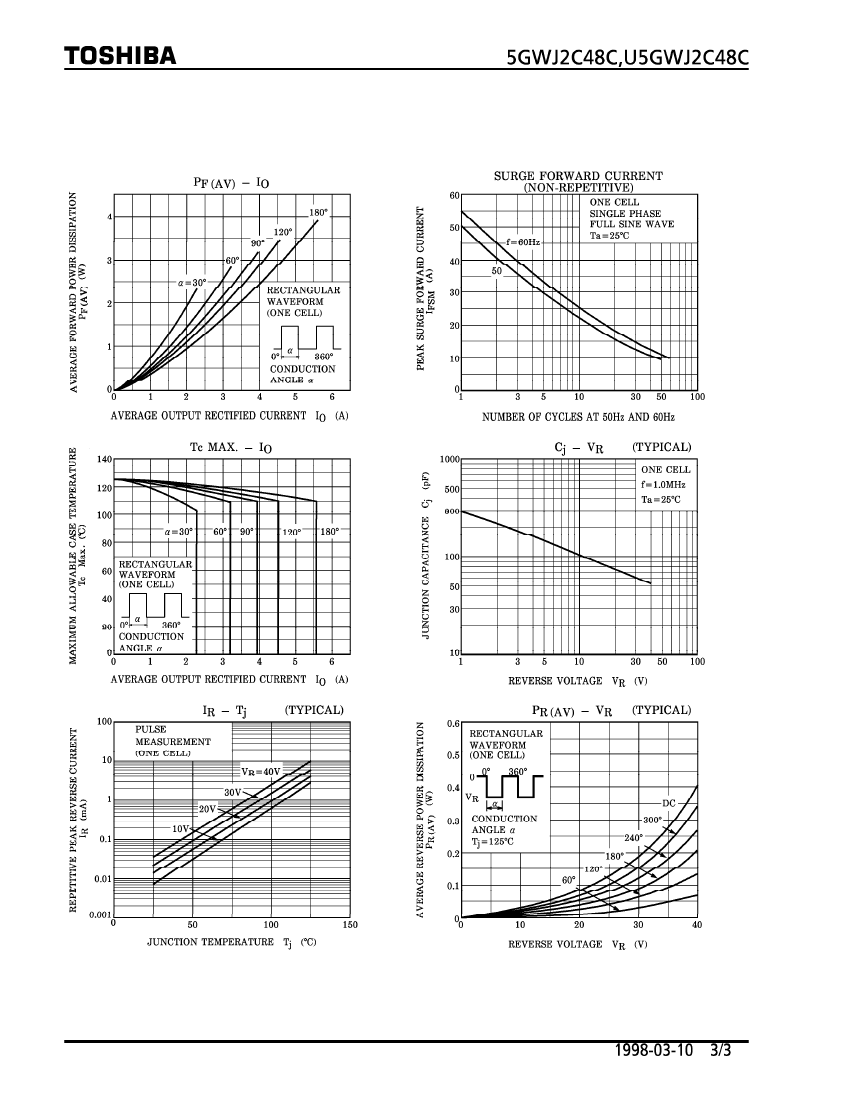

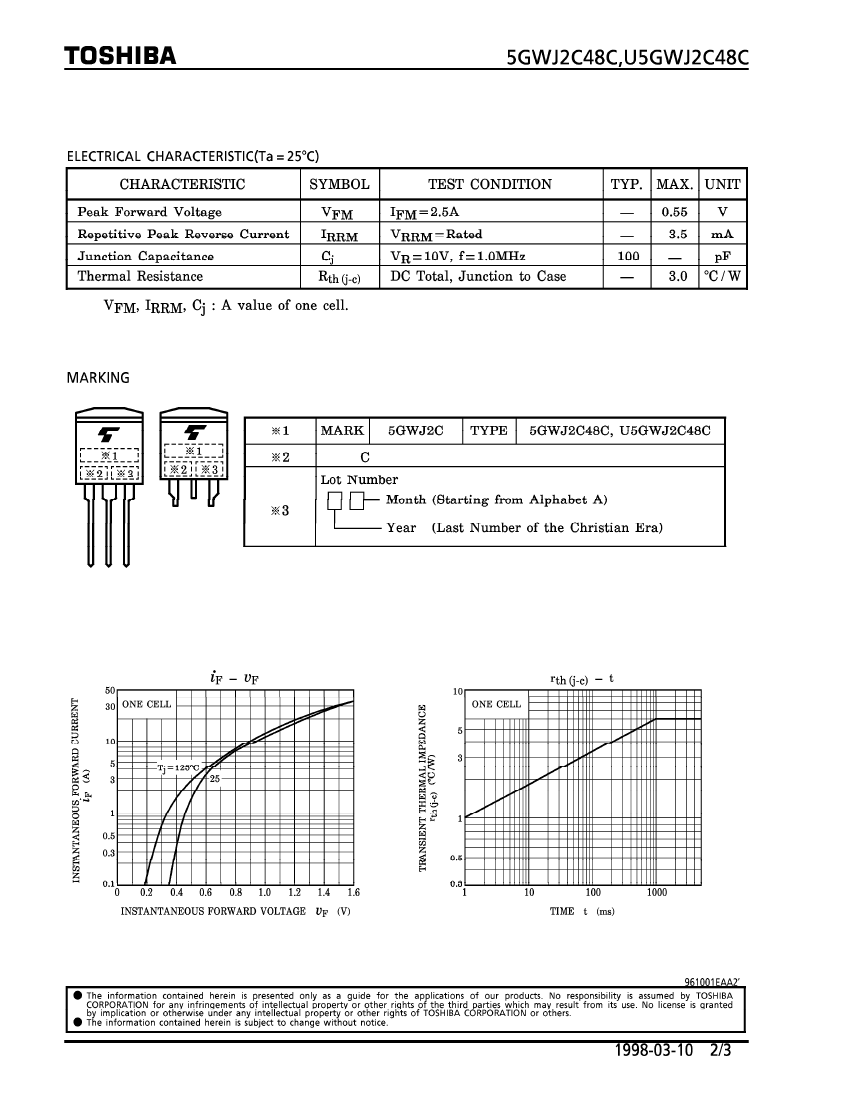

5GWJ2C48C Overview

schottky barrier type (switching type power supply, converter & chopper applications)

5GWJ2C48C Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeSOD
package instruction12-10D1A, 3 PIN
Contacts3
Reach Compliance Codeunknow
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.55 V
JESD-30 codeR-PSIP-T3
Maximum non-repetitive peak forward current55 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum repetitive peak reverse voltage40 V
Maximum reverse current3500 µA
surface mountNO
technologySCHOTTKY
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
