60CTQ...PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 30 A
FEATURES
Base 2
common
cathode
•
•
•
•
•
Anode
TO-220AB
Anode
2
1 Common
3
cathode
150 °C T
J
operation
Pb-free
Center tap TO-220 package
Available
Low forward voltage drop
RoHS*
High frequency operation
COMPLIANT
High purity, high temperature epoxy
encapsulation for enhanced mechanical strength and
moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for industrial level
PRODUCT SUMMARY
I
F(AV)
V
R
2 x 30 A
35 to 45 V
DESCRIPTION
This center tap Schottky rectifier has been optimized for low
reverse leakage at high temperature. The proprietary barrier
technology allows for reliable operation up to 150 °C junction
temperature. Typical applications are in switching power
supplies, converters, freewheeling diodes, and reverse
battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FRM
I
FSM
V
F
T
J
T
C
= 113 °C (per leg)
t
p
= 5 µs sine
30 Apk, T
J
= 125 °C
Range
CHARACTERISTICS
Rectangular waveform (per device)
VALUES
60
35 to 45
60
1500
0.53
- 65 to 150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
60CTQ035PbF
35
60CTQ040PbF
40
60CTQ045PbF
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average
forward current
per leg
per device
SYMBOL
I
F(AV)
I
FRM
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
TEST CONDITIONS
50 % duty cycle at T
C
= 113 °C, rectangular waveform
Rated V
R
, square wave, 20 kHz, T
C
= 113 °C
5 µs sine or 3 µs rect. pulse
Following any rated load
condition and with rated
V
RRM
applied
VALUES
30
60
60
1500
300
20
3
mJ
A
A
UNITS
Peak repetitive forward current per leg
Maximum peak one cycle non-repetitive
surge current per leg
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
T
J
= 25 °C, I
AS
= 3 A, L = 4.40 mH
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94239
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
60CTQ...PbF Series
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
30 A
Maximum forward voltage drop
V
FM (1)
60 A
30 A
60 A
Maximum instantaneous reverse current
Maximum junction capacitance
Typical series inductance
Maximum voltage rate of change
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
I
RM
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
TYP.
0.51
0.66
0.48
0.68
0.33
145
2000
8.0
10 000
MAX.
0.56
0.72
0.53
0.75
2
250
mA
pF
nH
V/µs
V
UNITS
Schottky Rectifier, 2 x 30 A
T
J
= 125 °C
Rated DC voltage
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured from top of terminal to mounting plane
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction temperature range
Maximum storage temperature range
Maximum thermal resistance,
junction to case per leg
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
SYMBOL
T
J
T
Stg
R
thJC
R
thCS
DC operation
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 65 to 150
- 65 to 175
1.2
°C/W
0.50
2
0.07
Non-lubricated threads
6 (5)
12 (10)
g
oz.
kgf · cm
(lbf · in)
UNITS
°C
Mounting torque
60CTQ035
Marking device
Case style TO-220AB
60CTQ040
60CTQ045
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94239
Revision: 13-Aug-08
60CTQ...PbF Series
Schottky Rectifier, 2 x 30 A
Vishay High Power Products
I
F
- Instantaneous Forward Current (A)
1000
1000
I
R
- Reverse Current (mA)
T
J
= 150 °C
100
T
J
= 125 °C
10
T
J
= 75 °C
1
T
J
= 50 °C
T
J
= 100 °C
100
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
0.1
T
J
= 25 °C
0.01
1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0
5
10
15
20
25
30
35
40
45
V
FM
- Forward Voltage Drop (V)

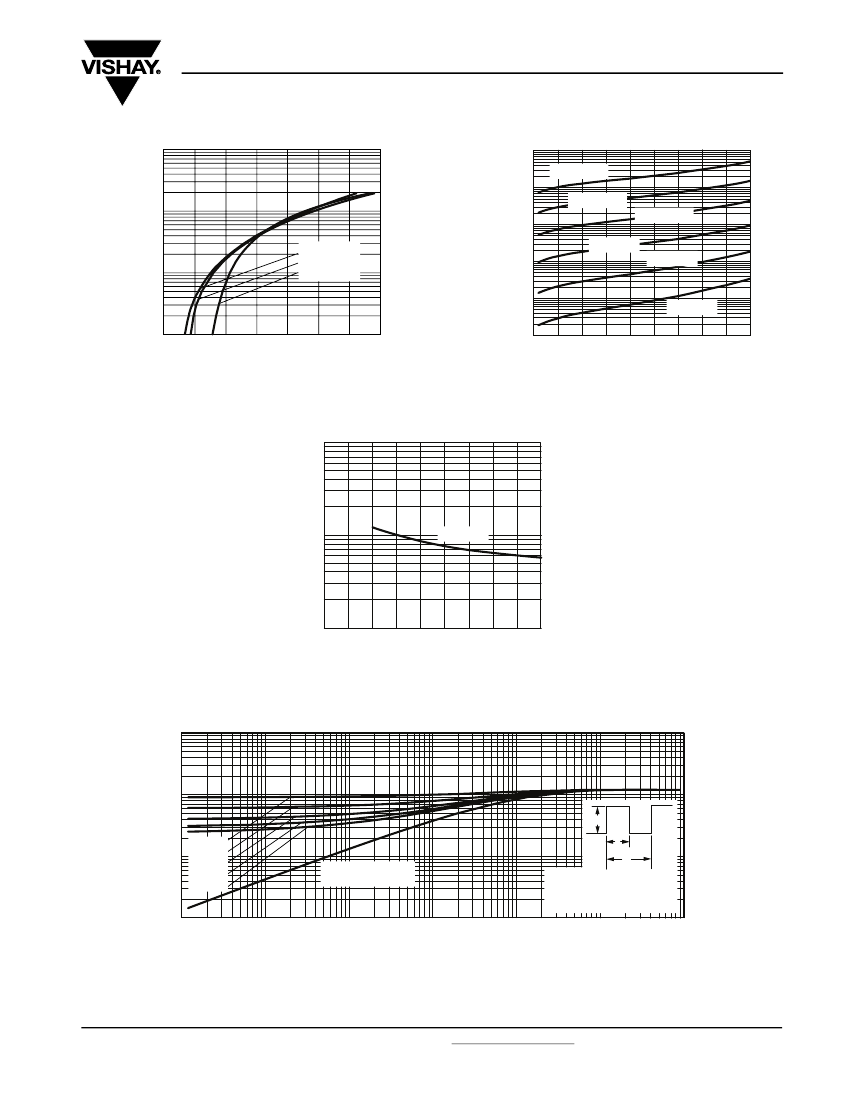

Fig. 1 - Maximum Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
10 000
C
T
- Junction Capacitance (pF)
1000
T
J
= 25 °C
100
0
5
10
15
20
25
30
35
40
45
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
P
DM
0.1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
t
1
t
2
Single pulse
(thermal resistance)
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.1
1
10
0.01
0.00001
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Document Number: 94239
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
60CTQ...PbF Series
Vishay High Power Products
160
Schottky Rectifier, 2 x 30 A
30
Allowable Case Temperature (°C)
150
140
130
120
110
100
90
80
70
60
0
5
10
15
20
25
30
35
40
45
See note (1)
0
0
Square wave (D = 0.50)
80 % rated V
R
applied
DC
Average Power Loss (W)
25
20
15
10
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS limit
DC
5
5
10
15
20
25
30
35
40
45
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
I
FSM
- Non-Repetitive Surge Current (A)
10 000
At any rated load condition
and with rated V
RRM
applied
following surge
1000
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
Note
(1)
Formula used: T = T - (Pd + Pd
C
J
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 80 % rated V
R
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94239
Revision: 13-Aug-08
60CTQ...PbF Series
Schottky Rectifier, 2 x 30 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
60
1
1
2
3
4
5
6
-
-
-
-
-
C
2
T
3
Q
4
045 PbF
5
6
Current rating (60 = 60 A)
Circuit configuration:
C = Common cathode
Package:
T = TO-220
Schottky “Q” series
Voltage ratings
None = Standard production
PbF = Lead (Pb)-free
035 = 35 V
040 = 40 V
045 = 45 V
-
Tube standard pack quantity: 50 pieces
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
http://www.vishay.com/doc?95222
http://www.vishay.com/doc?95225
Document Number: 94239
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
