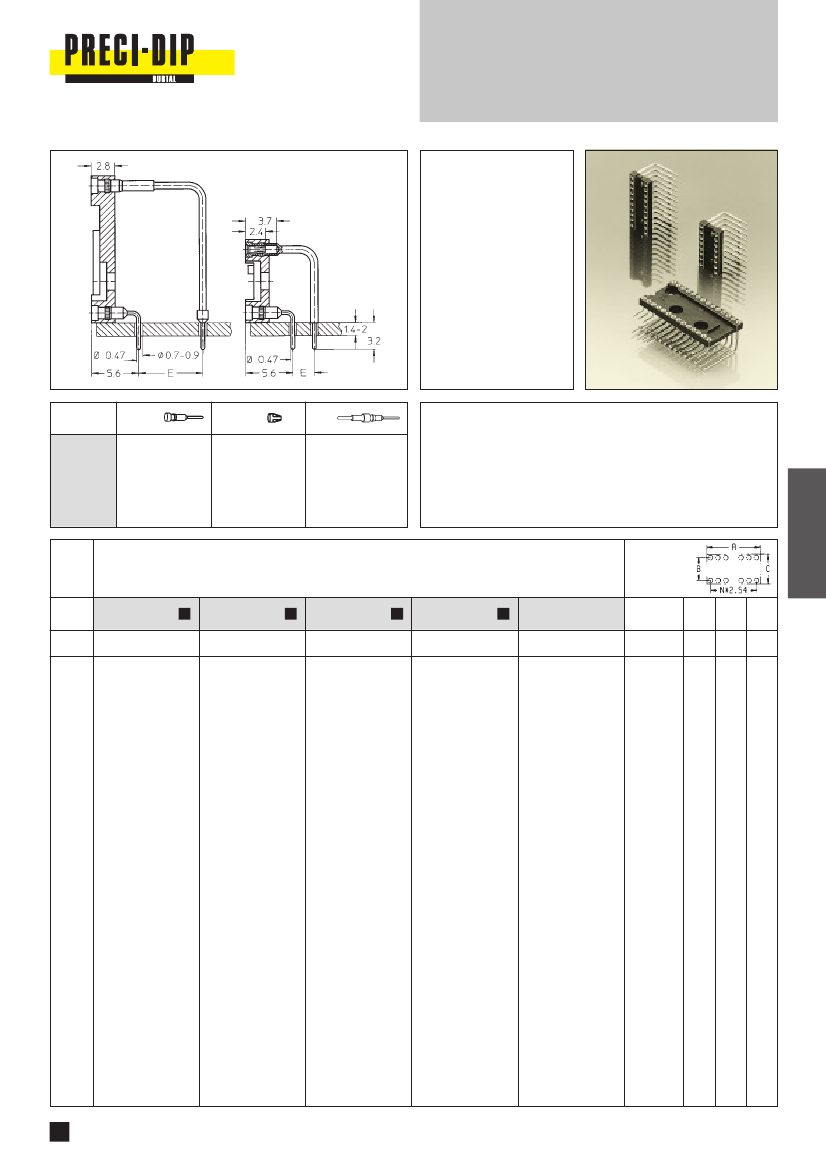

Series 299
Dual-in-line sockets / right angle version
Closed frame
Solder tail
75
Series 299 Dil sockets
with closed frame insula-
tor are designed for com-
ponents to be mounted
perpendicularly to the
PCB, such as LED displays
Right angle solder-tails
are available with either
7.62 mm (standard) or
2.54 mm row spacing
Insertion characteristics:
4-finger standard
Platings
93
91
Sleeve
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.75
µm
Au
0.25
µm
Au
Pin
Ordering information
For complete part number see Order Codes list below
No.
of
poles
Plating 93
B
E = 7.62
6
8
10
12
14
16
18
20
24
8
10
12
14
16
18
20
22
24
26
28
30
32
36
40
299-93-306-10-001
299-93-308-10-001
299-93-310-10-001
299-93-312-10-001
299-93-314-10-001
299-93-316-10-001
299-93-318-10-001
299-93-320-10-001
299-93-324-10-001
299-93-608-10-002
299-93-610-10-002
299-93-612-10-002
299-93-614-10-002
299-93-616-10-002
299-93-618-10-002
299-93-620-10-002
299-93-622-10-002
299-93-624-10-002
299-93-626-10-002
299-93-628-10-002
299-93-630-10-002
299-93-632-10-002
299-93-636-10-002
299-93-640-10-002
Plating 93
B
E = 2.54
299-93-306-11-001
299-93-308-11-001
299-93-310-11-001
299-93-312-11-001
299-93-314-11-001
299-93-316-11-001
299-93-318-11-001
299-93-320-11-001
299-93-324-11-001
Order Codes
Insulator
dimen-
sions
Plating 91
B
E = 2.54
299-91-306-11-001
299-91-308-11-001
299-91-310-11-001
299-91-312-11-001
299-91-314-11-001
299-91-316-11-001
299-91-318-11-001
299-91-320-11-001
299-91-324-11-001
7.6
10.1
12.6
15.2
17.7
20.3
22.8
25.3
30.4
10.1
12.6
15.2
17.7
20.1
22.8
25.3
27.8
30.4
33.0
35.5
38.0
40.6
45.7
50.6
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
See
page 51
A
B
C
Plating 91
B
E = 7.62
299-91-306-10-001
299-91-308-10-001
299-91-310-10-001
299-91-312-10-001
299-91-314-10-001
299-91-316-10-001
299-91-318-10-001
299-91-320-10-001
299-91-324-10-001
299-91-608-10-002
299-91-610-10-002
299-91-612-10-002
299-91-614-10-002
299-91-616-10-002
299-91-618-10-002
299-91-620-10-002
299-91-622-10-002
299-91-624-10-002
299-91-626-10-002
299-91-628-10-002
299-91-630-10-002
299-91-632-10-002
299-91-636-10-002
299-91-640-10-002
B
Products not available from stock. Please consult PRECI-DIP.
