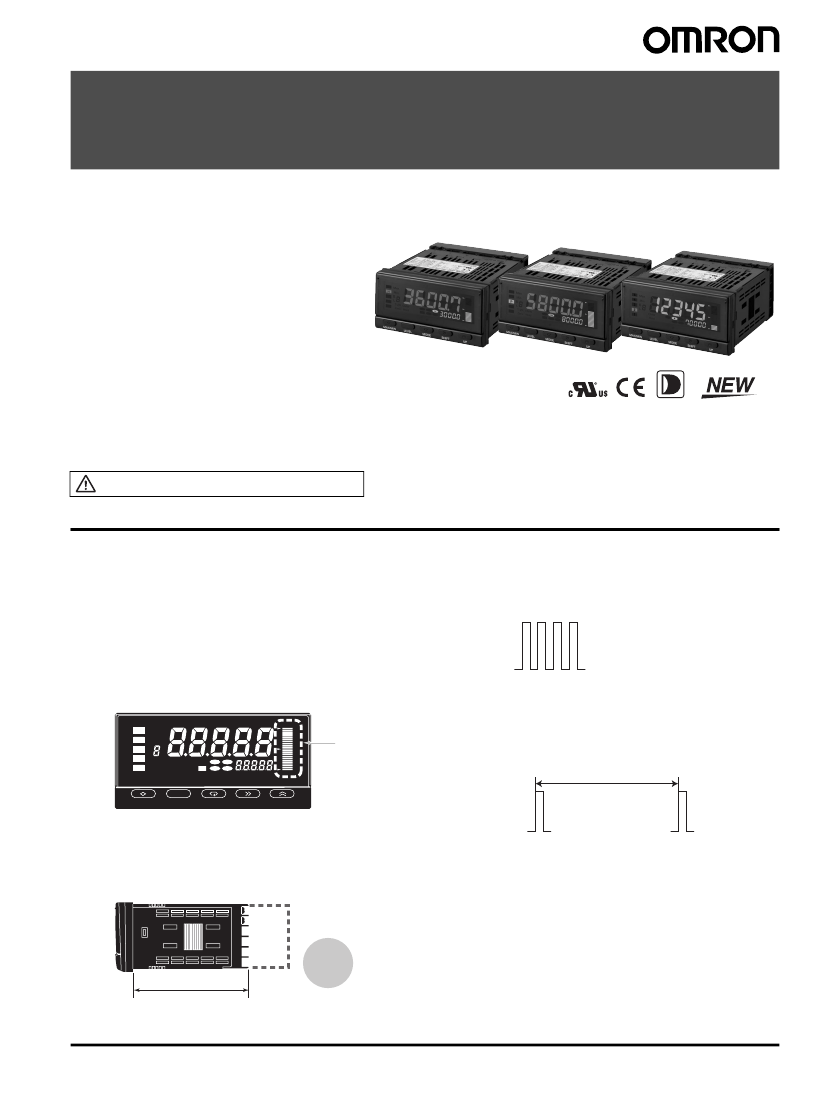

Digital Indicators
K3HB Series (Pulse Input Series)
The K3HB Series has been made complete with
the addition of Digital Signal Input Models.
• Easy recognition of judgment results using two-color
display that can be switched between red and green.
• Equipped with a position meter for monitoring
operating status trends.
• External event inputs allows using various
measurement and discrimination applications.
• Series expanded to include DeviceNet models.
• Short body with depth of only 95 mm (see note)
(from behind the front panel).
• UL certification (Certification Mark License).
• CE Marking conformance by third party assessment
body.
• Water-resistant enclosure conforms to NEMA 4X
(equivalent to IP66).
Note:
Depth of 97 mm for DeviceNet models.
Refer to
Common Precautions
on page 30.
Features
Red-Green Display Allows Easy
Recognition of Judgment Results
The measurement value display can be set to switch between red
and green in accordance with the status of comparative outputs. This
means that the status can be easily seen at a distance.
50 kHz High-speed Pulse Measurement
(K3HB-R)
Supports high-speed pulse measurement (up to 50 kHz) of rotary
encoders or any ON/OFF pulse signal, which enables rotational
measurement of objects rotating at high speeds.
Position Meter Enables Easy Monitoring of
Operating Status Trends
The present value with respect to the measurement or display range
(full scale) can be viewed on a bar display. The operating status can
be grasped intuitively, allowing easy judgment of levels and threshold
values.
HH
H
P
L
LL
50 kHz
Note:
No-voltage contacts of up to 30 Hz are supported.
Max
Min
B
L
CMW
Hold
HH
T
LL
H
L
Measurement of Wide Range of Pulse
Interval Times (K3HB-P)
Measures and displays the results of the pulse interval between two
points. The pulse interval measurement range is broad, from 10 ms
to 3,200 s.
Position meter
MAX/MIN
LEVEL
MODE
SHIFT
UP
10 ms to 3200 s
Note:
This function is different from the single-LED display of the K3HB-C.
Short Body with Depth of Only 95 mm
(from Behind the Front Panel)
A short body of only 95 mm (see note) contributes to the
development of slimmer and smaller control panels and installations.
High-speed Up/Down Counting Pulse
Measurement (K3HB-C)
Perfect for high-speed measurement of rotary encoders or any
ON/OFF pulse signals. Cumulative pulse input is 50 kHz, quadrature
pulse inputs are 25 kHz, and up/down pulse inputs are 30 kHz.
Note:
No-voltage contacts of up to 30 Hz are supported.
Depth:
95
mm
(See note.)
27%
shorter
than earlier
models
(The depth is 100 mm when mounted to the terminal cover.)
Note:
Depth of DeviceNet models is 97 mm.
Digital Indicators
K3HB Series (Pulse Input Series)
1

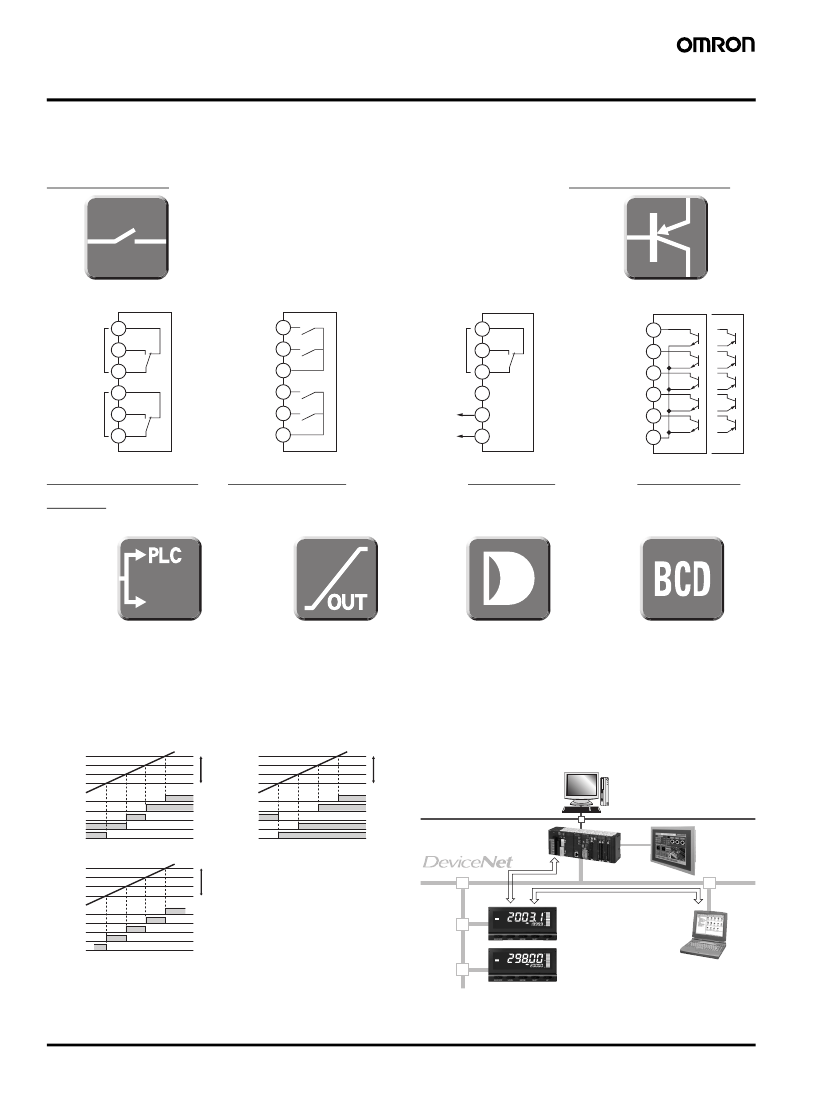

Features
Many I/O Variations for Discrimination, Control, and Information Applications
Digital Indicators are used in a wide variety of applications, from an electronic measurement value display or equipment/device operating status
display to a host communications interface in monitoring and control systems. OMRON provides a complete lineup for a variety of input and control
output applications to meet all your application requirements.
Relay Outputs
Transistor Outputs
H and L: SPDT
C1
H/OUT4
C2
C3
C4
L/OUT2
C5
C6
HH, H, L, and LL: SPST-NO
HH/OUT5 C1
H/OUT4 C2
COM C3
L/OUT2 C4
LL/OUT1 C5
COM C6
PASS: SPDT
B1
PASS/OUT3
B2
B3
N/C B4
(CPB)
10 VDC 100 mA
NPN or PNP
HH/OUT5 C1
H/OUT4 C2
PASS/OUT3 C3
L/OUT2 C4
LL/OUT1 C5
COM C6
NPN
PNP
+
−
(CPA)
12 VDC 80 mA
B5 Sensor
power
B6 supply
Communications
Output
RS-232 or RS-485
RS-232C or
RS-485
Linear Output
Voltage Output or Current Output
DeviceNet
BCD Output
NPN Open Collector
Computer
0 to 20 mA DC/
4 to 20 mA DC
or
0 to 5 VDC/
1 to 5 VDC/
0 to 10 VDC
Select a Comparative Output Pattern to
Suit the Discrimination or Control
Application
•
The output pattern for comparative outputs can be selected. In
addition to high/low comparison with set values, output based on
level changes is also possible. (Use the type of output pattern
appropriate for the application.)
Comparative
set value HH
Comparative
set value H
Comparative
set value L
Comparative
set value LL
Lineup Includes DeviceNet Models
Enabling High-speed Data
Communications with PLCs without
Special Programming
•
DeviceNet compliance enables high-speed data transmission by
allocating setting and monitoring parameters in the I/O memory of
the PLC. This capability greatly reduces labor spent in developing
communications programs.
Standard Outputs
Measurement
Comparative
value
set value HH
Higher
Comparative
Lower
Comparative
set value LL
set value H
Comparative
set value L
Level Outputs
Measurement
value
Higher
Lower
Output HH
Output H
Output PASS
Output L
Output LL
ON
OFF
Output HH
Output H
Output PASS
Output L
Output LL
ON
OFF
Ethernet
DeviceNet
Master
Comparative
set value HH
Comparative
set value H
Comparative
set value L
Comparative
set value LL
Zone Outputs
Measurement
value
Higher
Lower
Output HH
Output H
Output PASS
Output L
Output LL
ON
OFF
P
H
Zero
K3HB
Digital Indicators
Note:
The HH, H, L or LL outputs must be set in that order for the zone
outputs to output correctly.
(This is because the comparative set values and outputs for
standard and level outputs are in a 1-to-1 relationship, whereas
the meaning of zone outputs depends on the settings of all the
comparative set values.)
P
H
Zero
DeviceNet
Configurator
2
Digital Indicators
K3HB
Series (Pulse Input Series)
Note:
The applications provided in this catalog are intended as reference only. Do not attempt to use any of them in real systems without first
confirming machine and device functions and safety. For applications that require safety, ensure that there is sufficient leeway in ratings and
performances, install fail-safe measures, and take any other safety measures required by the application. In addition, contact your nearest
OMRON representative and confirm specifications.

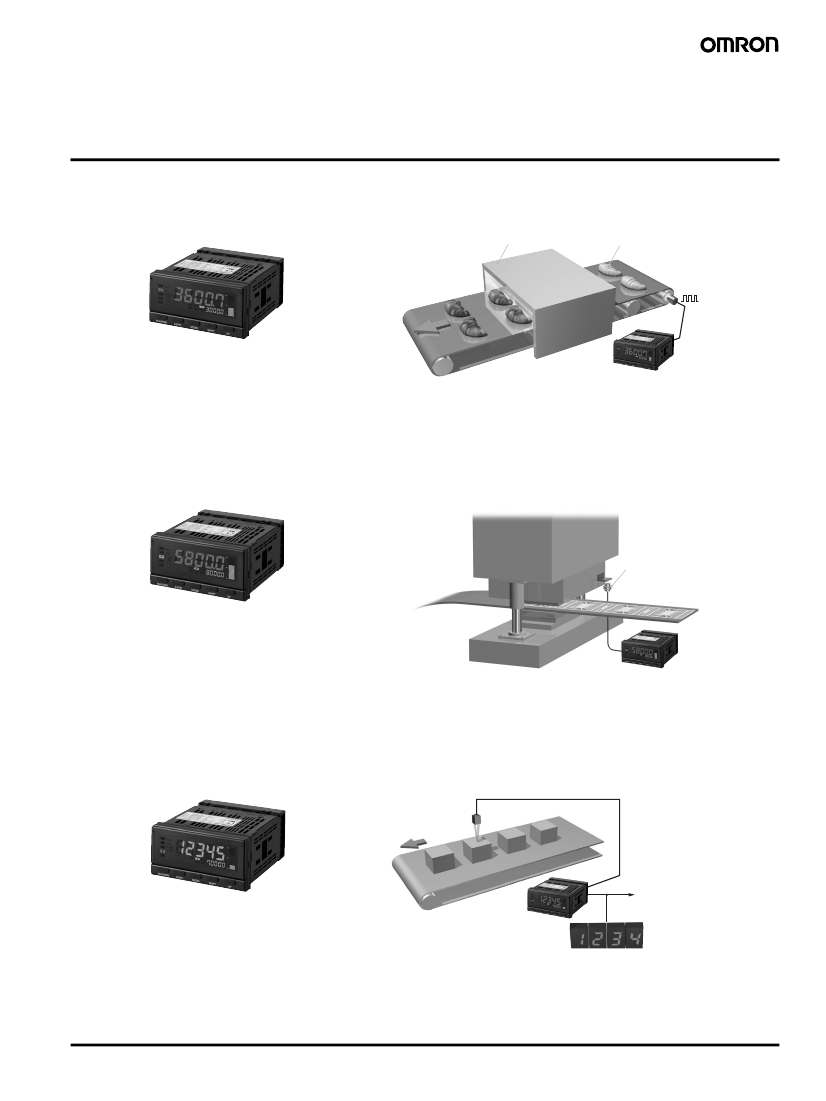

K3HB-series Product Lineup
■
K3HB-R Rotary Pulse Indicator (Page 4)
Performs High-speed Rotation Measurement
and Passing Time Measurement
Displaying Bread Baking Time
Oven
Bread
E6B
Rotary Pulse Input Model: K3HB-R
K3HB-RNB: NPN input/voltage pulse input
K3HB-RPB: PNP input
•
Input types: rpm/circumferential speed, absolute ratio, error ratio,
error, concentration, and passing time
•
Measurement range: 0.5 mHz to 50 kHz
K3HB-R
(F6: Passing time mode)
■
K3HB-P Time Interval Indicator (Page 10)
Measuring Passing Speed between Two
Points and Providing Time Judgments
Measuring Shot Speed
Proximity sensor
Pulse Input Model: K3HB-P
K3HB-PNB: NPN input/voltage pulse input
K3HB-PPB: PNP input
•
Inputs: Passing speed, cycle, time difference, time band, measuring
length, interval
•
Measurement ranges: Functions F1, F3, and F4: 10 ms to 3200 s
Function F2:
20 ms to 3200 s
Functions F5 and F6:
0 to 4 gigacounts
K3HB-P
■
K3HB-C Up/Down Counting Pulse Indicator (Page 15)
Measuring and Monitoring High-speed
Up/Down Pulses
Counting Workpieces
BCD
Up/down Counting Pulse Input Model: K3HB-C
K3HB-CNB: NPN input/voltage pulse input
•
Inputs: Individual inputs (up/down), quadrature inputs
(up/down), cumulative input
•
Response frequency: Individual inputs: 30 kHz, quadrature inputs:
25 kHz, cumulative input: 50 kHz
Note:
No-voltage contacts of up to 30 Hz are supported.
•
Measurement ranges: Functions F1 and F2: ±2 gigacounts
Function F3:
0 to 4 gigacounts
K3HB-C
(F3: Cumulative mode)
To Programmable
Controller
To large display unit
Digital Indicators
K3HB Series (Pulse Input Series)
3
Rotary Pulse Indicator
K3HB-R
Digital Rotary Pulse Meter Capable of 50 kHz
Measurements
• Measures High-speed Pulses at 50 kHz.
Provides high-speed pulse measurements up to 50 kHz of rotary
encoder or ON/OFF pulse signals and can perform rotating
measurement of high-speed rotating objects.
Note:
No-voltage contacts of up to 30 Hz are supported.
• Six Measurement Operations Including Rotation (rpm)/
Circumferential Speed, Ratio, and Cumulative
One Rotary Pulse Meter has 6 rotary pulse measurement functions to
support a variety of pulse measurement applications. Select the best
function for your application from the following: rotation (rpm)/
circumferential speed, absolute ratio, error ratio, error, flow rate ratio,
and passing time.
Refer to
Common Precautions
on page 30.
Model Number Structure
■
Model Number Legend
Base Units and Optional Boards can be ordered individually or as sets.
Base Units
K3HB-R
@
1
5
1. Input Sensor Codes
NB: NPN input/voltage pulse input
PB: PNP input
5. Supply Voltage
100-240 VAC:100 to 240 VAC
24 VAC/VDC: 24 VAC/VDC
Base Units with Optional Boards
K3HB-R@-@@@
1
2 3 4
5
2. Sensor Power Supply/Output Type Codes
None: None
CPA: Relay output (PASS: SPDT) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 1.)
L1A:
Linear current output (DC0(4)-20 mA) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
L2A:
Linear voltage output (DC0(1)-5 V, 0 to 10 V) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
A:
Sensor power supply (12 VDC ±10%, 80 mA)
FLK1A: Communications (RS-232C) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
FLK3A: Communications (RS-485) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
3. Relay/Transistor Output Type Codes
None: None
C1:
Relay contact (H/L: SPDT each)
C2:
Relay contact (HH/H/LL/L: SPST-NO each)
T1:
Transistor (NPN open collector: HH/H/PASS/L/LL)
T2:
Transistor (PNP open collector: HH/H/PASS/L/LL)
BCD: BCD output + transistor output (NPN open collector: HH/H/PASS/L/LL)
DRT: DeviceNet (See note 2.)
4. Event input Type Codes
None: None
1:
5 points (M3 terminal blocks) NPN open collector
2:
8 points (10-pin MIL connector) NPN open collector
3:
5 points (M3 terminal blocks) PNP open collector
4:
8 points (10-pin MIL connector) PNP open collector
Optional Board
Sensor Power Supply/Output Boards
K33-@
2
Relay/Transistor Output Boards
K34-@
3
Event Input Boards
K35-@
4
Note: 1.
CPA can be combined with relay outputs only.
2.
Only one of the following can be used by each Digital Indicator:
RS-232C/RS-485 communications, BCD communications, or DeviceNet communications.
Accessories (Sold Separately)
K32-DICN: Special Cable (for event inputs with 8-pin connector)
K32-BCD: Special BCD Output Cable
4
Rotary Pulse Indicator
K3HB-R
Specifications
■
Ratings
Supply voltage
Allowable power supply voltage
range
Power consumption
(See note 1.)
Current consumption
Input
External power supply
Event inputs
(See note 2.)
Startup compen-
sation timer input
Hold input
Reset input
Bank input
Output ratings Relay output
(depends on
the model)
Transistor output
Linear output
250 VAC, 30 VDC, 5 A (resistive load)
Mechanical life expectancy: 5,000,000 operations, Electrical life expectancy: 100,000 operations
Maximum load voltage: 24 VDC, Maximum load current: 50 mA, Leakage current: 100
µ
A max.
Linear output 0 to 20 mA DC, 4 to 20 mA:
Load: 500
Ω
max, Resolution: Approx. 10,000, Output error: ±0.5% FS
Linear output 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC:
Load: 5 k
Ω
max, Resolution: Approx. 10,000, Output error: ±0.5% FS
(1 V or less: ±0.15 V; not output for 0 V or less)
Negative LCD (backlit LED) display
7-segment digital display (Character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green))
Scaling function, measurement operation selection, averaging, previous average value comparison, output hystere-
sis, output OFF delay, output test, teaching, display value selection, display color selection, key protection, bank se-
lection, display refresh period, maximum/minimum hold, reset
100 to 240 VAC, 24 VAC/VDC, DeviceNet power supply: 24 VDC
85% to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
100 to 240 VAC: 18 VA max. (max. load)
24 VAC/DC: 11 VA/7 W max. (max. load)
DeviceNet power supply: 50 mA max. (24 VDC)
No-voltage contact, voltage pulse, open collector
12 VDC ±10%, 80 mA (models with external power supply only)
NPN open collector or no-voltage contact signal
ON residual voltage: 2 V max.
ON current at 0
Ω
: 4 mA max.
Max. applied voltage: 30 VDC max.
OFF leakage current: 0.1 mA max.
Display method
Main functions
Ambient operating temperature
Ambient operating humidity
Storage temperature
Altitude
Accessories
−
10 to 55
°
C (
with no icing or condensation
)
25% to 85%
−
25 to 65
°
C (
with no icing or condensation
)
2,000 m max.
Watertight packing, 2 fixtures, terminal cover, unit stickers, instruction manual. DeviceNet models also include a De-
viceNet connector (Hirose HR31-5.08P-5SC(01)) and crimp terminals (Hirose HR31-SC-121) (See note 3.)
Note: 1.
DC power supply models require a control power supply capacity of approximately 1 A per Unit when power is turned ON. Particular
attention is required when using two or more DC power supply models. The OMRON S8VS-series DC Power Supply Unit is
recommended.
2.
PNP input types are also available.
3.
For K3HB-series DeviceNet models, use only the DeviceNet Connector included with the product. The crimp terminals provided are for
Thin Cables.
Rotary Pulse Indicator
K3HB-R
5
京公网安备 11010802033920号
EEWORLD
