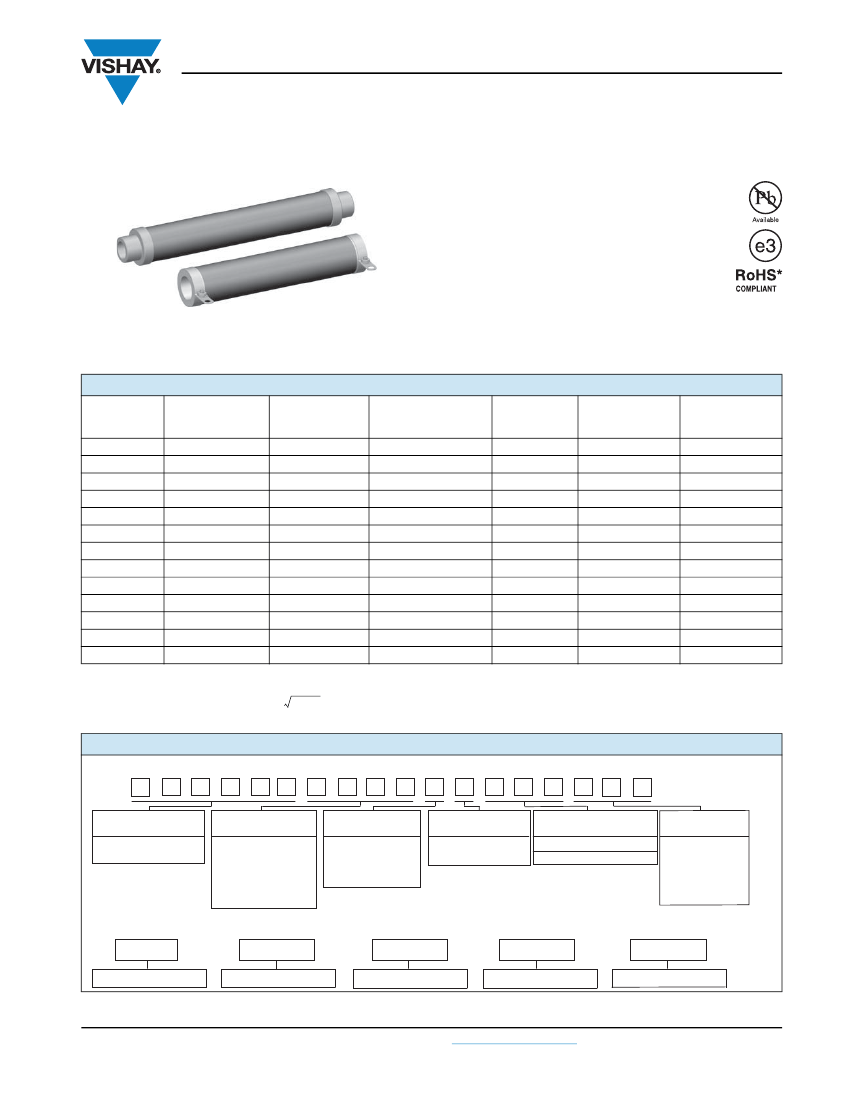

RJU
Vishay Dale
Metal Oxide Resistors, Special Purpose, High Power,
Ultra High Value
FEATURES
• Wattages to 400 W at + 25 °C
•
•
•
•
Derated to 0 at + 230 °C
Voltage testing to 100 kV
Tolerance: ± 1 %; ± 2 %; ± 5 %; ± 10 %
Two terminal styles, style 3 - tab terminal and
style 4 - ferrule terminal
• TCR: ± 200 ppm/°C and ± 100 ppm/°C
available, measured between + 25 °C and + 125 °C
• Coating: Blue flameproof
• Compliant to RoHS Directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
RJU040
RJU050
RJU070
RJU095
RJU095..1
RJU140
RJU140..1
RJU275
RJU275..1
RJU150
RJU150..1
RJU400
RJU400..1
HISTORICAL
MODEL
RJU-40
RJU-50
RJU-70
RJU-95
RJU-95-1
RJU-140
RJU-140-1
RJU-275
RJU-275-1
RJU-150
RJU-150-1
RJU-400
RJU-400-1
POWER RATING MAXIMUM WORKING
P
25 °C
VOLTAGE
(1)
W
V
40
50
70
95
95
140
140
275
275
150
150
400
400
25K
33K
40K
35K
35K
65K
65K
90K
90K
40K
40K
125K
125K
RESISTANCE
RANGE
1K to 1G
1K to 1G
1K to 1G
1K to 1G
1K to 1G
1K to 1G
1K to 1G
100K to 1G
100K to 1G
100K to 1G
100K to 1G
100K to 1G
100K to 1G
TOLERANCE
±%
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
1, 2, 5, 10
TEMPERATURE
COEFFICIENT
± ppm/°C
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
100, 200
Notes
• All resistance values are calibrated at 100 V
DC
. Calibration at other voltages upon request.
(1)
Continuous working voltage shall be
P
x
R
or maximum working voltage, whichever is less.
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: RJU0952M50KKF071 (preferred part numbering format)
R
J
U
0
9
5
2
M
5
0
K
K
F
0
7
1
PACKAGING
SPECIAL
Blank = Standard
(Dash number)
(Up to 3 digits)
From
1 to 999
as applicable
1
= Ferrule terminal
GLOBAL MODEL
(see Standard Electrical
Specification table)
RESISTANCE VALUE
K
= kΩ
M
= MΩ
G
= GΩ
1K00
= 1.0 kΩ
10M0
= 10 MΩ
1G00
= 1.0 GΩ
TOLERANCE CODE
F
=
±
1%
G
=
±
2%
J
=
±
5%
K
=
±
10 %
TEMP. COEFFICIENT
K
= 100 ppm
N
= 200 ppm
E07=
Lead (Pb)-free, foam
F07
=Tin/lead, foam
Historical Part Number: RJU-95-12M50KK (will continue to be accepted)
RJU-95-1
HISTORICAL MODEL
2M50
RESISTANCE VALUE
K
TOLERANCE CODE
K
TEMP. COEFFICIENT
F07
PACKAGING
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 31035
Revision: 09-Mar-11
