HRM-601A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> HRM-601A

HRM-601A: Descriptionnon-reflective terminations (sma type); CategoryWireless rf/communication Radio frequency and microwave; File Size296KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

HRM-601A Overview

non-reflective terminations (sma type)

HRM-601A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
Other features	SMA-F; SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	23.98 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.15

Preview

Download Datasheet

View All

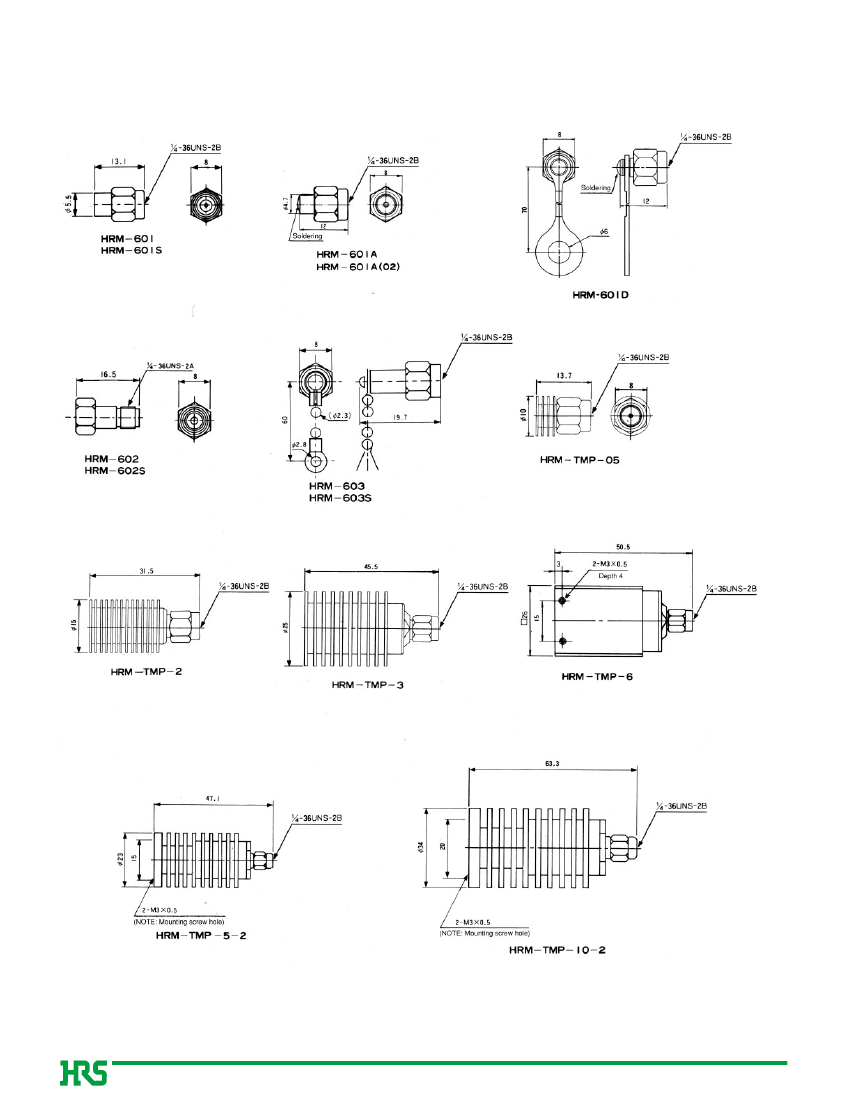

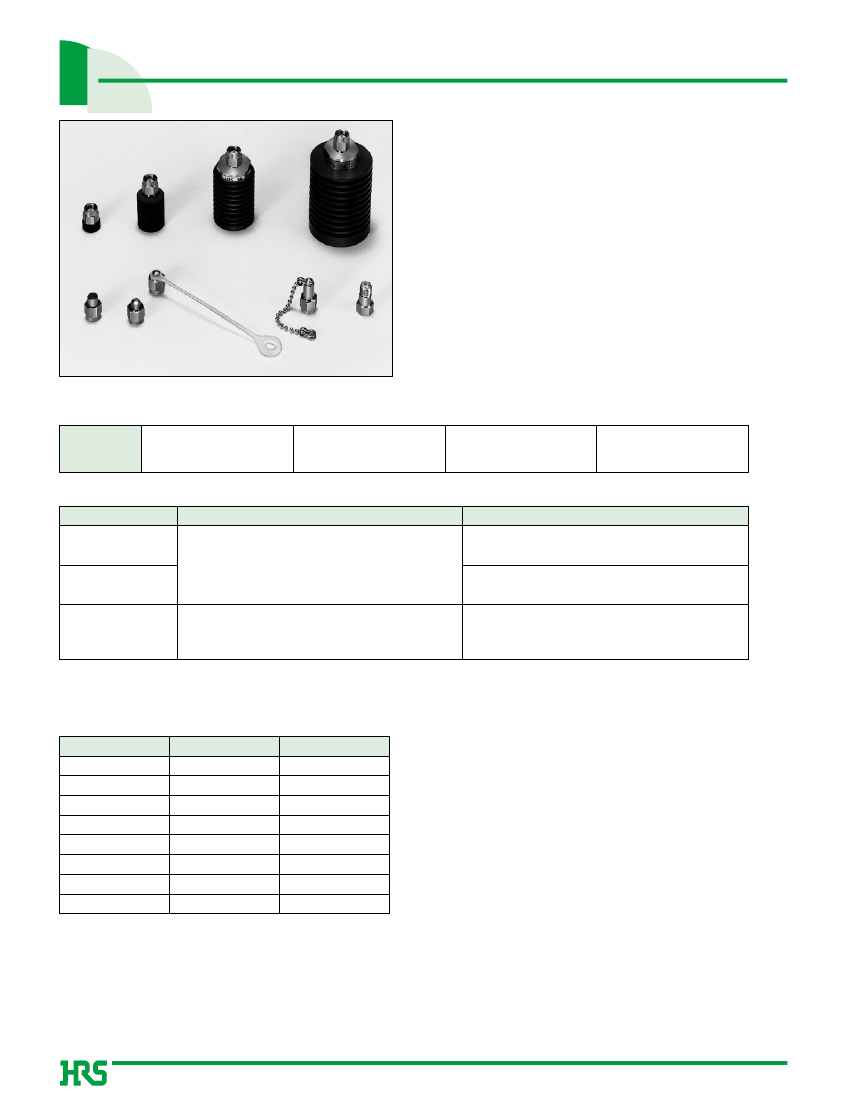

Non-reflective Terminations (SMA Type)

HRM-TM Series

Features

HRM-TMP-2

1.High Performance

These super wide bandwidth/ultra high matching

non-reflective termination use Hirose Electric

original high frequency matching technology.

2.Equipped with SMA Connectors

HRM-TMP-05

HRM-TMP-5-2

HRM-TMP-10-2

HRM-601D

Use of SMA connectors (Hirose Electric HRM

Series) which feature stainless steel for the exterior

cladding make these couplers durable.

HRM-602

HRM-601• HRM-601A(02)

HRM-603

Product Specifications

Ratings

Frequency range (Note)

Characteristic impedance

Maximum Input Power (Note)

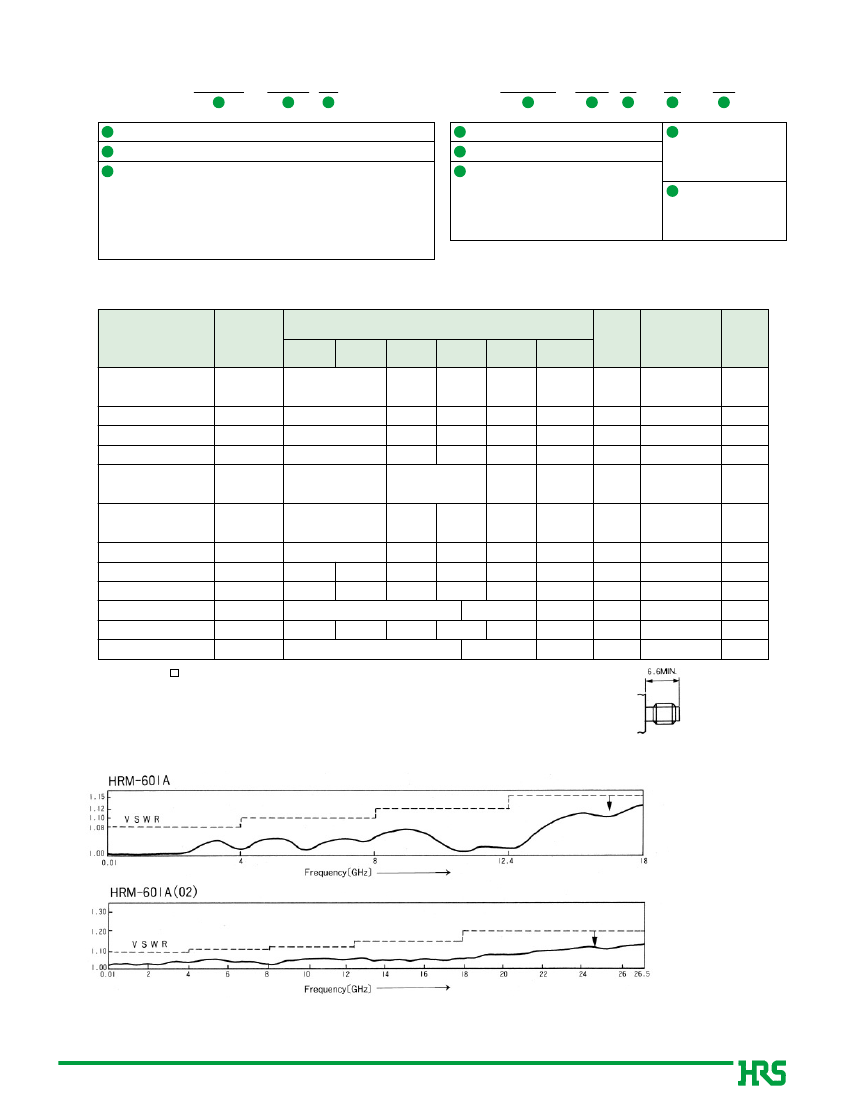

DC to 26.5 GHz

50 ohms

0.25 to 10 W

Operating temperature range

Operating relative humidity

-10ç to +65ç

95% Max.

Note: The frequency range and the maximum input power will differ depending on the products.

Item

1.Vibration

Standard

Conditions

Frequency of 10 to 2000 Hz, overall amplitude of 1.52 mm,

acceleration of 98 m/s

for 2 hours in each of 3 directions

Acceleration of 490 m/s

, sine half-wave waveform, 3

cycles in each of the 3 axis

Temperature: -55ç

+5ç to +35ç

+85ç

+5ç to +35ç

Time: 30

15 max.

15 max. (Minutes)

200 cycles

No electrical discontinuity of 1

s or more

No damage, cracks, or parts dislocation

2.Shock

3.Temperature cycle No damage, cracks, or parts dislocation

qThe

test method conforms to MIL-STD-202.

qPlease

see the specification items for details concerning the VSWR.

Materials

Part

Connector Body (Note)

Insulation

Male contacts

Female contacts

Outer conductor

Coupling (Note)

Radiator

Resistor

Material

Stainless steel

PTFE

Brass

Beryllium copper

Brass

Stainless steel

Aluminum

Metal film

Finish

Nickel plating

----------

Gold plating

Nickel plating

Passivated

Black alumite

----------

Note: The external cladding and coupling of HRM-601, HRM-602,

and HRM-603 have received gold plating processing.

HRM-601A Related Products

	HRM-601A	HRM-601A(02)	HRM-601D
Description	non-reflective terminations (sma type)	non-reflective terminations (sma type)	non-reflective terminations (sma type)
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Hirose	Hirose	Hirose
Reach Compliance Code	unknow	unknow	unknow
Other features	SMA-F; SMA-M	SMA	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	23.98 dBm	23.98 dBm	23.98 dBm
JESD-609 code	e4	e4	e4
Maximum operating frequency	18000 MHz	26500 MHz	26500 MHz
Maximum operating temperature	65 °C	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.15	1.2	1.15
