This document was generated on 04/05/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0879571005
Active
2.50mm (.098") Pitch Header, Right Angle, Through Hole, 5 Circuits, Tin (Sn) Overall
Plating, Tray Packaging, Lead-free
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Product Name
PCB Headers
87957
Board-to-Board, Wire-to-Board
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Yes
5
5
Black
No
No
No
None
None
Brass
Tin
Nickel
Nylon
1
Right Angle
0.146 In
3.71 mm
No
None
0.062 In
1.60 mm
Tray
0.098 In
2.50 mm
0.098 In
2.50 mm
200
5.00
49
1.25
No
No
No
No
Yes
-55°C to +105°C
Through Hole
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87957Series
Mates With
KK® 2.50mm (.098") Crimp Terminal
Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
14
Wave Capable (TH only)
1
265
Material Info
Reference - Drawing Numbers

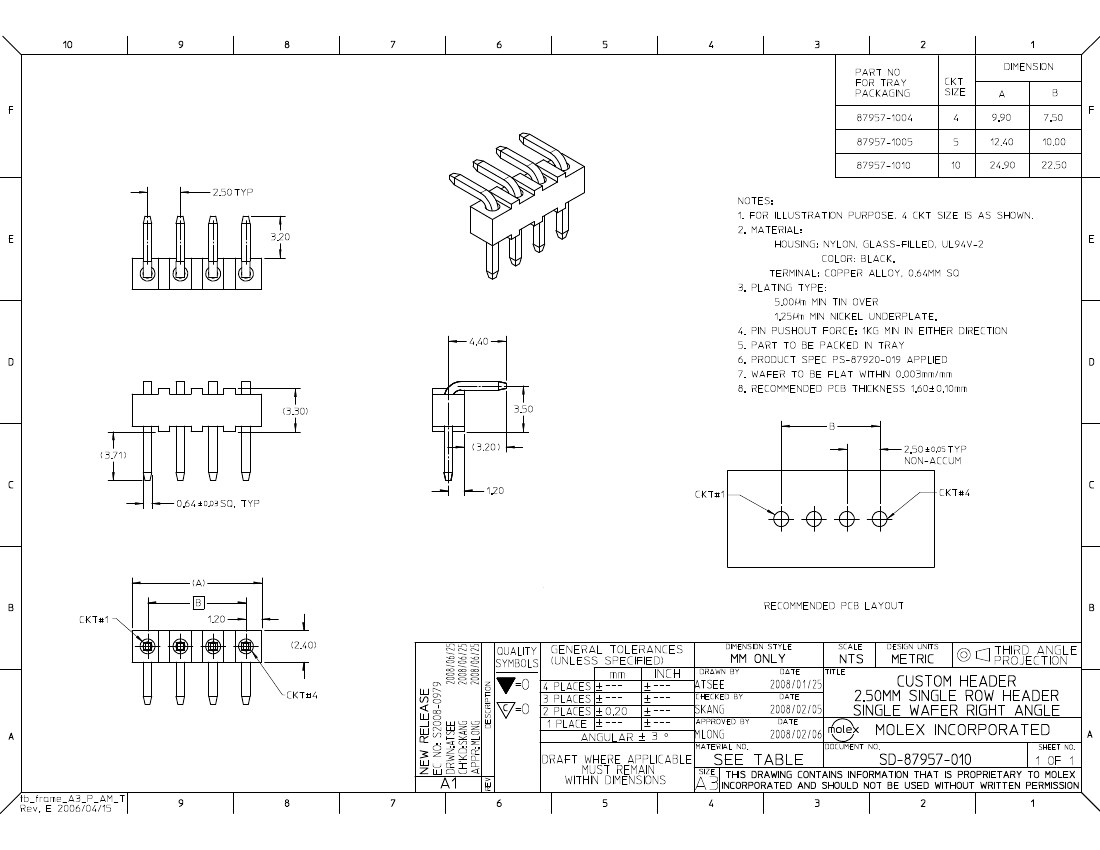

Sales Drawing
SD-87957-010
