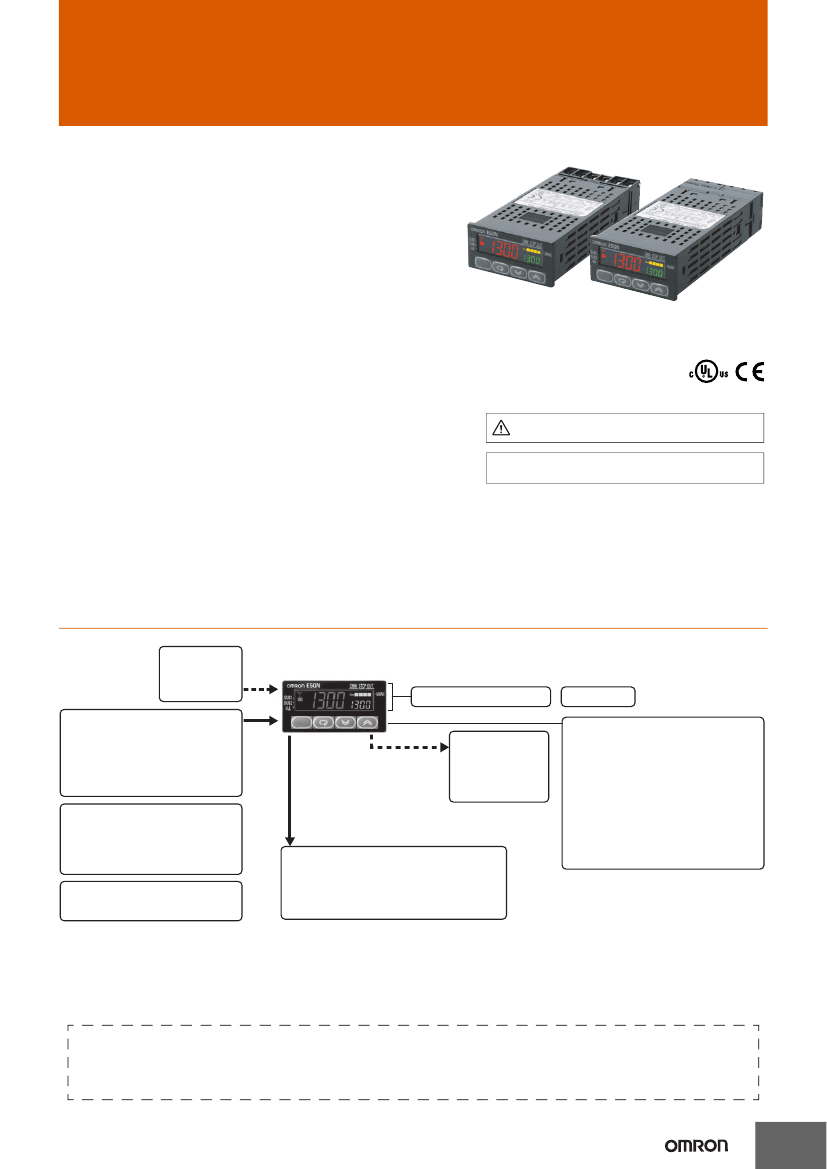

Basic-type Digital Temperature Controller
E5GN
(48 x 24 mm)
CSM_E5GN_DS_E_5_1
New 48 x 24-mm Basic Temperature
Controller with Enhanced Functions and
Performance. Improved Indication
Accuracy and Preventive Maintenance
Function.
• Indication Accuracy
E5GN--@-C
E5GN
Thermocouple input: ±0.3% of PV (previous models: ±0.5%)
Models with Screw Terminal Models with Screwless Clamp
Terminal Blocks
Blocks
Pt input: ±0.2% of PV (previous models: ±0.5%)
48
×
24 mm
48
×
24 mm
Analog input: ±0.2% FS (previous models: ±0.5%)
• Models are available with screw terminal blocks or screwless
clamp terminal blocks.
• A PV/SV-status display function can be set to automatically
Refer to
Safety Precautions for E5
@
N/E5
@
N-H.
alternate between displaying the status of the Temperature
Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV.
Refer to
Operation for E5
@
N/E5
@
N-H
for operating
• Preventive maintenance for relays in the Temperature Controller
procedures.
using a Control Output ON/OFF Counter.
• Switch the PV display between three colors.
• Compatible with Support Software (CX-Thermo version 4.2 or higher).
• Eleven-segment displays.
• Models are available with one or two alarm outputs.
Main I/O Functions
Event Inputs
•
None
• Two
Sensor Inputs
• Universal thermocouple/Pt inputs
(Models
with
temperature inputs)
• Analog current/voltage inputs
(Models
with
analog inputs)
Indication Accuracy
• Thermocouple input:
±0.3%
of PV
• Pt input:
±0.2%
of PV
• Analog input:
±0.2%
FS
Sampling Period
• 250 ms
E5GN
Dual Display: PV and SV
4-digit Display
• Auto/manual switching
• Temperature Controller status display
• Simple program function
• Control output ON/OFF count alarm
• PV change rate alarm
• Models also available
with
RS-232C
communications
• Models also available
with
RS-485
communications
Auxiliary Outputs
•
None
• One
• Two
Control Output 1
• Relay output
•
Voltage
output (for driving SSR)
• Current output
This datasheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156)
E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers Communications Manual Basic Type (Cat. No. H158)
1
E5GN
Lineup
Temperature input
Screw terminal block
Analog input
1 control output
1 control output
0, 1, or 2 auxiliary
outputs
0, 1, or 2 auxiliary
outputs
0, 1, or 2 auxiliary
outputs
0, 1, or 2 auxiliary
outputs
E5GN
Basic Type
Temperature input
Screwless clamp
terminal block
Analog input
1 control output
1 control output
Note:
Models with one control output and one or two auxiliary outputs can be used for heating/cooling control.
Model Number Structure
Model Number Legend
Controllers
4. Input Type
T: Universal thermocouple/platinum resistance thermometer input
L: Analog current/voltage input
5. Power Supply Voltage
Blank: 100 to 240 VAC
D: 24 VAC/VDC
6. Terminal Type
Blank: Models with screw terminal block
C: Models with screwless clamp terminal block
7. Case Color
Blank: Black
E5GN-@@@@@-@-@-@
1 2 3 4 5
6
7
8
1. Control Output 1
R: Relay output
Q: Voltage output (for driving SSR)
C: Linear current output
2. Auxiliary Outputs
Blank: None
1: One output
2: Two outputs
3. Option
8. Communications Protocol
Blank: None
Blank: None
01: RS-232C communications
FLK: CompoWay/F communications
03: RS-485 communications
B: Two event inputs
H: Heater burnout/Heater short/Heater overcurrent detection
(CT1)
Note:
Models cannot be made for all combinations of options that are possible in the model number legend. Confirm model availability in
Ordering
Information
before ordering.
*
Auxiliary outputs are relay outputs that can be used to output alarms or processing results.
2
E5GN
Ordering Information
Controllers with Screw Terminal Blocks
Models with Temperature Inputs
Models with One Control Output and a 100 to 240-VAC Power Supply
Control
output
Control
mode
*1
No. of
auxiliary
outputs
---
Detection of
heater
burnout,
SSR failure,
and heater
overcurrent
Previous model
No. of event
inputs
Transfer
output
*2
Communi-
cations
Thermocou-
ple input
E5GN-RTC
---
---
RS-232C
RS-485
---
Detection for
single-phase
heaters
2
---
Standard
Black
1
Voltage
output (for
driving SSR)
---
---
---
---
2
RS-232C
RS-485
---
Detection for
single-phase
heaters
2
---
---
---
Current
output
Standard or
heating/
cooling
2
1
---
---
Transfer
output using
control
output
RS-485
---
RS-232C
RS-485
---
RS-485
---
---
Resistance
thermome-
ter input
E5GN-RP
---
---
New model
Case color
Standard
---
2
E5GN-RT
E5GN-R1T
E5GN-R1BT
E5GN-
R101T-FLK
E5GN-
R103T-FLK
E5GN-R2T
E5GN-R2HT
E5GN-R2BT
E5GN-
R203T-FLK
E5GN-QT
E5GN-Q1T
E5GN-Q1BT
E5GN-
Q101T-FLK
E5GN-
Q103T-FLK
E5GN-Q2T
E5GN-Q2HT
E5GN-Q2BT
E5GN-
Q203T-FLK
E5GN-C1T
E5GN-C1BT
E5GN-
C101T-FLK
E5GN-
C103T-FLK
E5GN-R1TC E5GN-R1P
1
---
Relay output
Standard or
heating/
cooling
2
E5GN
E5GN
-R03TC-FLK -R03P-FLK
---
---
---
---
---
E5GN-QP
---
---
---
---
---
---
E5GN-QTC
---
E5GN-Q1TC E5GN-Q1P
---
---
Standard or
heating/
cooling
2
E5GN
E5GN
-Q03TC-FLK -Q03P-FLK
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
*1.
If heating/cooling control mode is used, an auxiliary output is used as a control output for the cooling side. The number of auxiliary outputs that
can be used will decrease by one. Also, the signal for the control output for the cooling side will be a relay output.
*2.
A current control output can be used as the transfer output. In that case, an auxiliary output is used as the control output. (This is not possible
for models without an auxiliary output.) The control output will be a relay output. The number of auxiliary outputs that can be used will decrease
by one.
3
E5GN
Models with One Control Output and a 24-VAC/VDC Power Supply
Control
output
Control
mode
*1
No. of
auxiliary
outputs
---
Detection of
heater
burnout,
SSR failure,
and heater
overcurrent
Previous model
No. of event
inputs
Transfer
output
*2
Communi-
cations
Thermocou-
ple input
E5GN-RTC
---
---
RS-232C
RS-485
---
Detection for
single-phase
heaters
2
---
Standard
---
---
---
---
2
Black
1
Voltage
output (for
driving SSR)
---
RS-232C
RS-485
---
Detection for
single-phase
heaters
2
---
---
---
Current
output
Standard or
heating/
cooling
2
1
---
---
Transfer
output using
control
output
RS-485
---
RS-232C
RS-485
---
---
---
---
---
---
---
---
---
---
---
---
---
RS-485
---
---
Resistance
thermome-
ter input
E5GN-RP
---
---
New model
Case color
Standard
---
2
E5GN-RTD
E5GN-R1TD
E5GN-R1BTD
E5GN
-R101TD-FLK
E5GN
-R103TD-FLK
E5GN-R2TD
E5GN-R2HTD
E5GN-R2BTD
E5GN
-R203TD-FLK
E5GN-QTD
E5GN-Q1TD
E5GN-
Q1BTD
E5GN-
Q101TD-FLK
E5GN
-Q103TD-FLK
E5GN-Q2TD
E5GN-
Q2HTD
E5GN-
Q2BTD
E5GN
-Q203TD-FLK
E5GN-C1TD
E5GN-C1BTD
E5GN
-C101TD-FLK
E5GN
-C103TD-FLK
E5GN-R1TC E5GN-R1P
1
---
Relay output
Standard or
heating/
cooling
2
E5GN
E5GN
-R03TC-FLK -R03P-FLK
---
---
---
---
---
E5GN-QP
---
---
---
---
E5GN-QTC
E5GN-Q1TC E5GN-Q1P
---
---
Standard or
heating/
cooling
E5GN
E5GN
-Q03TC-FLK -Q03P-FLK
---
---
---
---
---
---
---
2
*1.
If heating/cooling control mode is used, an auxiliary output is used as a control output for the cooling side. The number of auxiliary outputs that
can be used will decrease by one. Also, the signal for the control output for the cooling side will be a relay output.
*2.
A current control output can be used as the transfer output. In that case, an auxiliary output is used as the control output. (This is not possible
for models without an auxiliary output.) The control output will be a relay output. The number of auxiliary outputs that can be used will decrease
by one.
4
E5GN
Models with Analog Inputs
Models with One Control Output and a 100 to 240-VAC Power Supply
Control
output
Control
mode
*1
No. of
auxiliary
outputs
Detection of
heater
burnout,
SSR failure,
and heater
overcurrent
Previous model
No. of event
inputs
Transfer
output
*2
Communi-
Thermocou-
cations
ple input
Resistance
thermome-
ter input
---
---
New model
Case color
Relay output
Voltage
output (for
driving SSR)
Current
output
---
Standard or
heating/
cooling
1
---
---
Transfer
output using
control
output
---
RS-485
---
---
E5GN-
R103L-FLK
E5GN-
Q103L-FLK
Black
---
---
E5GN-C1L
Note:
Models with analog inputs do not display the temperature unit.
*1.
If heating/cooling control mode is used, an auxiliary output is used as a control output for the cooling side. The number of auxiliary outputs that
can be used will decrease by one. Also, the signal for the control output for the cooling side will be a relay output.
*2.
A current control output can be used as the transfer output. In that case, an auxiliary output is used as the control output. (This is not possible
for models without an auxiliary output.) The control output will be a relay output. The number of auxiliary outputs that can be used will decrease
by one.
Models with One Control Output and a 24-VAC/VDC Power Supply
Control
output
Control
mode
*1
No. of
auxiliary
outputs
Detection of
heater
burnout,
SSR failure,
and heater
overcurrent
Previous model
No. of event
inputs
Transfer
output
*2
Communi-
Thermocou-
cations
ple input
Resistance
thermome-
ter input
---
---
New model
Case color
Relay output
Voltage
output (for
driving SSR)
Current
output
Standard or
heating/
cooling
---
1
---
---
Transfer
output using
control
output
---
RS-485
---
---
E5GN-
R103LD-FLK
E5GN
-Q103LD-FLK
Black
---
---
E5GN-C1LD
*1.
If heating/cooling control mode is used, an auxiliary output is used as a control output for the cooling side. The number of auxiliary outputs that
can be used will decrease by one. Also, the signal for the control output for the cooling side will be a relay output.
*2.
A current control output can be used as the transfer output. In that case, an auxiliary output is used as the control output. (This is not possible
for models without an auxiliary output.) The control output will be a relay output. The number of auxiliary outputs that can be used will decrease
by one.
5
