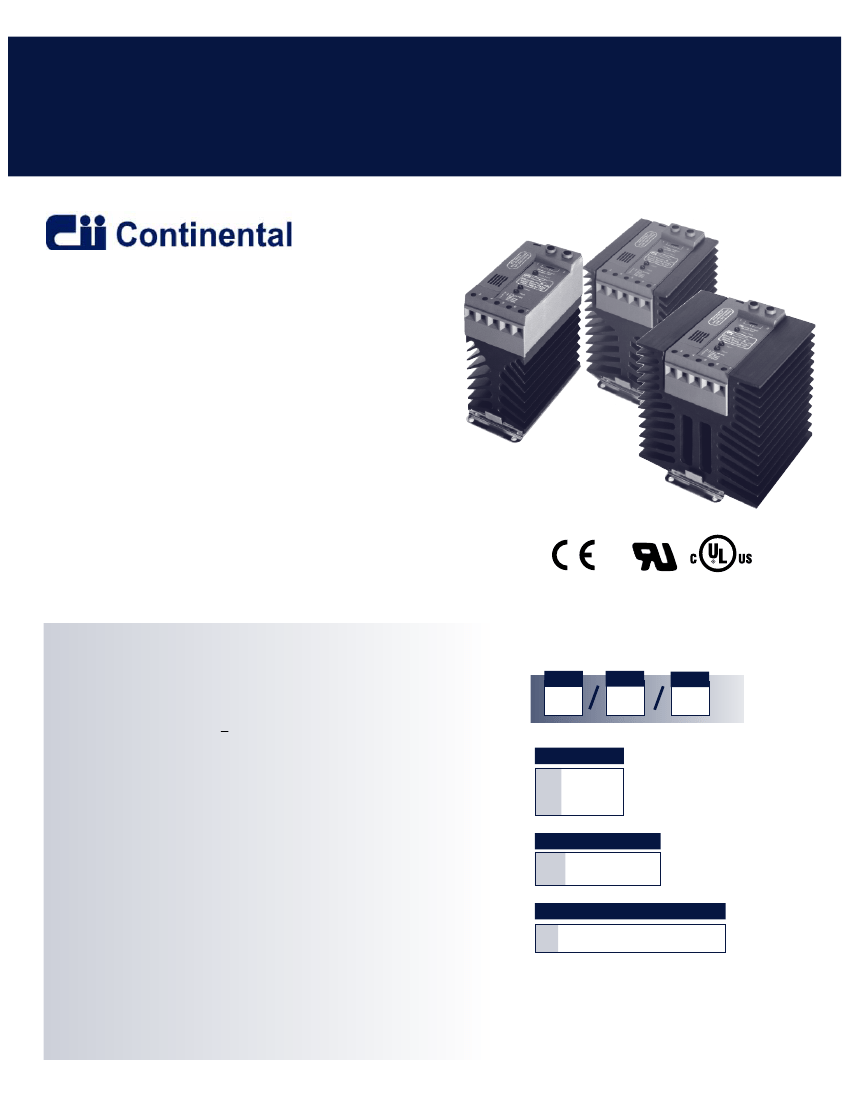

RSxA Series – Solid State Contactor
DIN Rail or Panel Mounted, Single Phase
CONTINENTAL INDUSTRIES INTERNATIONAL
•
•
•
•
•
•
50, 75 or 100 amp rating, 660V max
Integrated heatsink
Mounts on DIN rail or panel
L.E.D. input and fault and fuse indicators
Built-in snubber
Direct copper bonded SCRs
SPECIFICATIONS:
Load type:
Inputs:
DC Input
AC Input
Current ratings:
Voltage ratings:
Peak blocking voltage:
Isurge:
Isurge:
Leakage @ Vout:
Holding current:
Voltage Drop:
Turn on/off(max):
I
2
t rating (A
2
sec):
Dv/Dt:
Frequency:
Ambient:
ON
<
4-28Vdc, 12mA max.
OFF> 1Vdc
ON > 100-280Vac, 18mA max;
OFF
≤≤
20Vac or <2mA, 10kΩ impedance
50A, 75A and 100A
24 - 660V max.
1200V
600 Apeak, 1 cycle non-repetitive
200 Apeak, 1 second non-repetitive
8mA max
50A-50mA, 75A-100mA,100A-100mA
1.3Vac
1/2Hz
50A-7,200, 75A-15,000, 100A-20,000
500V/µS
47-63Hz
40°Cmax, up to 80°C with derating
100
B00
Resistive
ORDERING CODES:
Model
Rating
Options
Model
RSDA
4-28 Vdc input
AC output
RSAA
100-280 Vac
input, AC output
Operating temperature:
0°C to 40°C (up to 80°C with derating)
Rating
660-50
50 amps, 660 volts max
660-75
75 amps, 660 volts max
660100
100 amps, 660 volts max
Options
Standard 50-100 amp model
100 amp model without fuse

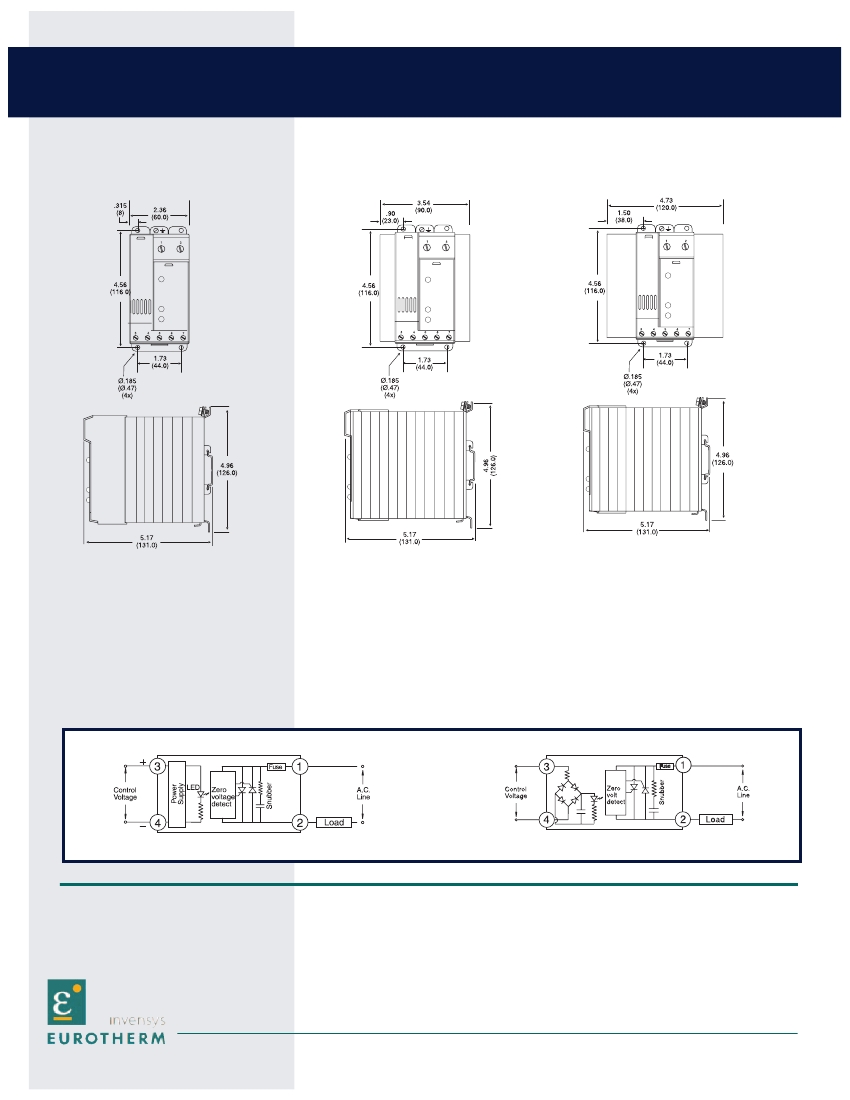

DIMENSIONS
50 Amp
75 Amp
100 Amp
Terminals:
Input:
• Will accept #24-10 AWG wire
• Torque to 7-9 inch lbs.
Output:
• Will accept #8-3 AWG wire
• Torque to 40 inch lbs.
* Standard product features internal fuses.
** The -B00 option substitutes a copper bus bar in place of the internal I
2
T fuse. This
permits the RSAA/RSDA to be operated on higher amperage applications without
concern about fuse de-rating due to heat. Please order the external fuse and fuseblock
as a separate line item. Consult factory regarding the -B00 option.
SCHEMATICS
DC
AC
Rc
LED
For more information contact your local representative:
© Copyright Eurotherm Inc 2004.
All rights strictly reserved. No part of this document may be stored in a
retrieval system of any form or by any means without prior written permission
from Eurotherm Controls Inc. Every effort has been taken to ensure the
accuracy of this specification. However, in order to maintain our technological
lead we are continuously improving our products which could, without notice,
result in amendments or omissions to this specification. We cannot accept
responsibility for damage, injury, loss or expenses resulting therefrom.
Continental Industries International
741-F Miller Drive, Leesburg, VA, 20175, Phone 571 258 2105, Fax 703 669 1357, info@ciicontrols.com, www.ciicontrols.com
HA136739-CII
