DSWC-756 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DSWC-756

DSWC-756: DescriptionTransformer 56.0vc.T. @ 1.00a dual primary; CategoryPower/power management; File Size484KB，3 Pages; ManufacturerStancor

Download Datasheet Parametric Compare View All

DSWC-756 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DSWC-756	-	-	View	Buy Now

DSWC-756 Overview

Transformer 56.0vc.T. @ 1.00a dual primary

DSWC-756 Parametric

Parameter Name	Attribute value
Maker	Stancor
Product Category	transformer
RoHS	transition period
Power rating	56 VA
Primary voltage rating	115 V / 230 V
Secondary voltage rating	56 V
Installation style	Chassis
size	93.68 mm L x 47.63 mm W x 58.75 mm H
product	Power Transformers
high	58.75 mm
length	93.68 mm
Number of outputs	2
Termination type	Quick Connects
type	Dual Side Winde
width	47.63 mm

Preview

Download Datasheet

View All

CHASSiS MOuNT POWER TRANSFORMERS

TransGlobal Transformers

Sty le S

T GC 25, TGC 43

Style NV

TGC80, TGC130, TGC175

quick connect or

solder terminals

quick connect or

solder terminals

Mtg. Slots (4)

Term 1 ref.

Mtg Slots (2)

Term 1 ref.

Primary: 115/230 V, 50/60 Hz

line

load

Style S

Style NV

For 230 V:

connect 2 & 5

For 115 V:

connect 1 & 5, 2 & 6

Series: connect 8 & 11

Parallel: connect 7 & 11, 8 & 12

load

line

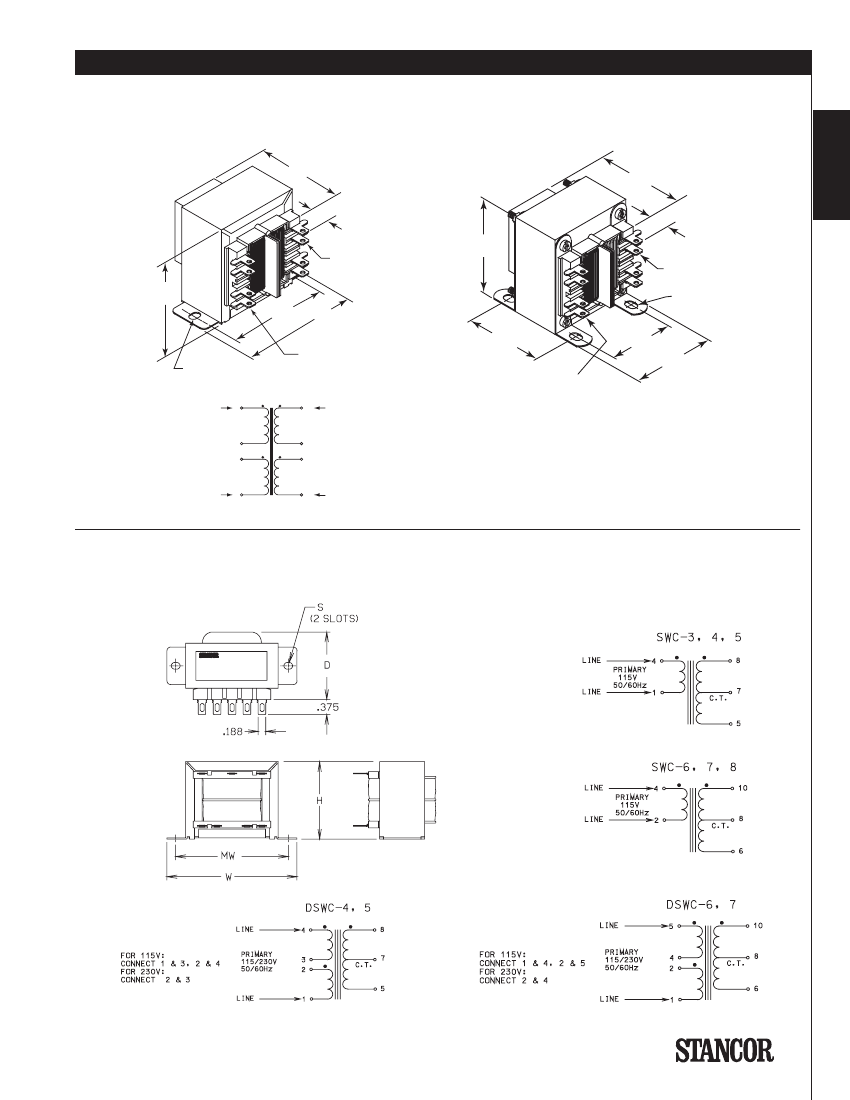

schematic diagram

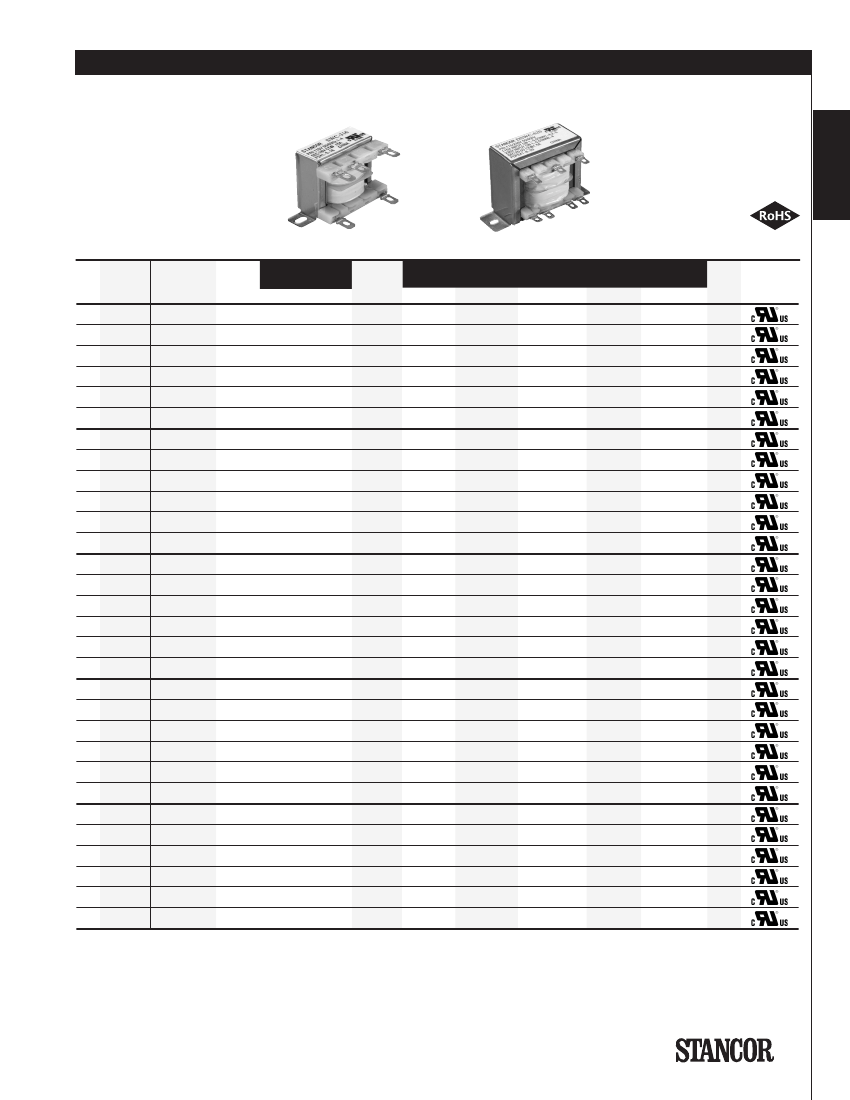

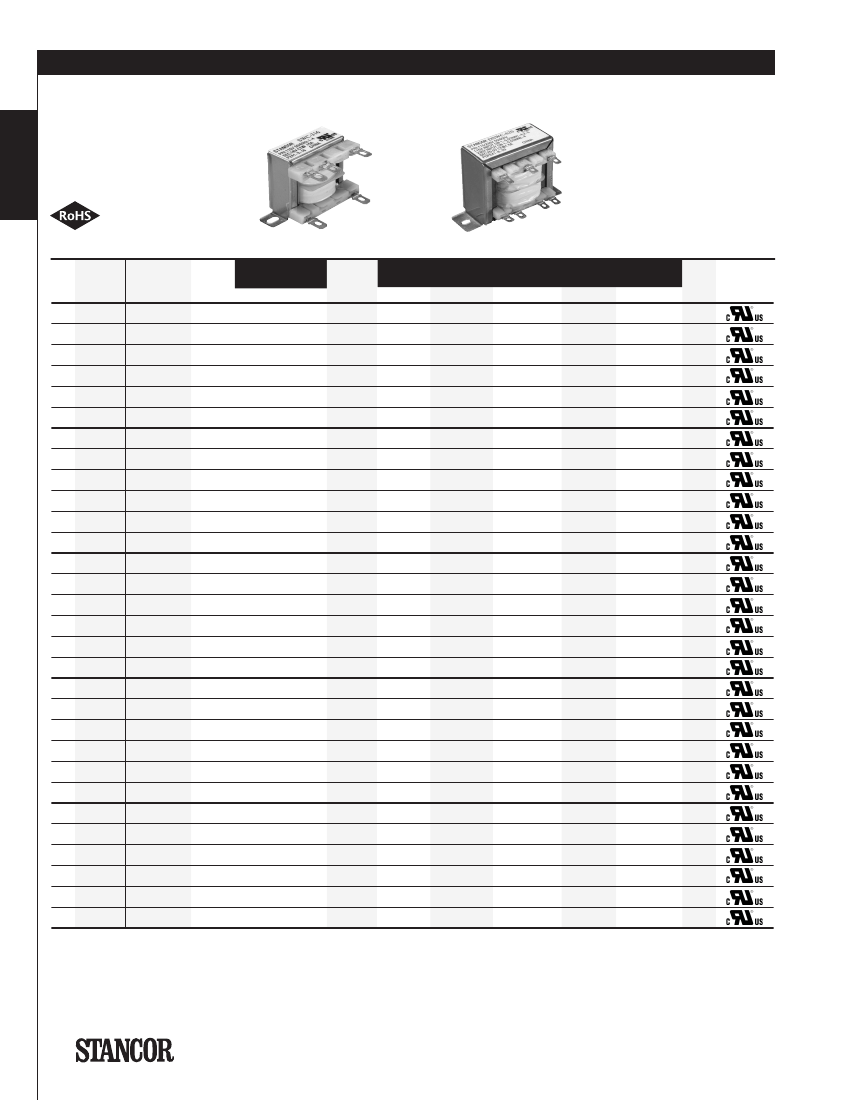

“Side-Winder” Transformers

“ Side- Winder”

SWC/ DSWC S eries

www.stancor.com

DSWC-756 Related Products

	DSWC-756	SWC-812	DSWC-7120	DSWC-748	SWC-836	SWC-548	DSWC-548	SWC-756	SWC-636	SWC-748
Description	Transformer 56.0vc.T. @ 1.00a dual primary	Transformer 12.6vc.T. @ 8.00a single primary	Transformer 120.0vc.T. @ 0.50a dual primary	Transformer 48.0vc.T. @ 1.20a dual primary	Transformer 36.0vc.T. @ 2.80a single primary	Transformer 48.0vc.T. @ 0.25a single primary	Transformer 48.0vc.T. @ 0.25a dual primary	Transformer 56.0vc.T. @ 1.00a single primary	Transformer 36.0vc.T. @ 0.85a single primary	Transformer 48.0vc.T. @ 1.20a single primary
Maker	Stancor	Stancor	Stancor	Stancor	Stancor	Stancor	Stancor	Stancor	-	-
Product Category	transformer	transformer	transformer	transformer	transformer	transformer	transformer	transformer	-	-
RoHS	transition period	yes	transition period	transition period	transition period	transition period	transition period	transition period	-	-
Power rating	56 VA	100 VA	56 VA	56 VA	100 VA	12 VA	12 VA	56 VA	-	-
Primary voltage rating	115 V / 230 V	115 V	115 V / 230 V	115 V / 230 V	115 V	115 V	115 V / 230 V	115 V	-	-
Secondary voltage rating	56 V	12.6 V	120 V	48 V	36 V	48 V	48 V	56 V	-	-
Installation style	Chassis	Chassis	Chassis	Chassis	Chassis	Chassis	Chassis	Chassis	-	-
size	93.68 mm L x 47.63 mm W x 58.75 mm H	102.39 mm L x 57.15 mm W x 66.68 mm H	93.68 mm L x 47.63 mm W x 58.75 mm H	93.68 mm L x 47.63 mm W x 58.75 mm H	102.39 mm L x 57.15 mm W x 66.68 mm H	69.9 mm L x 38.1 mm W x 41.27 mm H	69.9 mm L x 38.1 mm W x 41.28 mm H	93.68 mm L x 47.63 mm W x 58.75 mm H	-	-
product	Power Transformers	Power Transformers	Power Transformers	Power Transformers	Power Transformers	Power Transformers	Power Transformers	Power Transformers	-	-
high	58.75 mm	66.68 mm	58.75 mm	58.75 mm	66.68 mm	41.27 mm	41.28 mm	58.75 mm	-	-
length	93.68 mm	102.39 mm	93.68 mm	93.68 mm	102.39 mm	69.9 mm	69.9 mm	93.68 mm	-	-
Number of outputs	2	1	2	2	1	1	2	1	-	-
Termination type	Quick Connects	Quick Connects	Quick Connects	Quick Connects	Quick Connects	Quick Connects	Quick Connects	Quick Connects	-	-
type	Dual Side Winde	Split Bobbin Transformers	Dual Side Winde	Dual Side Winde	Split Bobbin Transformers	Split Bobbin Transformers	Dual Side Winde	Split Bobbin Transformers	-	-
width	47.63 mm	57.15 mm	47.63 mm	47.63 mm	57.15 mm	38.1 mm	38.1 mm	47.63 mm	-	-
