892-19-002-20-902: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size418KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

892-19-002-20-902 Overview

Board Connector, 2 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

892-19-002-20-902 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (150)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	892
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

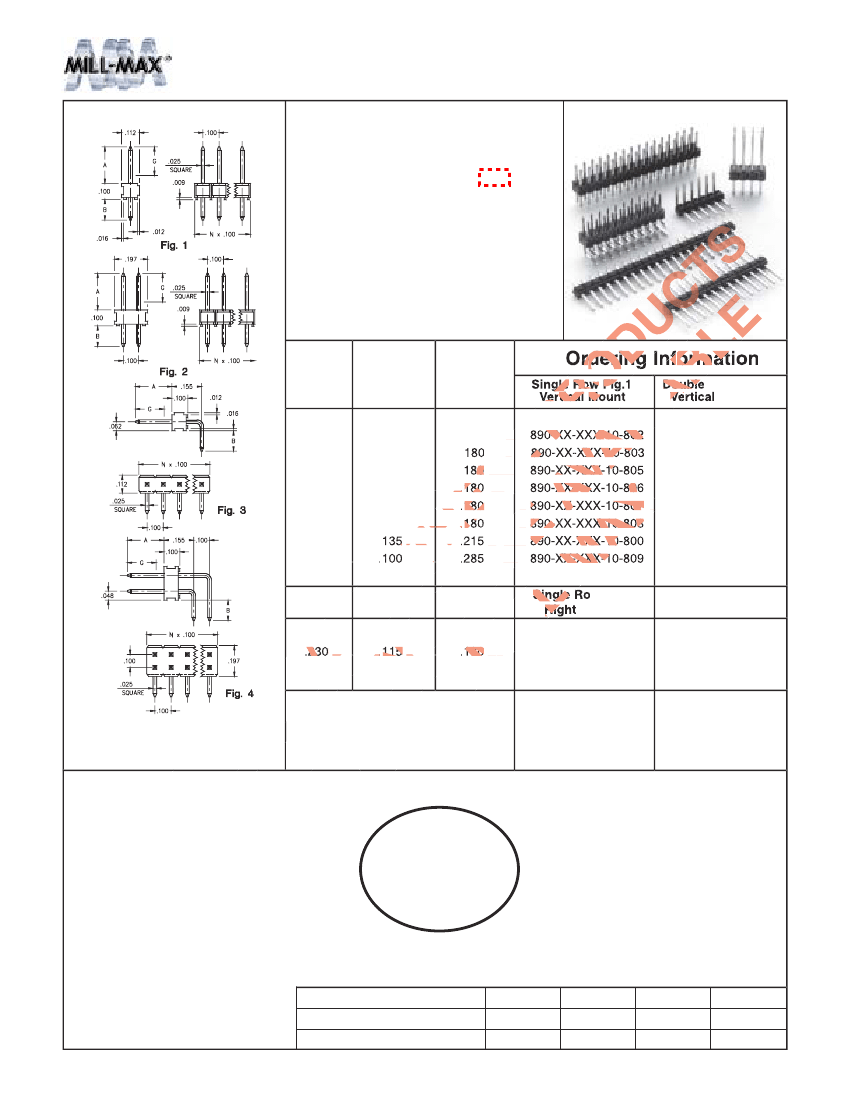

INTERCONNECTS

.025” Square Pin Headers

Single and Double Row

•

Square pin headers may be used

as board-to-board interconnects

using series 801, 803 socket

strips; or as a hardware program-

ming switch with series 999 color

coded jumpers.

Single and double row strips are

available with straight or right

angle solder tails.

Series 890, 892

•

Current rating is 1 amp.

•

Insulator is std. temp.

thermoplastic.

TAIL

LENGTH

LENGTH OF

SELECTIVE

GOLD

W OF

IL 0

L 1/

N 01

FR N

O G

M ER

M B

IL E

L- A

M V

A AI D

X L

LENGTH

rdering

format

min.

gle Row Fig

Vertical Mo

Double

Row Fig.2

Mount

892-XX-XXX-10-802

892-XX-XXX-10-803

892-XX-XXX-10-805

892-XX-XXX-10-806

892-XX-XXX-10-807

892-XX-XXX-10-808

892-XX-XXX-10-800

892-XX-XXX-10-809

.230

.235

.230

.265

.335

.100

.120

.205

.305

.405

.505

.180

180

.18

0-X

X-10-802

XXX-10-80

XX-XXX-10

-XX-XX

890-XX-

0-807

890-X

X-10-808

XXX-10

XX-XXX-1

Single

w Fig.3

Rig

Angle

Double Row Fig.4

Right Angle

892-XX-XXX-20-902

.230

.115

180

890-XX-XXX-20-902

Specify number

of pins XXX:

From 002

036

Specify total

no. of pins XXX:

From 004 (2x2)

072 (2x36)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

150µ” Sn/Pb

Pin (Dim ‘A’)

Tail (Dim ‘B’)

150µ” Sn/Pb 150µ” Sn/Pb 150µ” Sn/Pb

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
