714-91-108-31-008 Overview

pcb connectors carrier assemblies 2.54 mm single row / double row solder tail / press-fit

Preview

Download Datasheet

View All

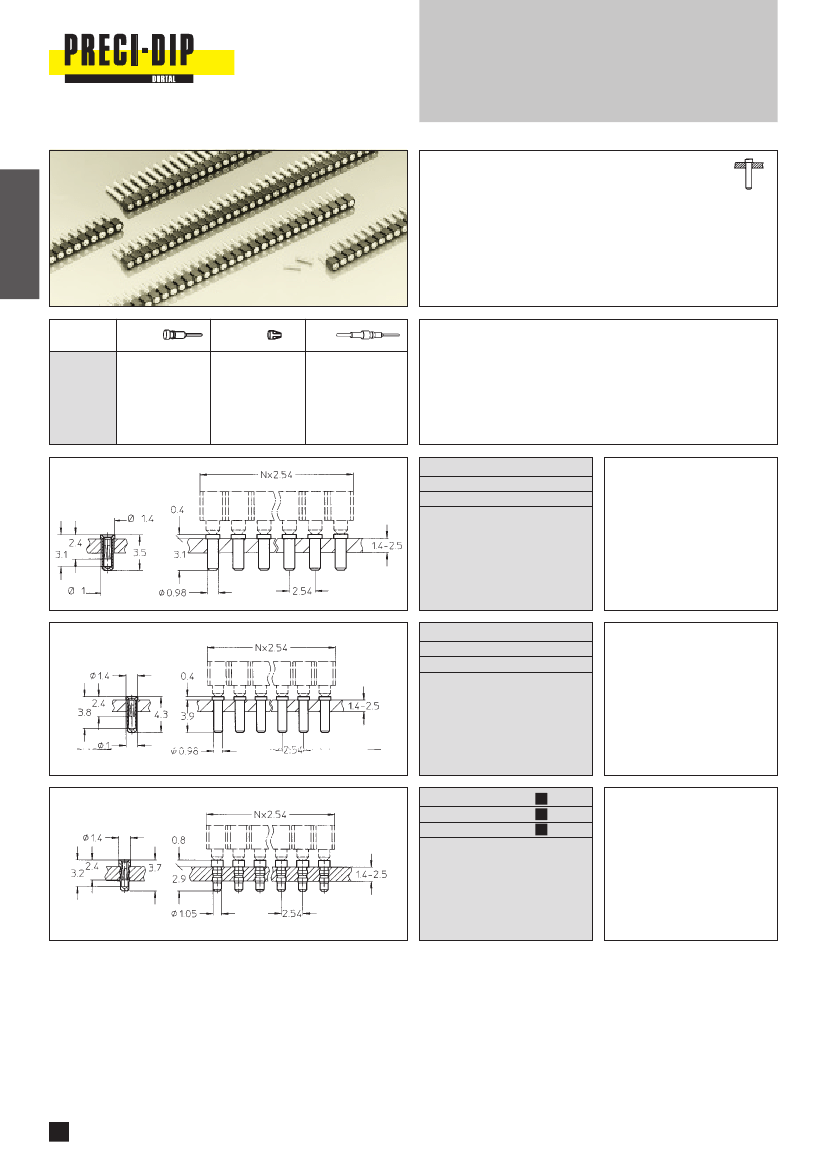

Series 714

PCB connectors carrier assemblies 2.54 mm

Single row / double row

Solder tail / press-fit

PCB “Zero profile” receptacles

Accept pins

∅

0.40–0.54 mm

Single receptacle contacts for solder- and press-fit

solderless mount into PCB, supplied on disposable carriers

For corresponding pin connectors see pages 43 to 46

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

with the number of poles, e.g. 714-91-1xx-31-012

for a single row version with 8 pins per row becomes:

714-91-108-31-012

Option:

Double row, disposable carrier strip on request

714-91-1xx-31-012

714-93-1xx-31-012

714-99-1xx-31-012

Straight receptacle contacts: sol-

der mount into PCB thickness 1

to 2.4 mm with hole

∅

1 mm

Availability: supplied on single

row, disposable carrier strip, from

2 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

714-91-1xx-31-018

714-93-1xx-31-018

714-99-1xx-31-018

Straight receptacle contacts: sol-

der mount into PCB thickness 1

to 3.4 mm with hole

∅

1 mm

Availability: supplied on single

row, disposable carrier strip, from

2 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

714-91-1xx-31-008

714-93-1xx-31-008

714-99-1xx-31-008

Straight receptacle contacts: sol-

derless press-fit mount into PCB

thickness 1.5 to 2.5 mm with

plated-thru hole

∅

1.05 mm

(± 0.05)

Availability: supplied on single

row, disposable carrier strip, from

2 to 64 contacts

Standard number of contacts 5,

6, 8, 10, 14, 16, 20, 21, 25, 30,

32, 48, 56, 60, 64

Products not available from stock. Please consult PRECI-DIP.
