71251-0022 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71251-0022

71251-0022: Descriptionddr3 / ddr2 / ddr connector 05 dimm skt ppeg MK kt ppeg MK Pd-Ni 168; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

71251-0022 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71251-0022	-	-	View	Buy Now

71251-0022 Overview

ddr3 / ddr2 / ddr connector 05 dimm skt ppeg MK kt ppeg MK Pd-Ni 168

71251-0022 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	LATCHED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	71251
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

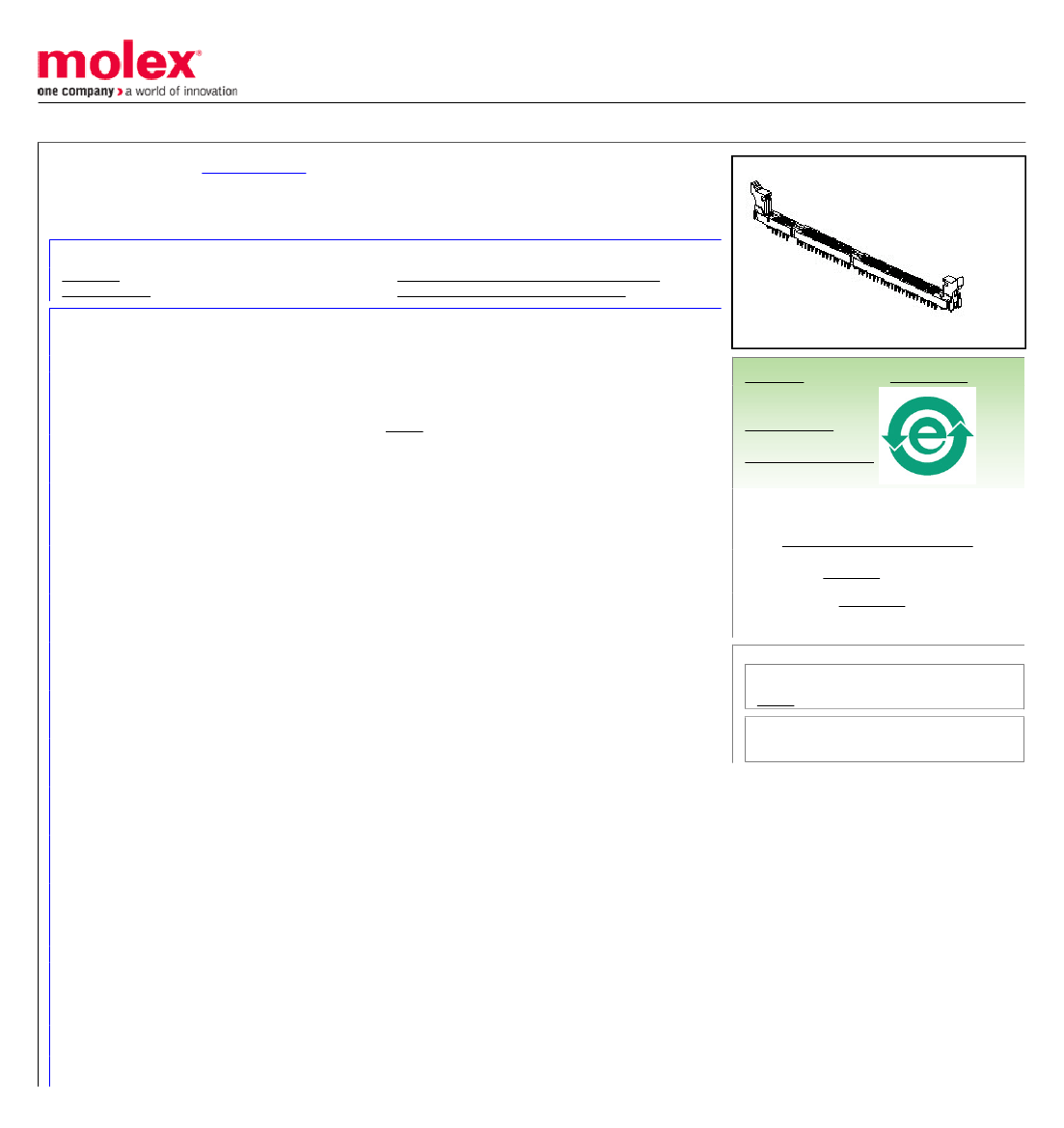

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0712510022

Planned for Obsolescence

1.27mm (.050") Pitch DIMM Socket, Vertical, Multiple Keys, Plastic Peg, 168 Circuits,

3.3V Unbuffered

Documents:

3D Model

Drawing (PDF)

Product Specification PS-71243-9999 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

71251

Function Key Offset Right, Voltage Key Center

Memory Module

MO-161

DIMM

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Function Key

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

168

Black, Natural

Vertical (Top Entry)

94V-0

Offset Right

Yes

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

3.23mm (.127")

Yes

1.57mm (.062")

Tray

1.27mm (.050")

0.051µm (2µ")

3.810µm (150µ")

-40°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

71251Series

Mates With

JEDEC MO-161 modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

100V AC (RMS)/DC

Center

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Reference - Drawing Numbers

Recommended Resources
